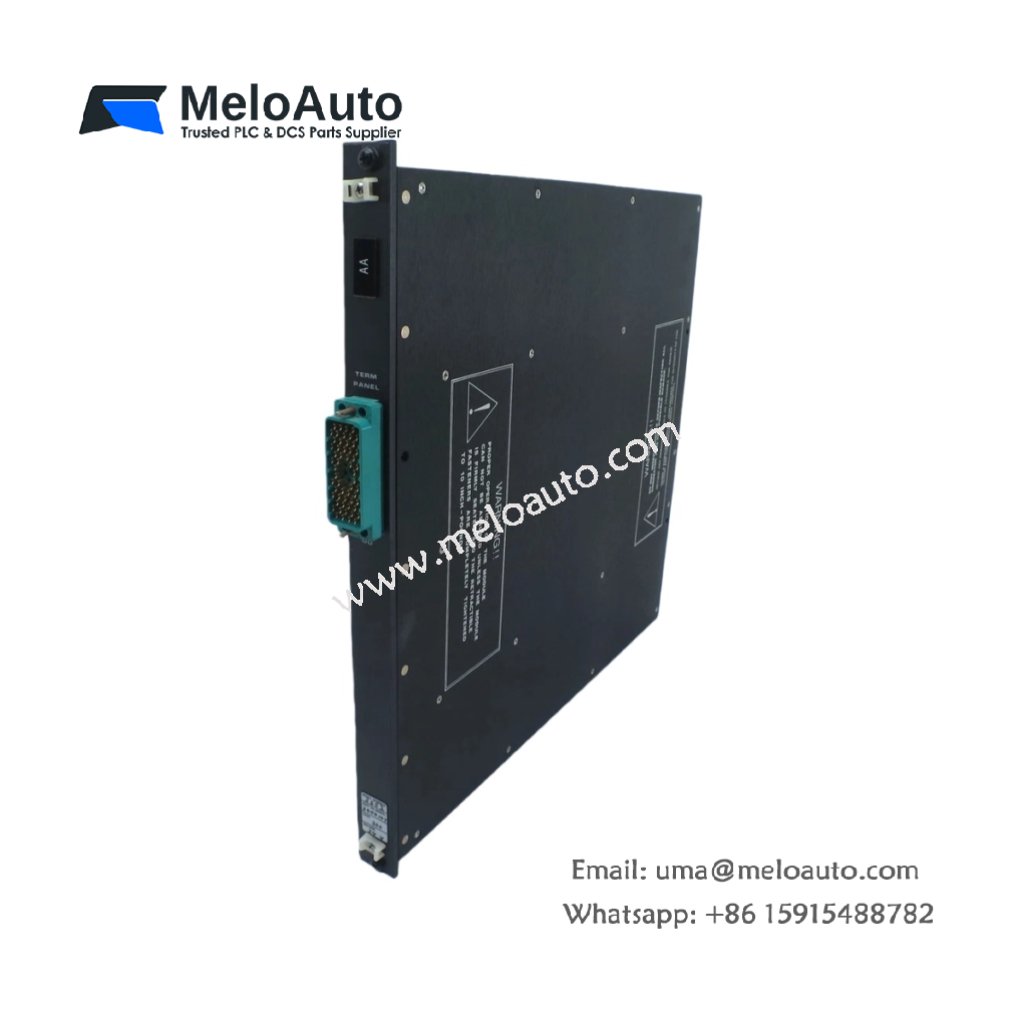

Triconex 2652-300 Analog Input Module Overview

The Triconex 2652-300 Analog Input Module is a vital part of the Triconex process control system, enabling seamless conversion of analog signals into digital data for processing. This module plays a key role in a wide array of safety-critical applications, including process control, safety systems, fire protection, security systems, and transportation. It ensures high reliability and precision, making it ideal for industrial environments that require accurate signal processing.

Key Features

• High Accuracy: The Triconex 2652-300 offers an exceptional 0.1% accuracy, ensuring precise signal conversion even in demanding industrial environments.
• Wide Input Range: This module accepts an input voltage range from -10V to +10V, making it adaptable for various sensor types and applications.
• Fast Sample Rate: With a sample rate of 100 kHz, the Triconex 2652-300 provides real-time signal processing, essential for dynamic control systems.
• High Resolution: It supports 16-bit resolution, offering high-quality data conversion for enhanced system performance and accuracy.
• Low Power Consumption: The module operates efficiently, consuming only 25 W of power, ensuring minimal energy usage in your system.

Physical Specifications

• Compact Design: With dimensions of 8 inches (20.3 cm) x 3.1 inches (7.9 cm) x 1.6 inches (4.1 cm), the Triconex 2652-300 fits easily into standard control racks.
• Lightweight: Weighing just 2.2 pounds (1.0 kg), the module’s light weight facilitates installation and maintenance.

Applications

The Triconex 2652-300 is designed for a wide range of applications that require high reliability and accurate signal processing, such as:

• Process Control: Ensures continuous operation and stability in process industries.
• Safety Systems: Plays a crucial role in protecting people and assets by providing precise signal data.
• Fire Protection: Ensures timely and accurate data transmission for fire detection and alarm systems.
• Security Systems: Vital for real-time data processing in high-security applications.
• Transportation: Used in critical transportation systems for monitoring and control.

Conclusion

The Triconex 2652-300 Analog Input Module offers exceptional accuracy, high-speed signal processing, and low power consumption. With its wide input range and high resolution, it is an essential component for safety-critical industrial applications, ensuring reliable performance and precise data conversion.

Technical Specifications

Brand, Model, Category

• Brand: Triconex
• Model: 2652-300
• Category: Analog Input Module
