Durable Network Interconnection for SIMATIC S5 Systems

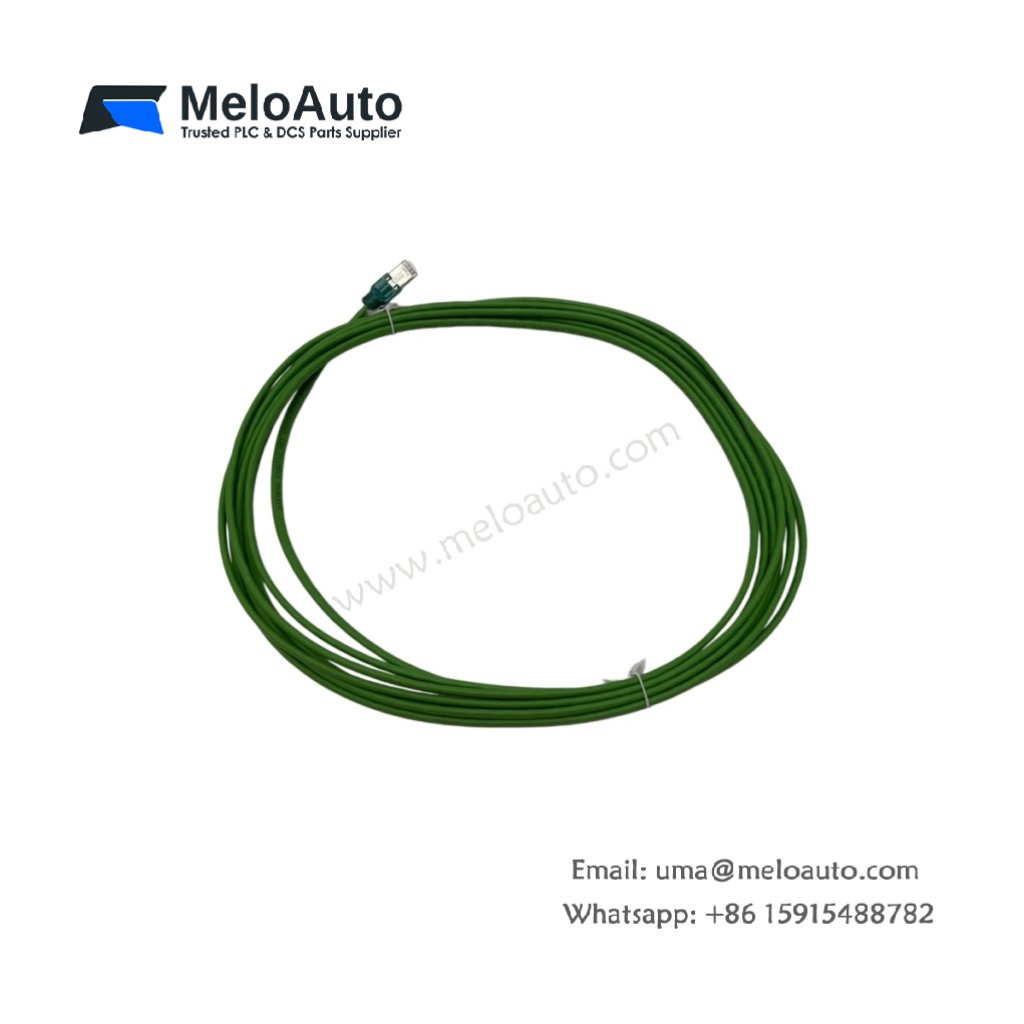

The Siemens 6XV1440-2GH50 connecting cable provides reliable network connectivity between SIMATIC S5 controllers and communication processors. This pre-assembled cable ensures stable data transmission for SINEC L2 and RS-485 networks. It features a shielded design for electromagnetic noise immunity in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6XV1440-2GH50 |
| Series | SIMATIC S5 |
| Product Type | Connecting Cable / Network Cable |
| Cable Length | 50 meters |
| Cable Type | Twisted pair, shielded |
| Conductor Cross-Section | 0.5 mm² (AWG 20) |
| Impedance | 120 ohm |
| Shielding | Braided copper shield with tinned drain wire |
| Outer Jacket | PVC, halogen-free |
| Outer Diameter | Approx. 8.0 mm |
| Connector Type | 15-pin D-Sub (each end) |
| Connector Housing | Metal with strain relief |
| Operating Voltage | 60V DC |
| Operating Temperature | -30°C to +80°C |
| Weight | Approx. 4.0 kg |
Reliable Network Connectivity
The Siemens 6XV1440-2GH50 connects S5 CPUs and communication modules to industrial networks. Its 50-meter length provides ample reach for distributed system installations. The cable supports data rates up to 1.5 Mbps for fast communication.
Robust Shielding and Signal Integrity
The braided copper shield protects data signals from electrical noise and interference. This shielding ensures reliable RS-485 transmission in factory environments. The 120 ohm impedance also matches network specifications for signal integrity.
Durable Construction for Industrial Environments
The halogen-free PVC jacket resists oil, chemicals, and mechanical stress in demanding conditions. This durability ensures long cable life in harsh industrial settings. The metal D-Sub connectors also provide robust mechanical and electrical connections.
Pre-Assembled for Immediate Use
Factory-terminated connectors eliminate the need for field assembly and reduce installation errors. The cable comes ready for use, saving time during system commissioning. This pre-assembled design ensures consistent connection quality across installations.
