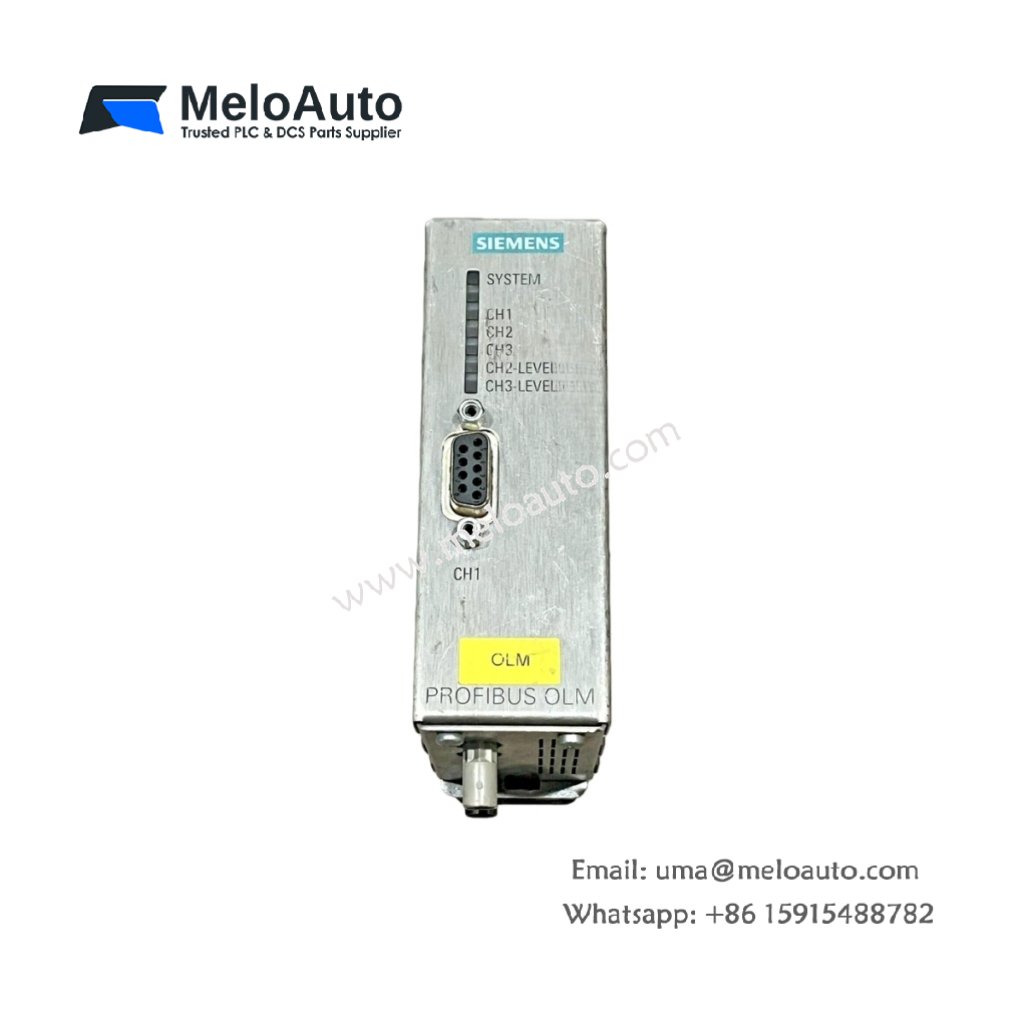

Siemens 6GK1503-2CB00 Optical Link Module

The Siemens 6GK1503-2CB00 PROFIBUS OLM/G11 V4.0 Optical Link Module offers efficient and high-speed data transmission. It connects PROFIBUS networks via optical fiber, ensuring reliable communication even in large or complex industrial systems. Designed for performance, this module supports both PROFIBUS and PROFIBUS PA networks, enhancing flexibility and compatibility across different automation systems.

Key Features

High-Speed Data Transfer: The Siemens 6GK1503-2CB00 offers transfer rates from 9.6 kbit/s to 12 Mbit/s with PROFIBUS and 45.45 kbit/s with PROFIBUS PA, ensuring seamless data flow.
Efficient Power Use: Operating with a 24 V DC supply, it requires only 0.1 A of current, providing an energy-efficient solution for long-term use.
Compact and Lightweight: The module’s dimensions (7.45 cm x 3.95 cm x 11.2 cm) and weight (0.34 kg) make it easy to integrate into various industrial automation setups.
Flexible Integration: This module integrates seamlessly with existing PROFIBUS networks, offering a flexible solution for expanding your automation system.

Siemens 6GK1503-2CB00 Optical Link Module Technical Specifications

Specification	Details
Model	6GK1503-2CB00
Product Type	PROFIBUS OLM/G11 V4.0 Optical Link Module
Transfer Rate (PROFIBUS)	9.6 kbit/s to 12 Mbit/s
Transfer Rate (PROFIBUS PA)	45.45 kbit/s
Operating Voltage	24 V DC
Operating Current	0.1 A
Dimensions (L x W x H)	7.45 cm x 3.95 cm x 11.2 cm
Weight	0.34 kg

Why Choose the Siemens 6GK1503-2CB00 Optical Link Module?

The Siemens 6GK1503-2CB00 offers reliable communication and flexibility in data transfer. It supports a wide range of transfer rates, making it suitable for diverse applications. Moreover, the module’s low current draw and stable operation ensure minimal energy consumption while maintaining optimal performance.

Additionally, its compact design ensures ease of installation, whether you are working with large-scale networks or compact systems. As a result, this module allows for effective integration into any PROFIBUS-based setup.

Applications of the Siemens 6GK1503-2CB00 Optical Link Module

The Siemens 6GK1503-2CB00 is designed for use in environments requiring high-speed, reliable data transmission. It is perfect for long-distance communication within industrial automation systems. Its robust performance and compatibility with PROFIBUS networks make it ideal for applications in process control, automation monitoring, and other industrial network solutions.

Conclusion

In conclusion, the Siemens 6GK1503-2CB00 Optical Link Module ensures superior performance and reliability for PROFIBUS and PROFIBUS PA networks. Its compact size, energy efficiency, and high-speed data transfer capabilities make it the perfect addition to any industrial automation system. With this module, you can count on seamless communication and robust integration into your existing systems.
