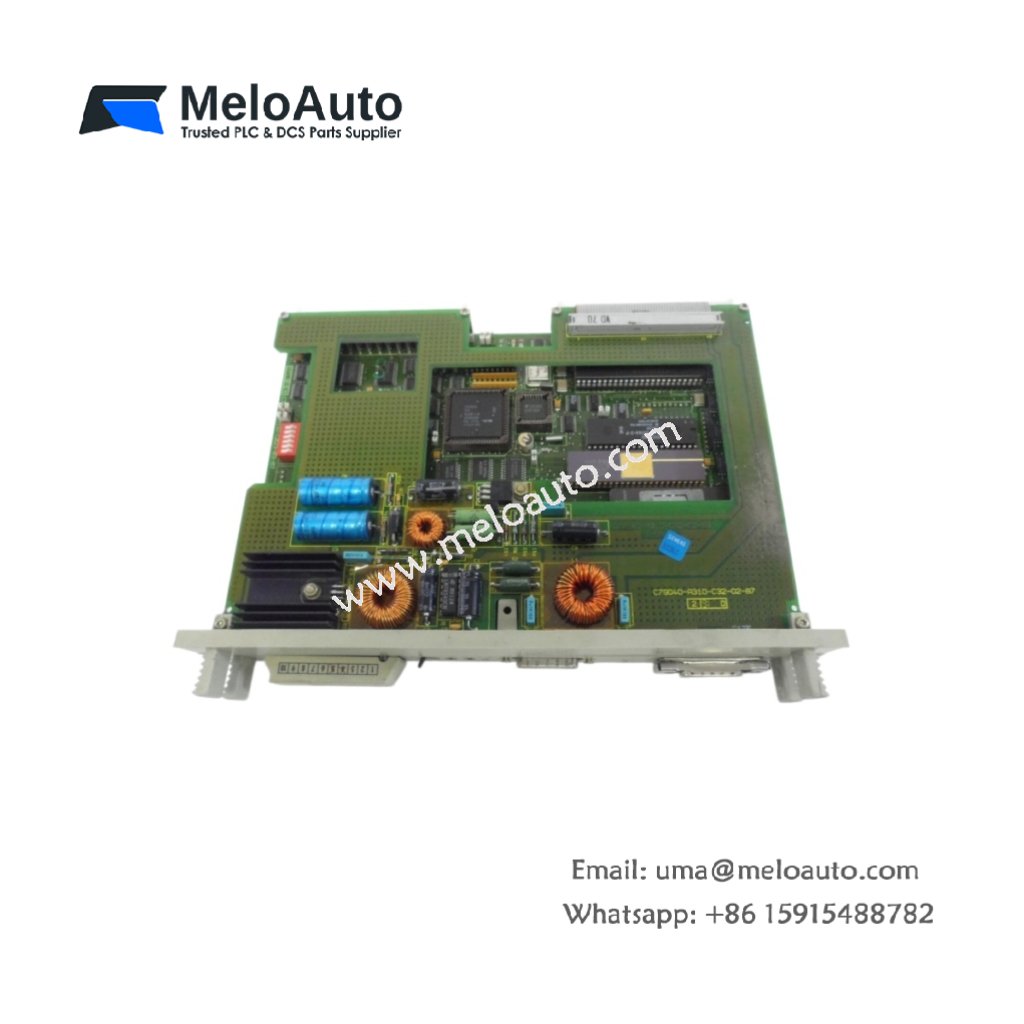

Siemens 6GK1143-0AB01 | SIMATIC S5 Processor Module

Technical Overview of the Communications Processor

The Siemens 6GK1143-0AB01 serves as a dedicated communications processor for the SIMATIC S5 PLC family. This module enables data exchange between the controller and external devices or networks. It handles serial communication protocols efficiently without burdening the CPU. The design integrates a separate processor for handling all communication tasks.

Key Technical Specifications

This section details the precise parameters for the Siemens 6GK1143-0AB01 communications processor. Use these specifications to ensure proper network integration.

Parameter	Specification
Part Number	6GK1143-0AB01
Type	Communications Processor Module
Product Family	SIMATIC S5
Interface	RS232 / RS422 / RS485 (selectable)
Protocol Support	SINEC L1 and L2
Data Transmission	Point-to-point and multi-point
Baud Rate	Up to 187.5 kbps
Isolation	Galvanic isolation for communication ports
Dimensions (W x H x D)	Approx. 250 x 25 x 180 mm
Weight	Approx. 1.0 kg
Compatibility	SIMATIC S5-115U, 135U, and 155U systems

Application and System Integration

This communications processor connects directly to the S5 backplane bus. It manages data exchange with other PLCs, computers, and field devices. The Siemens 6GK1143-0AB01 supports both SINEC L1 and L2 network protocols. Its multi-point capability enables networking of multiple controllers. Consequently, engineers can implement distributed automation architectures efficiently.

Reliability and Performance Features

The onboard processor offloads communication tasks from the main CPU. This dedicated design improves overall system response time significantly. The galvanic isolation protects against ground loops and electrical noise. Users rely on the Siemens 6GK1143-0AB01 for robust data exchange in industrial networks.
