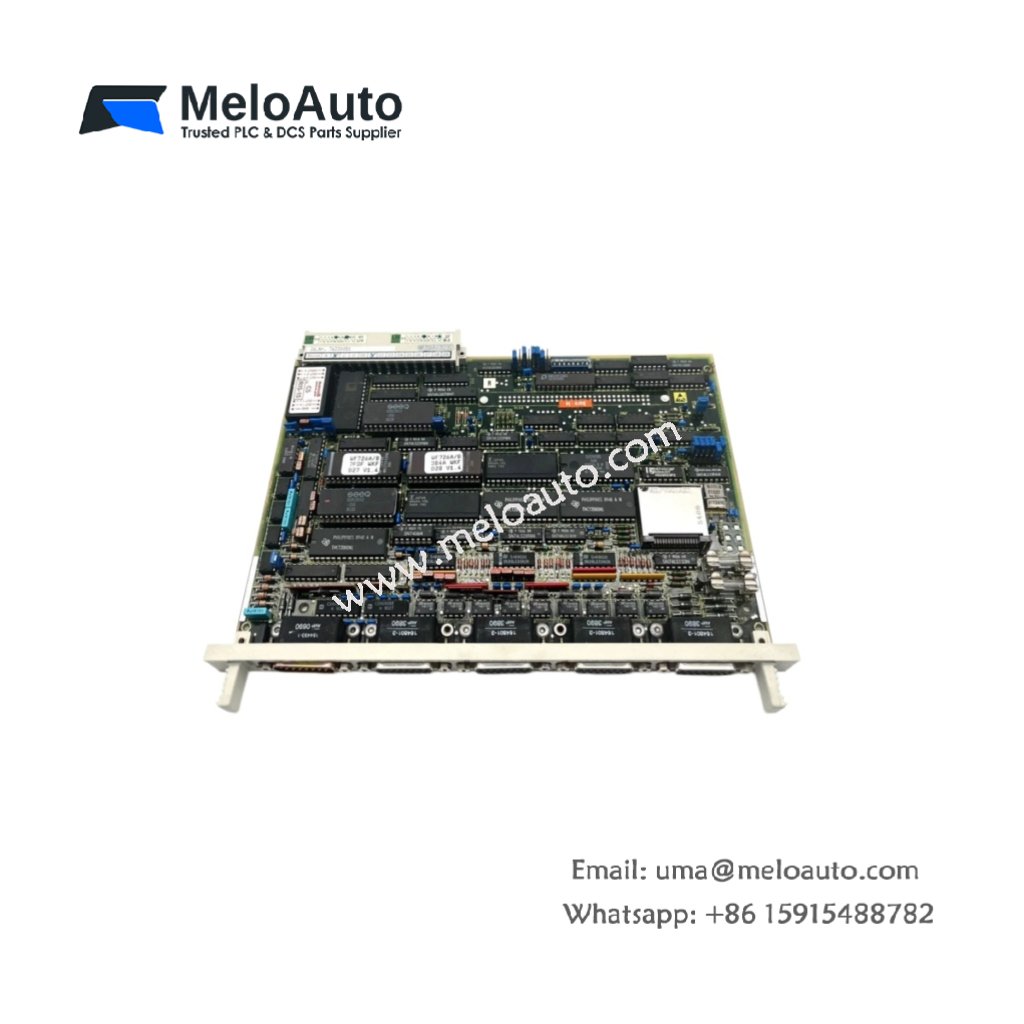

Siemens 6FM1726-3AA00 Positioning Module

Product Overview

The Siemens 6FM1726-3AA00 positioning module provides precise axis control for SIMATIC S5 programmable controllers. This module handles single-axis positioning tasks for stepper and servo motors. It connects directly to incremental encoders for accurate position feedback. The unit supports various positioning profiles for flexible automation.

Technical Specifications

Parameter	Specification
Model Number	6FM1726-3AA00
Product Type	Positioning Module
Brand	Siemens
Category	PLC Positioning Modules
Compatibility	SIMATIC S5 Series
Number of Axes	1 axis
Motor Types	Stepper, servo
Feedback	Incremental encoder
Positioning Profiles	Point-to-point, relative, absolute
Output Signal	Pulse/direction, analog
Weight	Approximately 0.35 kg
Dimensions	233 mm x 25 mm x 158 mm
Operating Temperature	0°C to 60°C
Protection Class	IP20

Key Features and Benefits

Precise Axis Positioning
The 6FM1726-3AA00 delivers accurate single-axis control for automation tasks. It supports point-to-point and absolute positioning modes. Consequently, users achieve consistent product quality.

Flexible Motor Compatibility
This module drives both stepper and servo motors for diverse applications. It adapts to various motion requirements. System designers gain flexibility in selecting actuators.

Encoder Feedback Support
The module accepts incremental encoder signals for closed-loop position verification. This feedback ensures accurate final positioning. Operators benefit from reliable system performance.

Application and Use Cases

The Siemens 6FM1726-3AA00 serves pick-and-place systems, conveyors, and cutting machines. It also supports packaging and assembly equipment requiring precise positioning. Maintenance teams will find this module a practical solution for motion control tasks.
