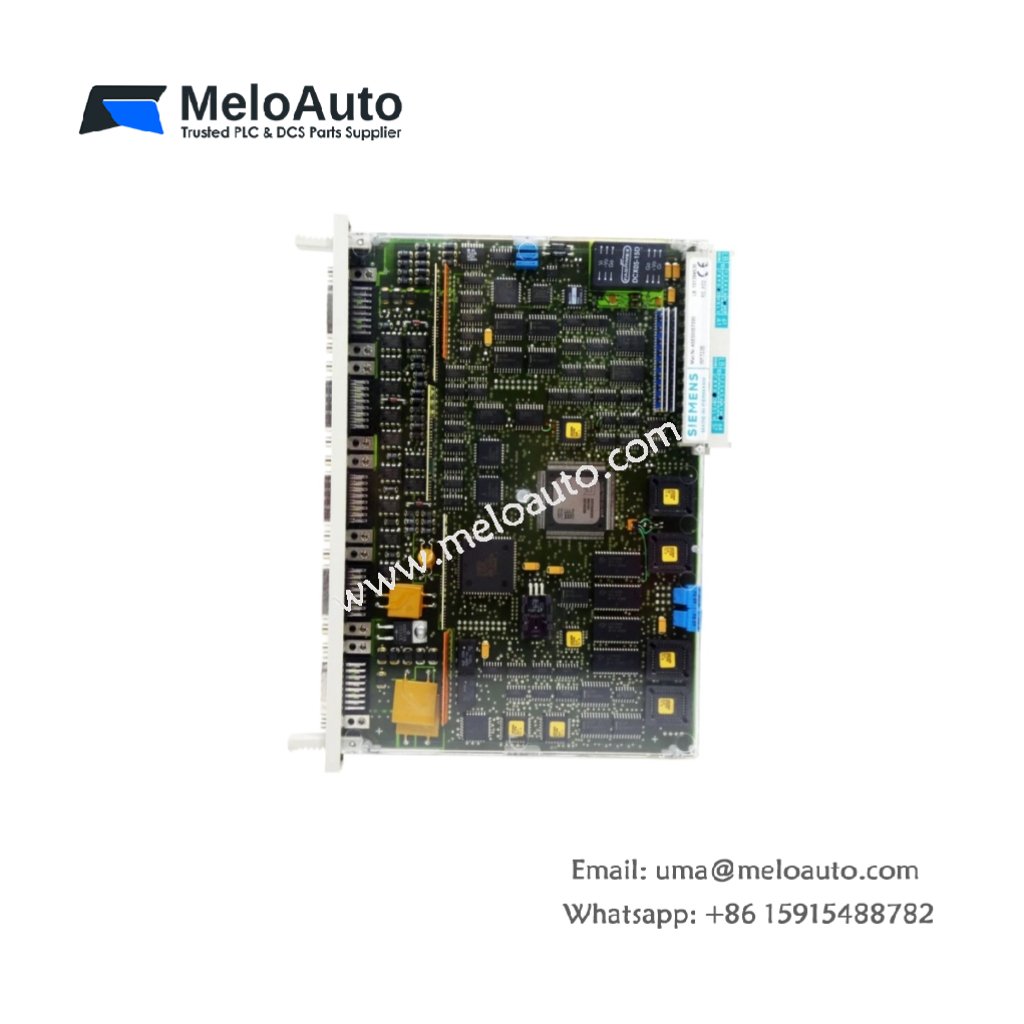

Siemens 6FM1723-3BA11 Positioning Module

Technical Overview

The Siemens 6FM1723-3BA11 is a positioning module for the SIMATIC S5 programmable controller series. This unit controls a single axis of motion, generating step and direction signals for stepper or DC servo motors . It processes feedback from incremental encoders for precise position control. The module includes a digital input for reference point sensing.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6FM1723-3BA11
Product Type	Positioning Module
System Compatibility	SIMATIC S5
Number of Axes	1
Motor Types	Stepper or DC servo
Output Signals	Step and Direction
Encoder Input	Incremental encoder
Reference Point Input	Yes (digital)
Power Consumption	3 W (typical)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH (non-condensing)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

Single-Axis Positioning – The module provides precise control for one motion axis.

Motor Flexibility – It supports both stepper and DC servo motors for various applications.

Reference Point Input – The digital input enables accurate homing and position referencing.

Encoder Feedback – The module processes incremental encoder signals for closed-loop control.

Applications

The Siemens 6FM1723-3BA11 suits single-axis motion tasks such as conveyor indexing, tool positioning, and pick-and-place operations.Siemens 6FM1723-3BA11 positioning module for S5, single-axis, stepper/DC servo, incremental encoder. In stock.
