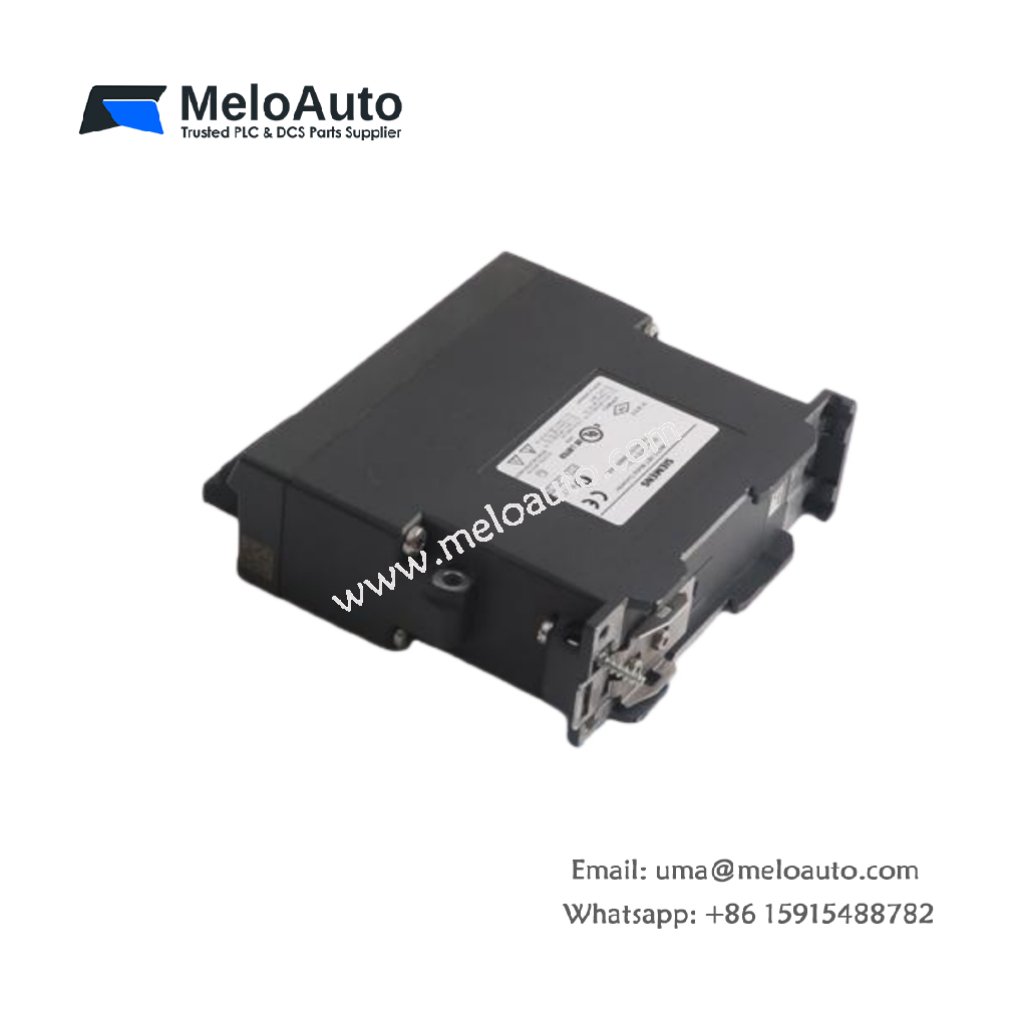

Siemens 6ES7972-0AA01-0XA0 DP RS485 Repeater

The Siemens 6ES7972-0AA01-0XA0 is an advanced DP RS485 repeater that plays a critical role in enhancing communication within industrial automation systems. It is part of the SIMATIC product line and is fully compatible with both PROFIBUS DP and MPI systems. This repeater enables seamless communication between devices, supporting up to 31 nodes with high-speed data transmission.

Key Features of Siemens 6ES7972-0AA01-0XA0

Wide Compatibility: The Siemens 6ES7972-0AA01-0XA0 integrates seamlessly with PROFIBUS DP and MPI bus systems, ensuring reliable data exchange across industrial networks.
High-Speed Communication: With a maximum communication speed of 12 Mbit/s, this device ensures fast and efficient data transmission, vital for time-sensitive applications.
Multiple Node Support: The repeater supports up to 31 nodes, enabling large-scale connectivity and scalability in industrial networks.
RS485 Communication Protocol: This repeater uses the RS485 communication protocol, known for its robustness and long-distance signal transmission capability.
Compact and Efficient: Weighing just 0.25 lbs (0.11 kg), the device is compact yet powerful. It features DIN rail mounting for straightforward installation in control panels.

Benefits of the Siemens 6ES7972-0AA01-0XA0 DP RS485 Repeater

Enhanced Network Reliability: The repeater ensures strong and stable communication between devices, improving overall system performance and minimizing downtime.
Flexible System Integration: Thanks to its compatibility with multiple bus systems, the Siemens 6ES7972-0AA01-0XA0 is perfect for various industrial applications.
Easy Installation: The device is designed for DIN rail mounting, making installation efficient and simple, even in crowded control panels.
Power Efficient: With a low power consumption of just 1.5 W, it is energy-efficient, ensuring minimal impact on your overall system power requirements.
Built-In Protection: Equipped with short-circuit, overvoltage, and overcurrent protection, this device ensures safe operation in industrial environments.

Technical Specifications of Siemens 6ES7972-0AA01-0XA0

Specification	Details
Model	Siemens 6ES7972-0AA01-0XA0
Category	DP RS485 Repeater
Compatibility	PROFIBUS DP, MPI
Maximum Nodes Supported	31 nodes
Communication Speed	Up to 12 Mbit/s
Communication Protocol	RS485
Protection	Short-circuit, Overvoltage, Overcurrent
Mounting Type	DIN rail mounting
Power Supply	24 V DC
Power Consumption	1.5 W
Input Voltage Range	24 V DC ±20%
Operating Temperature Range	0°C to +60°C
Humidity Range	5% to 95% (non-condensing)
Weight	0.25 lbs (0.11 kg)
Degree of Protection	IP20
LED Indicators	Power supply, Communication status LED

Applications

The Siemens 6ES7972-0AA01-0XA0 DP RS485 Repeater is designed for industrial automation environments, making it ideal for the following applications:

Industrial Communication Networks: Ensure reliable and fast communication between devices on PROFIBUS DP and MPI networks.
Automation Systems: Expand connectivity and improve network reliability in large-scale industrial automation systems.
Control Panel Integration: Perfect for integrating within control panels, especially in systems that require multiple nodes and high-speed communication.

Conclusion

The Siemens 6ES7972-0AA01-0XA0 DP RS485 Repeater is a vital component for enhancing communication in PROFIBUS DP and MPI networks. With its ability to support up to 31 nodes, high communication speeds, and robust protection features, it ensures reliable and efficient data transmission in industrial applications. Its compact size, power efficiency, and easy installation make it an excellent choice for your automation needs.
