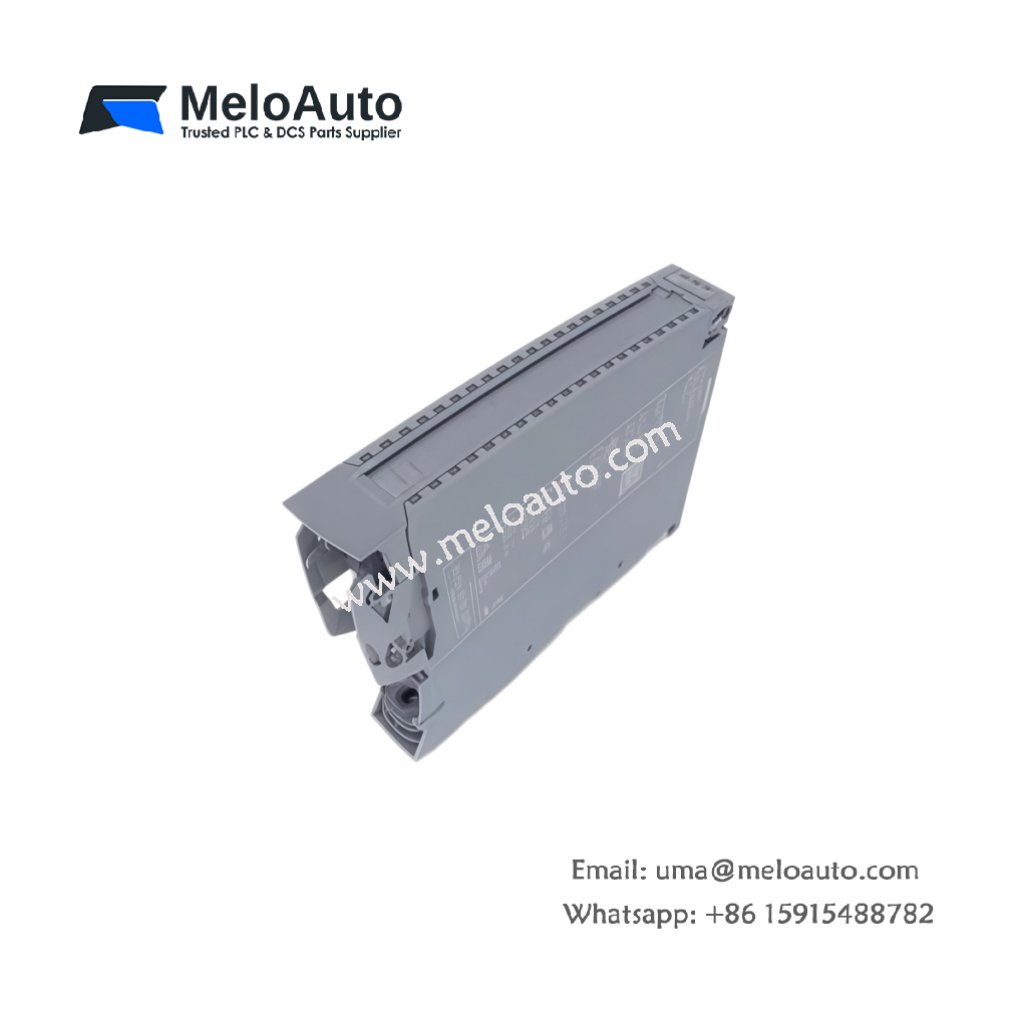

Siemens 6ES7532-5NB00-0AB0 Analog Output Module

Precision Analog Signal Generation for Advanced Control

The Siemens 6ES7532-5NB00-0AB0 analog output module delivers precise control signals for the SIMATIC S7-1500 automation system. This module provides four analog outputs with a resolution of 16 bits for high-accuracy applications. Its compact design enables efficient use of space in control cabinets and supports easy installation on a mounting rail. The module converts digital control values into industry-standard analog signals, such as 0-10V or 4-20mA. It is an ideal solution for applications requiring precise and reliable analog signals, including valve positioning and variable speed drives.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Type	Analog Output Module
Part Number	6ES7532-5NB00-0AB0
System	SIMATIC S7-1500
Number of Outputs	4
Resolution	16 bits
Output Ranges	0-10 V, ±10 V, 0-20 mA, 4-20 mA (configurable)
Load Impedance	Minimum 1 kΩ (voltage), maximum 500 Ω (current)
Power Loss	Typical 2.1 W
Dimensions	35 x 147 x 129 mm
Weight	Approx. 0.28 kg
Operating Temperature	0°C to +60°C
Certification	CE, UL, cULus

Precision and Diagnostic Capabilities

The Siemens 6ES7532-5NB00-0AB0 offers a 16-bit resolution, ensuring fine control for demanding applications. It provides diagnostic functions such as wire-break and short-circuit detection, improving reliability and reducing troubleshooting time. The module also supports configurable output replacement values for failsafe operation, ensuring predictable system behavior. Diagnostic LEDs provide clear, real-time status feedback. Additionally, it supports a wide range of output signals, making it versatile for various industrial applications.

System Integration and Application Versatility

The Siemens 6ES7532-5NB00-0AB0 integrates seamlessly with the TIA Portal engineering framework. It is compatible with all S7-1500 CPUs and supports high-speed clock synchronization, which is essential for motion control applications. The module is well-suited for controlling proportional valves, frequency inverters, and servo drives. Its channel-specific diagnostics and configurable outputs facilitate easy commissioning, reducing engineering time.
