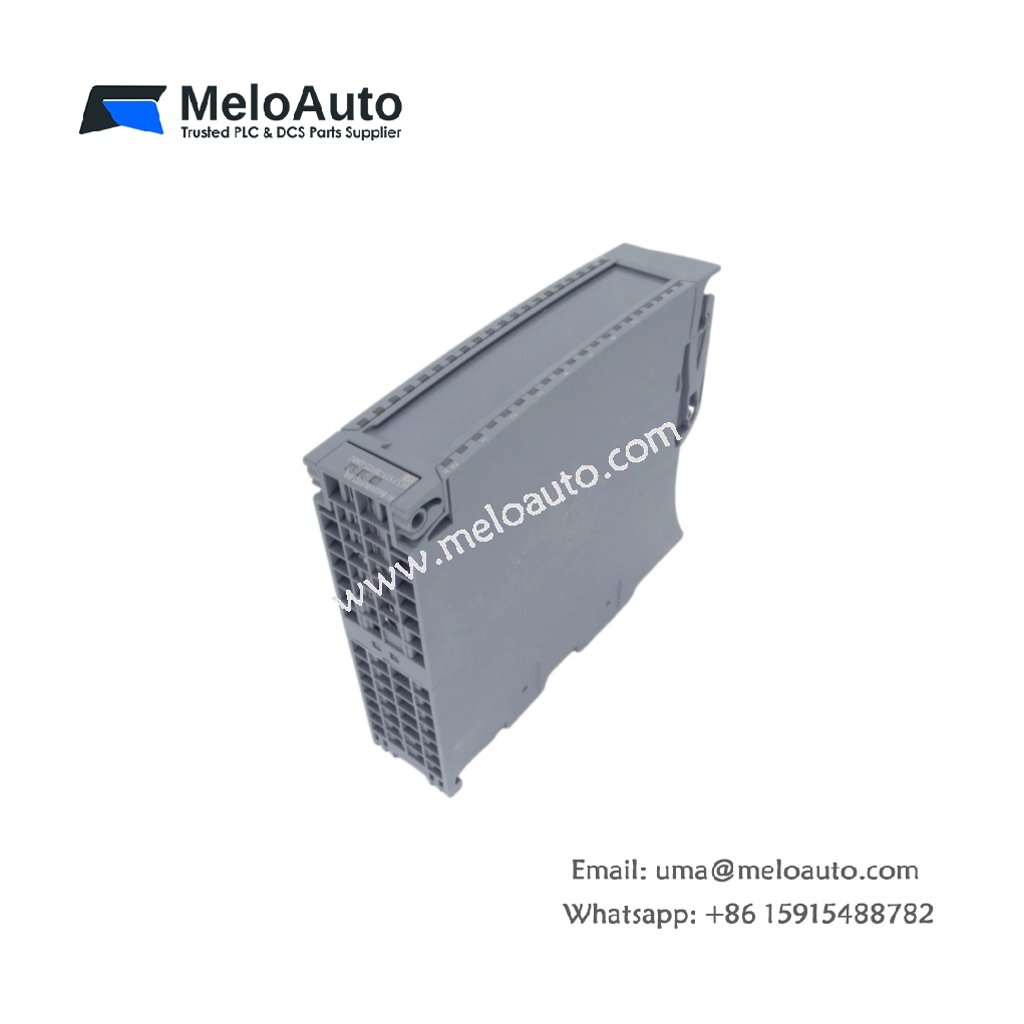

Siemens 6ES7531-7QF00-0AB0 Analog Input

Precision Signal Acquisition for S7-1500 Systems

This analog input module captures 8 high-accuracy signals for S7-1500 controllers. It accepts current, voltage, and resistance inputs from field devices. Many engineers choose this module for critical process measurements and control. The unit delivers exceptional accuracy with comprehensive diagnostic coverage.

Technical Specifications

Parameter	Specification
Model	6ES7531-7QF00-0AB0
Dimensions	35 mm × 147 mm × 129 mm (W × H × D)
Weight	0.31 kg
Power Supply	24 V DC (from backplane bus)
Power Consumption	1.8 W typical
Input Channels	8 analog inputs (configurable)
Input Types	4-20 mA, 0-20 mA, 0-10 V, ±10 V, 0-5 V, resistance (Pt100, Pt1000, Ni100)
Input Impedance	100 Ω (current), ≥ 1 MΩ (voltage)
Resolution	16-bit (including sign)
Accuracy	±0.05% of span at 25°C
Temperature Drift	±50 ppm/°C
Sampling Rate	200 Hz per channel (simultaneous)
Common Mode Rejection	100 dB at 50/60 Hz
Normal Mode Rejection	60 dB at 50/60 Hz
Isolation Voltage	1,500 V AC (channel-to-backplane)
Diagnostic Functions	Wire-break detection, out-of-range detection
Status Indicators	1 Power LED, 1 Error LED, 8 Channel Status LEDs
Terminal Type	Push-in spring terminals
Wire Gauge	0.2 mm² to 1.5 mm²
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cULus, ATEX, FM

Input Flexibility and Sensor Support

This module supports current, voltage, and resistance measurement inputs. Current ranges include 4-20 mA and 0-20 mA for transmitters. Voltage ranges cover 0-10 V and ±10 V for various sensors. RTD inputs support Pt100, Pt1000, and Ni100 for temperature measurement.

Measurement Accuracy and Signal Resolution

Resolution reaches 16 bits including sign for precise readings. Accuracy of ±0.05% ensures reliable process control. Temperature drift of only ±50 ppm/°C maintains stability. The module delivers consistent measurements across its temperature range.

Sampling Performance and Data Capture

All 8 channels sample simultaneously at 200 Hz. This simultaneous sampling preserves phase relationships between signals. The module buffers data for deterministic CPU reads. Fast sampling supports dynamic process monitoring applications.

Noise Rejection and Interference Immunity

Common mode rejection of 100 dB eliminates ground loop noise. Normal mode rejection of 60 dB attenuates power line interference. The module filters both 50 Hz and 60 Hz frequencies. This performance ensures clean signals in industrial environments.

Diagnostic Functions and Fault Reporting

Onboard diagnostics detect wire-breaks and out-of-range conditions. The module reports faults to the S7-1500 CPU automatically. Engineers receive immediate alerts for sensor wiring issues. This capability speeds troubleshooting and reduces downtime.

Mechanical Design and Physical Specifications

This module measures 35 mm wide and weighs just 0.31 kg. Push-in spring terminals simplify field wiring significantly. The slim profile saves valuable rack space in cabinets. Installation uses the S7-1500 backplane for power and data.

Status Indication and Diagnostics

Power and error LEDs provide operational status at a glance. Channel status LEDs show individual channel health. This visual feedback assists during commissioning. Technicians can quickly identify problematic channels.

Certifications and Compliance

The 6ES7531-7QF00-0AB0 holds CE, UL, cULus, ATEX, and FM certifications. These approvals permit use in hazardous and industrial environments. Each module undergoes factory testing before shipment. This quality commitment ensures reliable analog acquisition.
