High-Performance Processing for Demanding Automation Tasks

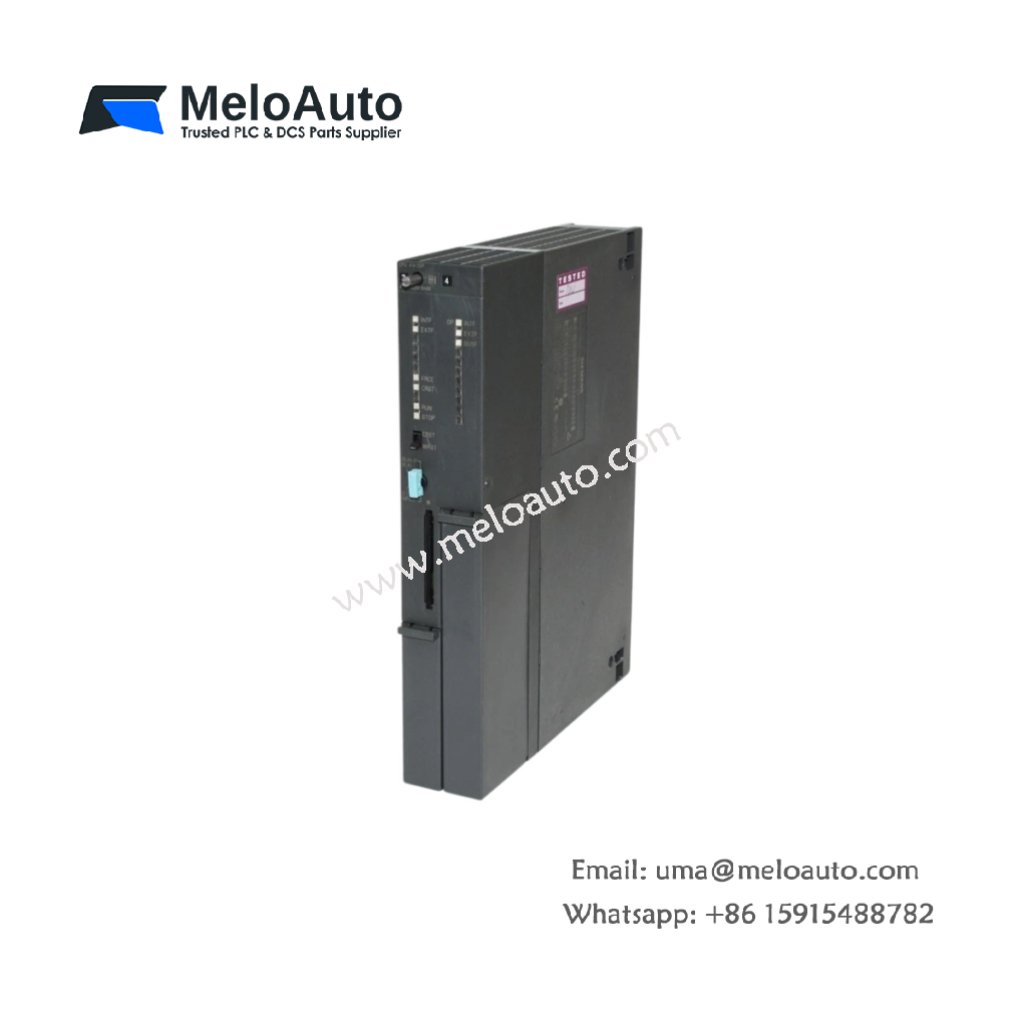

The Siemens 6ES7414-2XG00-0AB0 central processing unit belongs to the powerful SIMATIC S7-400 series. This CPU module handles complex control tasks in production and process automation with ease. It features a modular and fanless design for reliable operation in harsh industrial environments. The module integrates a multipoint interface (MPI) and a built-in PROFIBUS DP interface. Consequently, it ensures efficient communication within distributed automation networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Type | Central Processing Unit (CPU) |
| Series | SIMATIC S7-400 |
| Model Name | CPU 414-2 DP |
| Working Memory | 128 KB |
| Memory Type | RAM |
| Load Memory Expansion | FEPROM up to 64 MB; RAM up to 64 MB (with memory card) |
| Bit Operation Time | 0.15 µs |
| Interfaces | MPI/DP (12 Mbit/s), PROFIBUS DP |
| Backplane Current Draw (5V) | 0.9 A typical; 1.1 A max |
| Power Loss (typical) | 4.5 W |
| Weight | Approximately 1.28 kg |
| Dimensions (W x H x D) | 25 x 260 x 219 mm |
| Certification | CE, UL, CSA |
Memory Architecture and Processing Power
The Siemens 6ES7414-2XG00-0AB0 provides 128 KB of integrated working memory for program and data handling. It supports extensive load memory expansion via FEPROM or RAM memory cards up to 64 MB. The CPU executes binary operations in just 0.15 µs per instruction. It also supports up to 8192 I/O points, making it suitable for medium to large-scale automation systems.
Communication and System Integration
The Siemens 6ES7414-2XG00-0AB0 provides two integrated communication interfaces for network connectivity. The MPI/DP interface supports 12 Mbit/s data transfer. The second PROFIBUS DP interface connects directly to field devices as a master or slave. The CPU supports isochronous mode on PROFIBUS for precise process synchronization. This robust communication capability ensures seamless integration into existing S7-400 systems.
