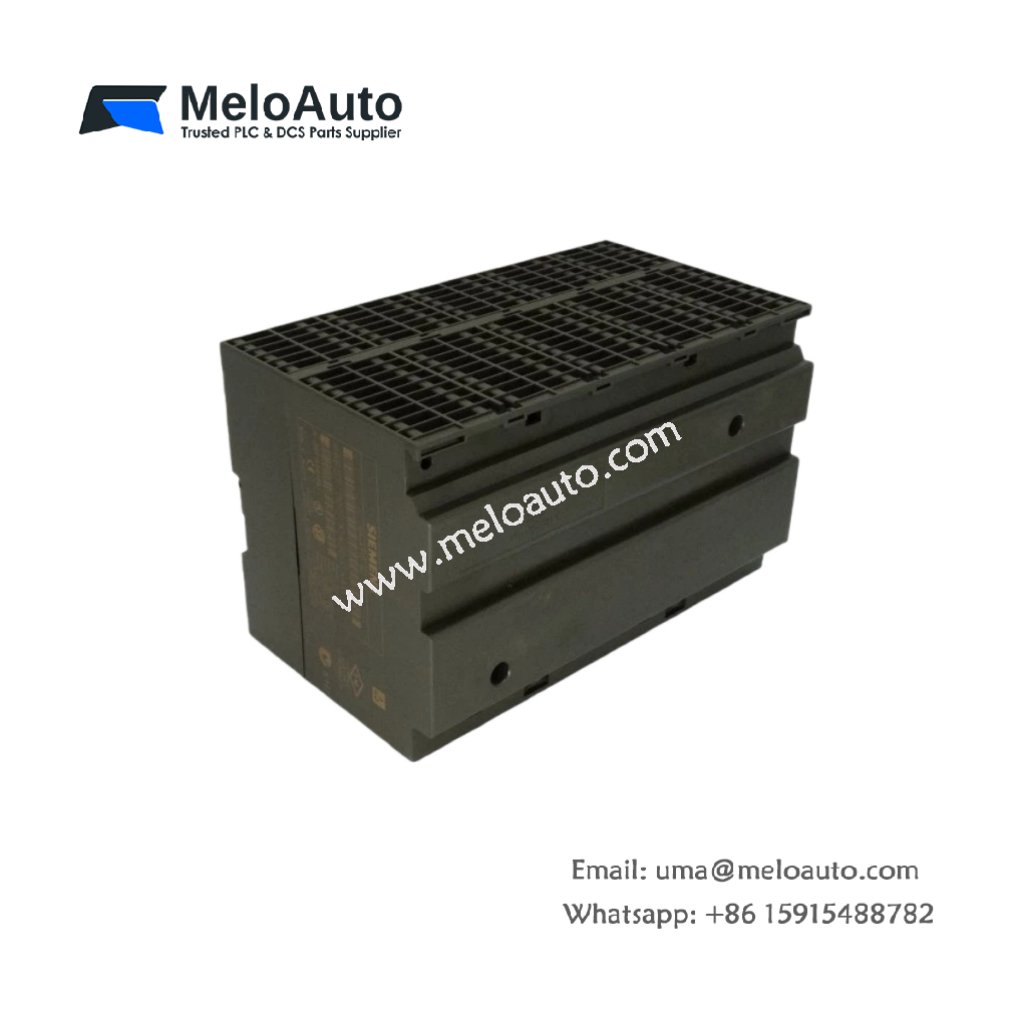

Siemens 6ES7307-1KA00-0AA0 – Efficient Power Supply

The Siemens 6ES7307-1KA00-0AA0 is a robust power supply unit designed specifically for SIMATIC S7-300 systems. This module provides 24 V DC output and delivers up to 5 A, making it ideal for ensuring stable and reliable power in demanding industrial environments. Its compact size, energy efficiency, and long-term durability make it a top choice for industrial automation applications.

Key Features and Specifications

Model: 6ES7307-1KA00-0AA0
Category: Power Supply
Manufacturer: Siemens
Product Line: SIMATIC S7-300

Electrical and Performance Specifications

Parameter	Details
Rated Supply Voltage	24 V DC
Permissible Voltage Range	20.4 V to 28.8 V
Current Consumption	1.2 A (typical)
Power Loss	40 W (max)
Output Power	5 A at 24 V DC
Output Voltage	24 V DC
Efficiency	> 90%

Environmental and Operational Conditions

Parameter	Details
Ambient Temperature (Operation)	0°C to 60°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20

Dimensions and Weight

Parameter	Details
Module Format	Compact module, S7-300
Width	125 mm
Height	100 mm
Depth	130 mm
Net Weight	0.65 kg
Mounting Type	Rail mounting for SIMATIC S7-300

Design and Durability

The Siemens 6ES7307-1KA00-0AA0 features a compact design that integrates seamlessly into the SIMATIC S7-300 system. The unit measures 125 mm in width, 100 mm in height, and 130 mm in depth, making it easy to install in tight spaces. At just 0.65 kg, this module is lightweight, yet it offers reliable power output and durability.

Power Efficiency and Reliability

This power supply provides 24 V DC output with a 5 A current, ensuring stable and continuous power for all connected devices. The current consumption is typically 1.2 A, which makes it highly efficient in terms of power usage. With a maximum power loss of only 40 W, it minimizes heat generation. Moreover, the unit boasts an efficiency greater than 90%, making it both energy-efficient and cost-effective.

Environmental Compatibility

The 6ES7307-1KA00-0AA0 power supply module operates efficiently within a wide ambient temperature range of 0°C to 60°C. It can endure storage temperatures from -40°C to +70°C, ensuring that it performs in even the harshest conditions. Additionally, this power supply unit can operate in environments with up to 95% relative humidity as long as there is no condensation.

Applications

The Siemens 6ES7307-1KA00-0AA0 power supply is perfect for powering SIMATIC S7-300 controllers, sensors, and actuators within industrial automation systems. It ensures smooth operation for PLC systems, process control, and machine control applications.

Industrial Automation Systems: Powers automation controllers and devices in SIMATIC S7-300 systems.
Process Control: Ensures stable power to PLCs, I/O modules, and control systems.
Machine Control: Delivers reliable power to automated machines and systems in industrial settings.
