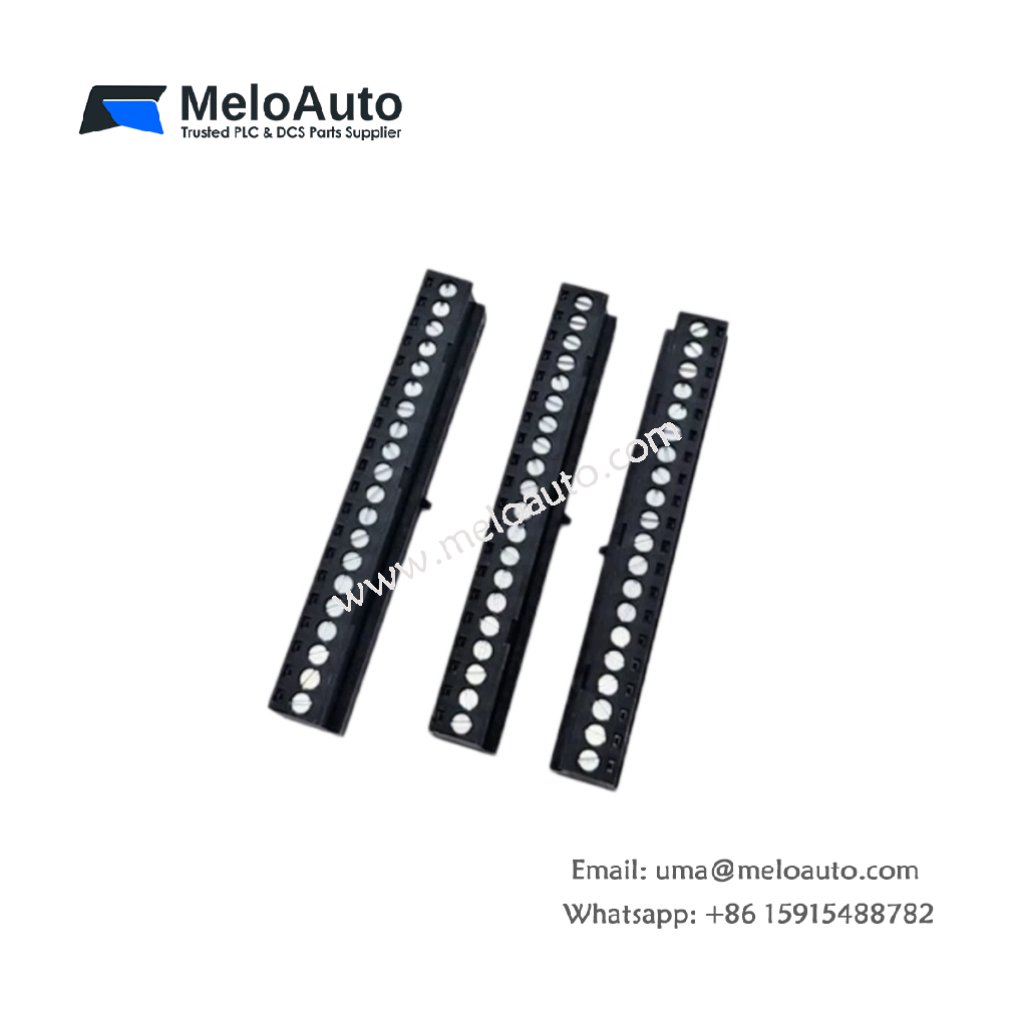

Siemens 6ES7292-1AV30-0XA0 Terminal Block

Product Overview

The Siemens 6ES7292-1AV30-0XA0 terminal block provides secure wiring termination for SIMATIC S7-1200 I/O modules. This accessory connects field devices to the PLC system. It features screw-type terminals for reliable and maintenance-friendly connections. The block comes ready for immediate installation.

Technical Specifications

Parameter	Specification
Model Number	6ES7292-1AV30-0XA0
Product Type	Terminal Block
Brand	Siemens
Category	PLC Connection Accessories
Compatibility	SIMATIC S7-1200
Connection Type	Screw terminals
Number of Positions	12
Wire Gauge	0.5 mm² to 2.5 mm²
Weight	Approximately 0.05 kg
Dimensions	50 mm x 30 mm x 20 mm
Mounting	Direct plug-in
Protection Class	IP20

Key Features and Benefits

Efficient Wiring Connection
The 6ES7292-1AV30-0XA0 enables quick and reliable termination of field wiring. Its screw terminals provide secure connections that resist loosening. This ensures stable signal transmission for the connected modules.

Compact Space-Saving Design
This terminal block features a compact footprint for efficient cabinet utilization. Its small size allows dense module mounting. Users can maximize panel space without compromising accessibility.

Versatile Application
The block accommodates various wire gauges from 0.5 mm² to 2.5 mm². This flexibility supports diverse field wiring requirements. Users can standardize on this accessory across multiple installations.

Application and Use Cases

The Siemens 6ES7292-1AV30-0XA0 terminates sensor, actuator, and power wiring to S7-1200 modules. It also simplifies field maintenance and troubleshooting tasks. Facilities will find this block a convenient spare for terminal replacements.
