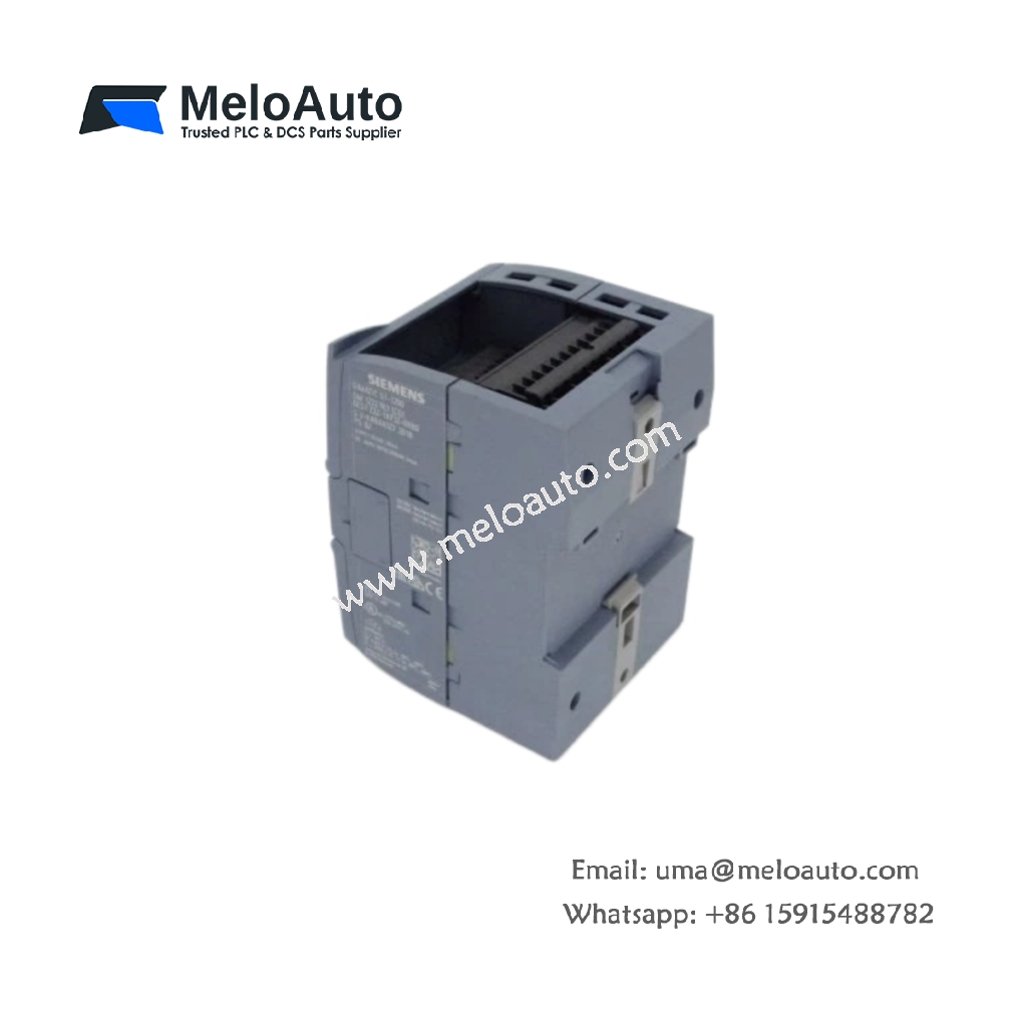

Siemens 6ES7222-1XF32-0XB0 SM 1222 Digital Output Module

Product Overview

The 6ES7222-1XF32-0XB0 SIMATIC S7-1200 digital output module provides efficient switching control for Siemens compact automation systems. It expands PLC output capacity while delivering reliable control signals for industrial field devices.

Moreover, the compact module design allows easy integration into S7-1200 controller assemblies and control cabinets. The optimized structure supports flexible system expansion while maintaining efficient installation and maintenance procedures.

Additionally, the module uses durable electronic components to ensure stable operation during continuous industrial processes. The advanced circuit design improves output accuracy while supporting reliable communication with the central processing unit.

Technical Specifications

Parameter	Specification
Brand	Siemens
Model	6ES7222-1XF32-0XB0
Product Category	SIMATIC S7-1200 Digital Output SM 1222 Module
Module Type	Digital Output Signal Module
Output Channels	8 Digital Outputs
Output Type	Relay Output
Rated Voltage	24 V DC / Relay Switching Output
Installation Method	S7-1200 CPU Expansion Mounting
Interface	Backplane Bus Connector
Communication System	SIMATIC S7-1200 System Bus
Circuit Structure	Industrial Multi-layer PCB
Component Configuration	Output relays, driver circuits, communication interface, capacitors, protection components, status indicators
Energy Storage	Integrated capacitors for voltage stabilization
Housing Material	Industrial Flame-retardant Plastic
Cooling Method	Natural Air Convection
Dimensions	Approx. 100 × 45 × 75 mm
Weight	Approx. 0.15 kg
Operating Environment	Industrial Automation and Machine Control Systems

Key Features

The 6ES7222-1XF32-0XB0 provides eight digital output channels for controlling industrial devices and automation equipment. Furthermore, the relay output design supports flexible switching applications across various machine control environments.

In addition, diagnostic indicators help engineers monitor module status and simplify troubleshooting activities. The secure backplane connection maintains stable communication between the output module and the S7-1200 CPU.

The optimized hardware structure improves electrical stability while reducing system wiring complexity. Moreover, integrated capacitors maintain internal voltage balance, helping the module achieve consistent performance during frequent switching operations.

Industrial Applications

Engineers commonly use the 6ES7222-1XF32-0XB0 in packaging machines, production equipment, conveyor systems, and factory automation projects. Additionally, the module controls valves, motors, relays, alarms, and other digital actuators within Siemens SIMATIC architectures.

Advantages for Industrial Automation

The compact module design improves PLC expansion flexibility while providing dependable output control. Furthermore, Siemens compatibility, reliable relay switching, and efficient installation make this module suitable for modern industrial automation applications.
