Integrated Control Overview

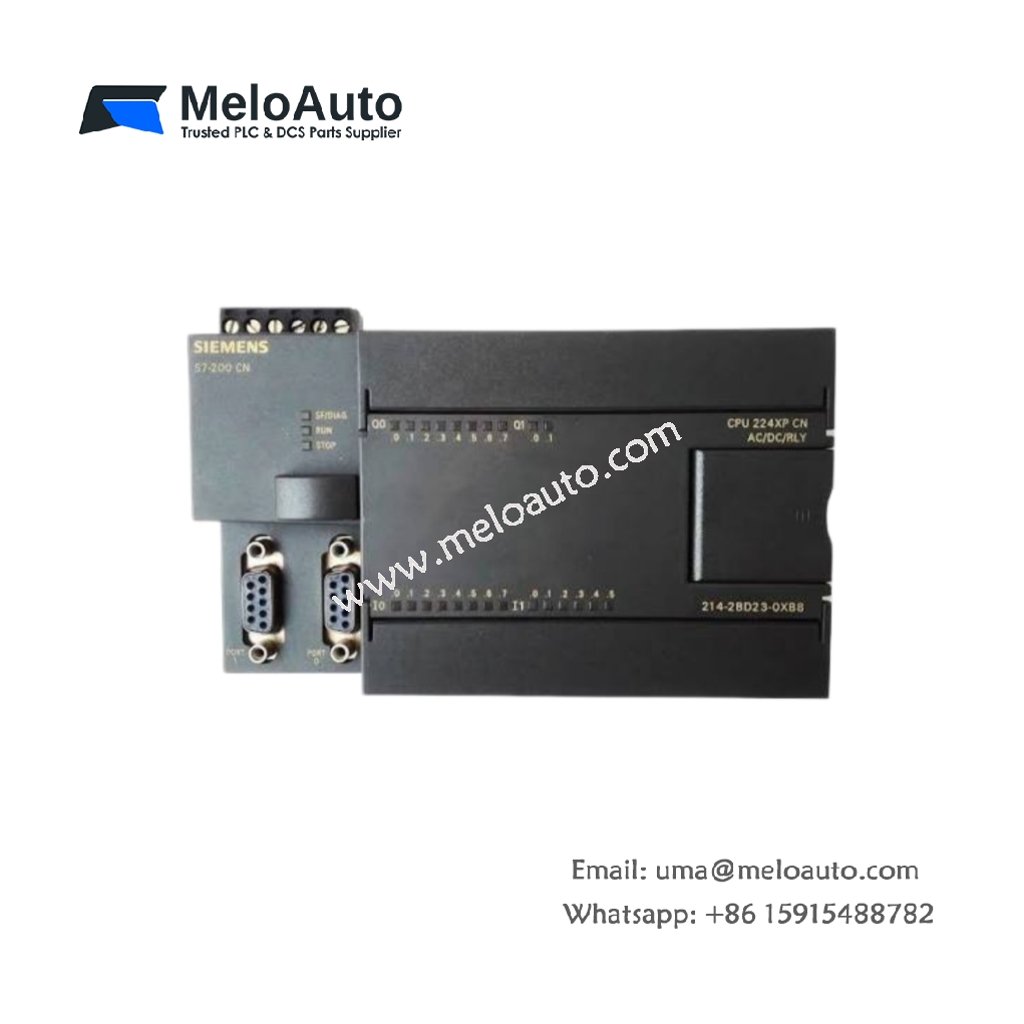

The Siemens 6ES7214-2BD23-0XB8 functions as a compact, integrated CPU for the SIMATIC S7-200 CN controller series. This unit combines processor, I/O, and communication interfaces in a single housing. It serves small to medium-sized automation applications efficiently. Machine builders appreciate this all-in-one design for space-saving installations.
Technical Specifications
The 6ES7214-2BD23-0XB8 measures 140 mm in height and 80 mm in width. Its compact form factor saves valuable panel space. The module weighs approximately 0.4 kilograms. It draws 150 mA from the 24V DC supply.
| Parameter | Specification |
|---|---|
| Model | 6ES7214-2BD23-0XB8 |
| Product Type | CPU 224XP Compact Unit |
| Dimensions | 140 mm x 80 mm x 62 mm (depth) |
| Weight | ~0.4 kg |
| Supply Voltage | 24V DC |
| Current Draw | 150 mA (typical) |
| Work Memory | 12 KB for program, 8 KB for data |
| Load Memory | 64 KB internal Flash |
| Digital Inputs | 14 x 24V DC |
| Digital Outputs | 10 x 24V DC (0.75 A) |
| Analog Inputs | 2 x 0-10V (10-bit) |
| Analog Outputs | 1 x 0-10V (10-bit) |
| Communication Ports | 2 x RS-485 (9-pin D-sub) |
| Protocols | PPI, MPI, Modbus RTU, freeport |
| Interrupt Inputs | 2 x high-speed (20 kHz) |
| High-Speed Counters | 4 x 30 kHz |
| On-board Components | 1 x processor, 1 x real-time clock module |
| Energy Storage | 0.22 F supercapacitor |
| LED Indicators | 4 x Status (PWR, RUN, STOP, FAULT) |
| Operating Temp. | 0°C to +55°C |
Integrated I/O and Functionality
The Siemens 6ES7214-2BD23-0XB8 includes fourteen digital inputs and ten digital outputs. Two analog inputs and one analog output handle basic process signals. Four high-speed counters capture fast pulse signals up to 30 kHz. Two interrupt inputs respond to events within microseconds. The real-time clock enables timestamping and time-based control.
Communication and Networking
This compact unit offers two RS-485 ports for serial communication. The ports support PPI for programming and HMI connections. Modbus RTU enables integration with third-party devices. Freeport mode allows custom protocols for specific applications. The CPU can function as both master and slave on the network.
Memory and Data Handling
The 6ES7214-2BD23-0XB8 provides 12 KB of user program memory and 8 KB of data storage. A 64 KB Flash memory retains the program securely. The supercapacitor maintains data and clock for several days without power. The CPU supports up to 128 digital and 8 analog expansion modules. This scalability accommodates growing system requirements.
Installation and Configuration
Installing the 6ES7214-2BD23-0XB8 requires standard DIN rail mounting. The module connects via removable terminal blocks for easy wiring. You can program the CPU using STEP 7-Micro/WIN software. The interface supports online monitoring and debugging functions. The module operates reliably between 0°C and 55°C ambient temperatures.
Reliability and Operational Features
The Siemens 6ES7214-2BD23-0XB8 delivers consistent performance for compact automation tasks. The watch dog timer ensures system supervision during program execution. Four LED indicators show power, run, stop, and fault conditions.
