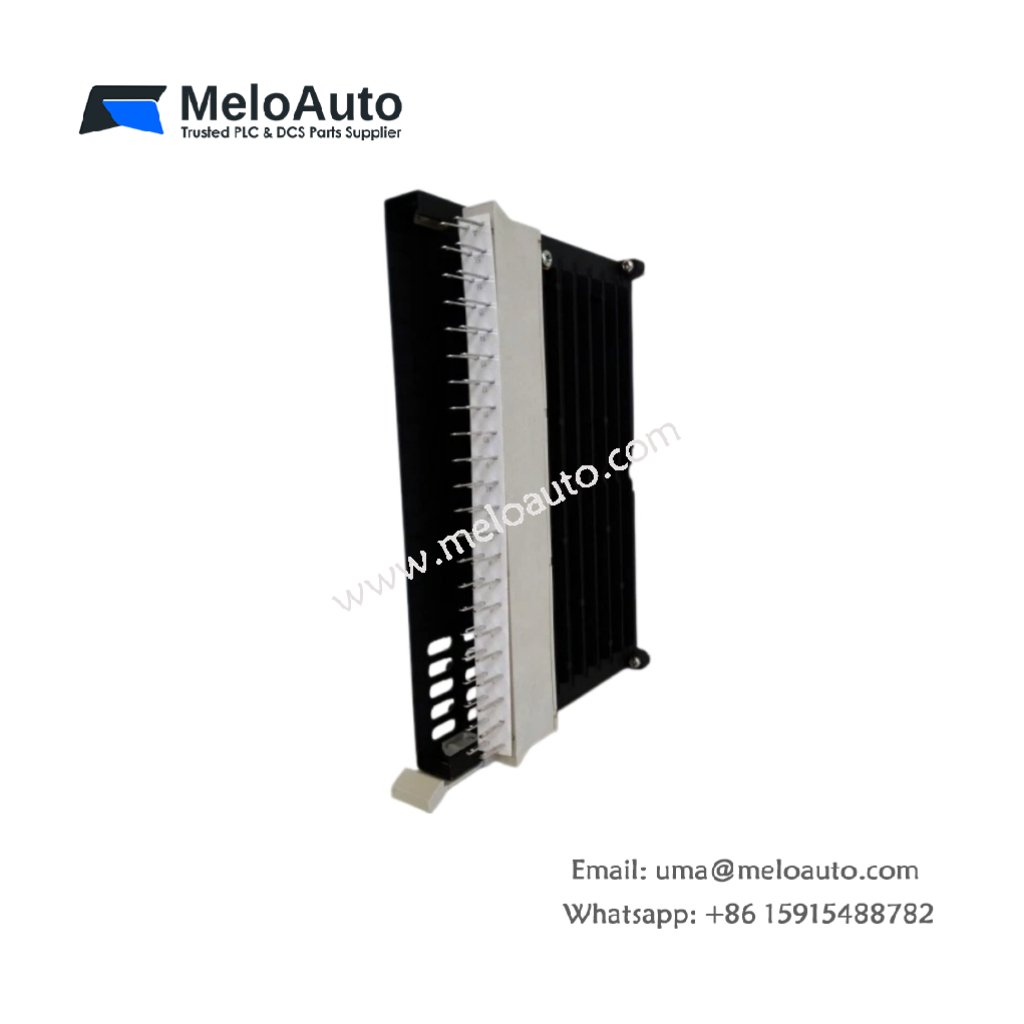

Siemens 6ES7193-1FH60-0XA0 SIMATIC DP Additional Terminal

Flexible Connection Point for ET200M Distributed I/O

The Siemens 6ES7193-1FH60-0XA0 additional terminal expands the connection capacity for the ET200M distributed I/O system. This auxiliary terminal block provides extra wiring points for field devices, sensors, and actuators within the control cabinet. Its compact design occupies minimal space on the DIN rail, which allows efficient use of available panel area. The terminal integrates seamlessly with existing ET200M configurations, ensuring a straightforward expansion process.

This module features screw-type terminals that accommodate solid or stranded conductors with cross-sections from 0.5 mm² to 2.5 mm². The terminal block carries a rated current of 10 A per connection point, providing sufficient capacity for most field devices. Its clear labeling system simplifies wire identification during installation and future maintenance activities. The unit’s housing meets IP20 protection standards, making it suitable for installation inside protected control cabinets.

Technical Specifications

The Siemens 6ES7193-1FH60-0XA0 provides four independent terminal connections, each capable of handling 10 A of continuous current. Its screw-type clamping mechanism ensures secure wire retention and maintains reliable contact even under vibration. The module’s terminal numbering matches standard ET200M addressing schemes, which reduces wiring errors and speeds up commissioning. This additional terminal supports both AC and DC voltage levels, offering versatility for mixed signal types.

The unit’s 15 mm width makes it one of the narrowest terminal blocks in its class. It connects directly to the ET200M backplane bus without requiring special adapters. The terminal accepts a range of conductor sizes, from fine-stranded to solid copper wires. Its transparent cover protects the terminals from accidental contact while allowing visual inspection. Maintenance teams appreciate the unit’s tool-free mounting on standard 35 mm DIN rails. This design enables rapid installation and reconfiguration during system upgrades. The module’s operating temperature range suits most indoor industrial settings, from climate-controlled rooms to moderately warm environments. Its robust construction guarantees long service life with minimal maintenance requirements. This terminal block provides an economical solution for adding extra I/O points to existing ET200M installations. Its straightforward design aligns with Siemens’ philosophy of modular, scalable automation components.
