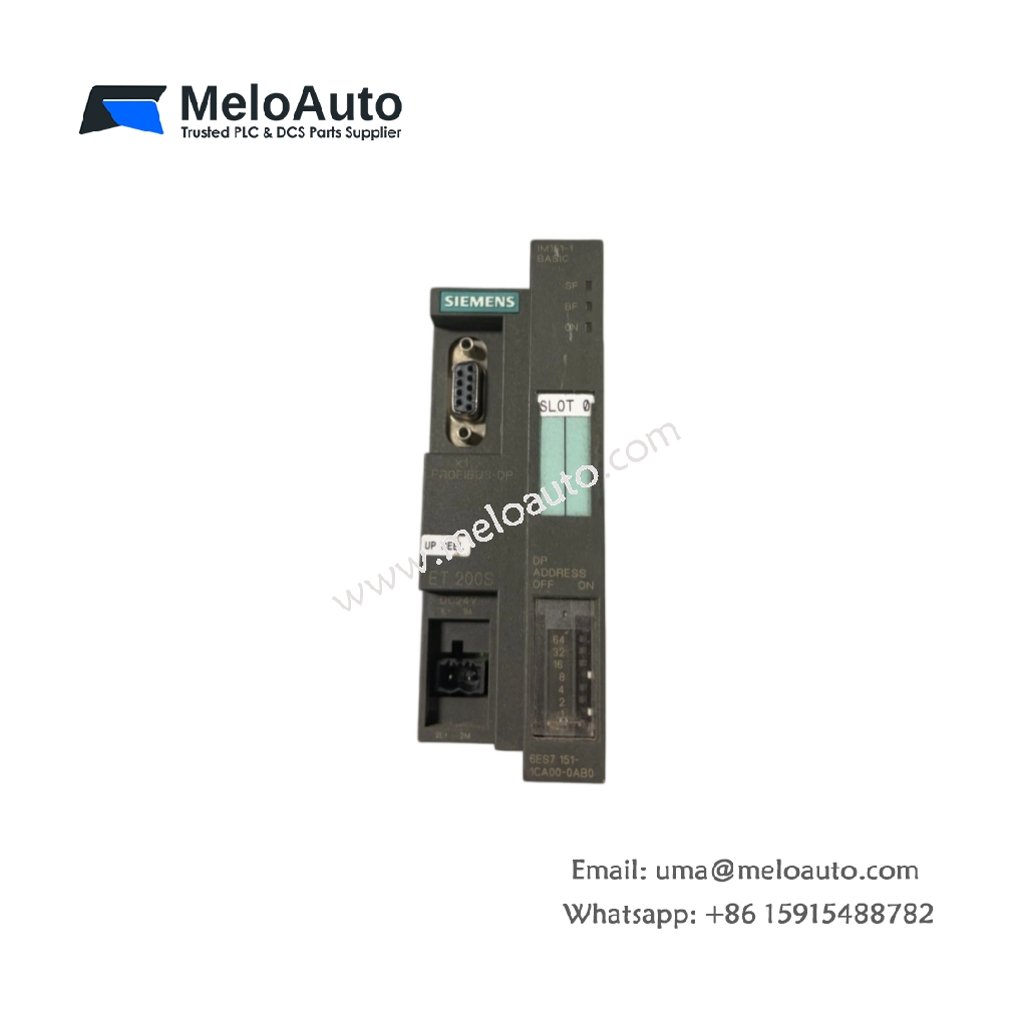

The Siemens 6ES7151-1CA00-0AB0 interface module (IM 151-1 CA00) connects the ET 200S distributed I/O system to a PROFIBUS DP network. This module serves as the communication gateway between the master controller and remote I/O stations. The unit supports high-speed data exchange with up to 32 I/O modules per station.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Interface module (IM 151-1) |
| Compatibility | SIMATIC ET 200S |
| PROFIBUS Ports | 1 x RS-485 (9-pin D-sub) |
| Transmission Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max I/O Modules per Station | 32 modules |
| Max Cable Length | 1.2 km (at 9.6 kbps), 100 m (at 12 Mbps) |
| Max Stations per Network | 32 (without repeater), 126 (with repeater) |
| Dimensions (W x H x D) | 90 x 120 x 40 mm |
| Weight | 0.24 kg |
| Internal Components | 1 x PROFIBUS controller, 2 x optocouplers, 1 x voltage regulator |
| Diagnostic Memory | 256 bytes (fault logging) |
| Bus Connector | ET 200S backplane (spring contacts) |
| LED Indicators | 3 x green, 2 x red (status and error) |
| Power Supply | 24V DC (from backplane) |
| Power Consumption | 24V / 120 mA (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | ET 200S base module (plug-in) |
| Approvals | CE, UL, CSA, ATEX (Zone 2) |
High-Speed PROFIBUS Connectivity
The Siemens 6ES7151-1CA00-0AB0 supports transmission rates up to 12 Mbps for rapid data exchange. This high speed ensures real-time communication between the master PLC and remote I/O stations. The module automatically detects the baud rate and adjusts its timing accordingly. Users can configure the network for optimal performance without manual settings.
Comprehensive Distributed I/O Management
This interface module manages up to 32 ET 200S I/O modules per station. This capacity accommodates large distributed I/O configurations for complex automation systems. Users can mix digital, analog, and functional modules on the same station. The module handles all communication and power distribution to the connected modules.
Galvanic Isolation for Network Protection
Optocouplers provide galvanic isolation between the PROFIBUS network and the station logic. This isolation prevents ground loops and protects against electrical transients. The module maintains signal integrity even in electrically noisy industrial environments. Users can deploy the interface in harsh conditions without performance degradation.
Advanced Diagnostics for Simplified Troubleshooting
Diagnostic memory of 256 bytes stores fault events and status information. Five LEDs provide immediate visual feedback on power, bus activity, and error conditions. Green LEDs indicate normal operation while red LEDs alert to faults. Users can access detailed diagnostics through PROFIBUS master configuration tools.
Compact ET 200S Form Factor
The interface module measures 90 x 120 x 40 mm and weighs only 0.24 kg. This compact design saves valuable space in control cabinets and enclosures. The module plugs directly into ET 200S base units for easy installation. Users can replace the module without disconnecting field wiring.
Low Power Consumption for Energy Efficiency
The Siemens 6ES7151-1CA00-0AB0 consumes only 120 mA from the 24V DC backplane supply. This low power draw minimizes heat generation and energy costs. The module operates reliably from 0°C to +60°C ambient temperatures. Users can deploy the unit in various industrial environments without thermal concerns.
