Siemens 6ES5948-3UA22 CPU Module | SIMATIC S5 Processor

Technical Specifications and Core Features

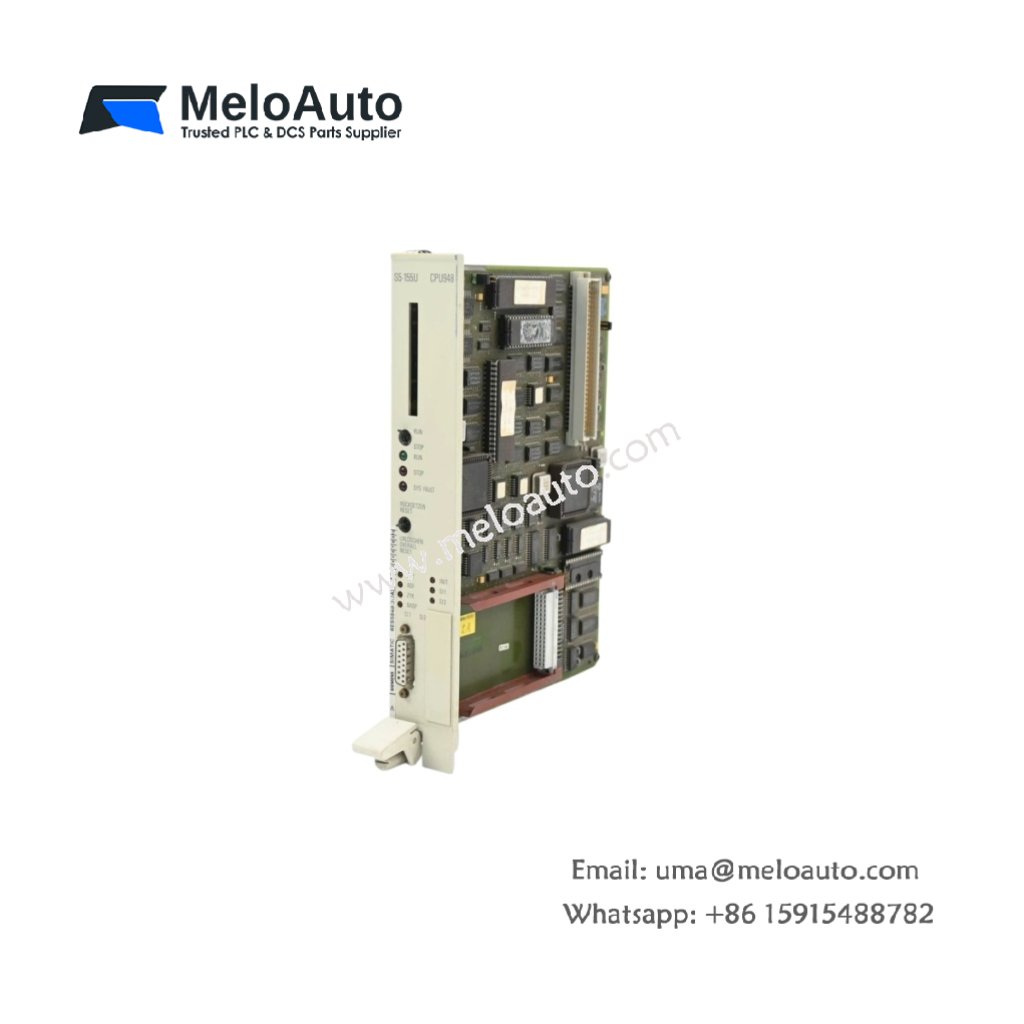

The Siemens 6ES5948-3UA22 central processing unit serves as the core component for SIMATIC S5 PLC systems. This CPU executes control programs and manages data processing for industrial automation tasks. The module features a modular design that integrates seamlessly with other S5 series components . Its dimensions measure approximately 10 cm x 20 cm x 15 cm and weigh about 1 kg . The CPU communicates with the system through the standard S5 backplane bus interface.

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5948-3UA22
Alternative Reference	6ES59483UA22
Product Family	SIMATIC S5
Programming Software	STEP 5
Processor Type	32-bit processor
I/O Points	12 points
Output Frequency	3000 Hz
Processing Speed	500 Hz
Program Capacity	100 MB
Data Capacity	100 GB
Operating Temperature	0°C to 105°C
Dimensions	10 cm x 20 cm x 15 cm
Weight	1 kg
Country of Origin	Germany
Product Status	Obsolete

Functional Capabilities

The 6ES5948-3UA22 provides high-speed data processing for complex logic operations and real-time control tasks . Its built-in self-diagnostic function monitors system status and reports faults for quick troubleshooting . The processor supports multiple communication protocols for data exchange with other modules and industrial equipment . Furthermore, the CPU demonstrates industrial-grade reliability with excellent noise immunity and durability . This processor also retains its program data reliably during power interruptions.

Application Scenarios

This CPU module suits automated production lines where precise control and data processing are essential . It performs effectively in industrial process control applications requiring stable and efficient operation . The 6ES5948-3UA22 also manages equipment such as motors, valves, and sensors in manufacturing environments . Many facilities continue to rely on this legacy processor to maintain their S5-based automation infrastructure.
