Technical Overview

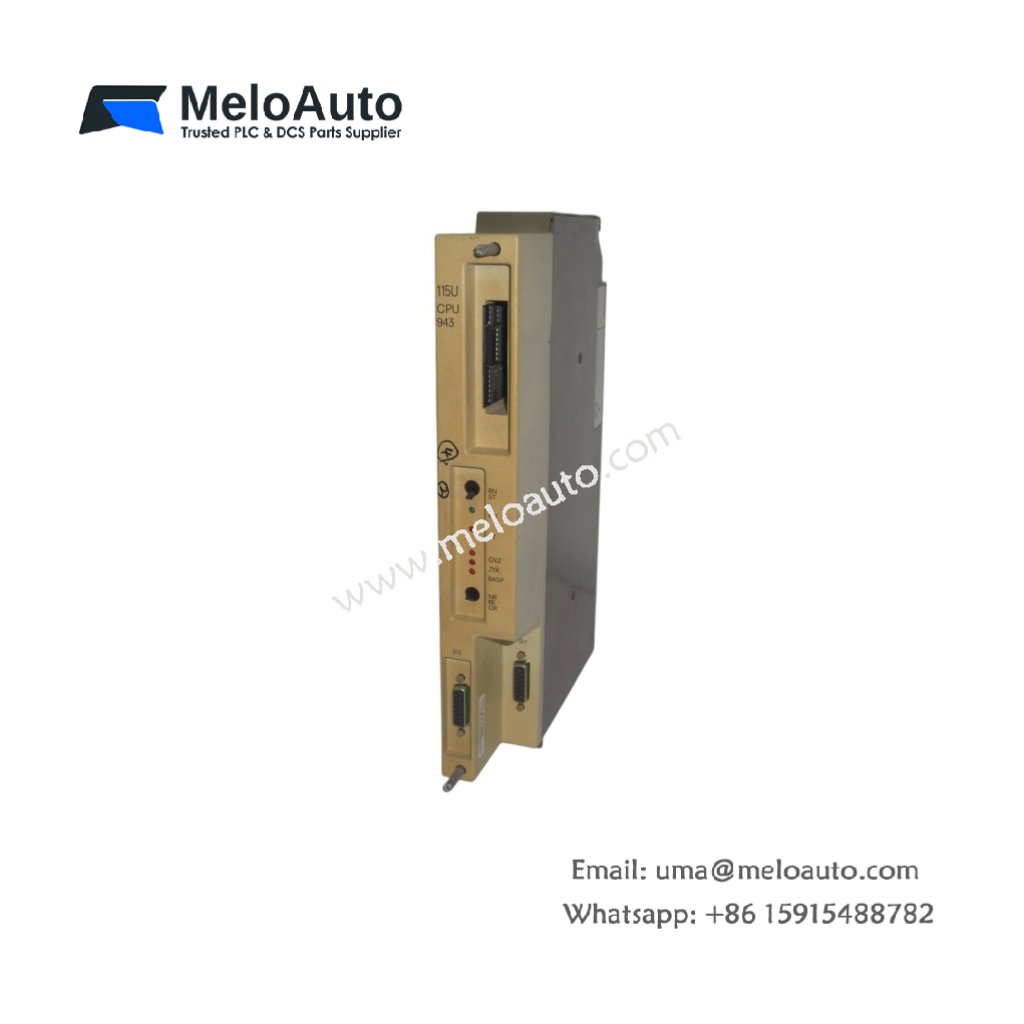

The Siemens 6ES5943-7UA21 is a central processing unit for the SIMATIC S5-115U programmable controller series. This CPU module executes user programs, processes I/O signals, and coordinates communication within the automation system. It provides ample memory capacity for complex control tasks and supports the standard STEP 5 programming language. The module includes a built-in interface for connecting a programming device or operator panel. An integrated real-time clock enables time-based control and event logging functions. This CPU occupies a single slot in the S5-115U chassis, making installation straightforward and efficient.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6ES5943-7UA21 |
| Product Type | Central Processing Unit |
| System Compatibility | SIMATIC S5-115U |
| Memory Type | RAM with battery backup |
| Memory Capacity | 16 KB |
| Programming Language | STEP 5 |
| Processing Speed | 1.6 ms per 1K instructions |
| I/O Points Supported | 4096 maximum |
| Communication Interface | Programming device/operator panel port |
| Real-Time Clock | Integrated (battery-backed) |
| Battery Type | 3.6V lithium |
| Battery Life | Approx. 5 years |
| Slot Requirement | 1 slot |
| Power Consumption | 5 W typical |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL508, CSA |
| Country of Origin | Germany |
Key Features
Battery-Backed Memory – The lithium battery preserves user programs and system data during power interruptions.
Integrated Programming Interface – The built-in port simplifies connection to programming devices and HMI panels.
Real-Time Clock – The onboard clock supports scheduled control and event logging functions.
High I/O Capacity – The CPU manages up to 4096 I/O points for large-scale automation systems.
Efficient Processing – The unit executes 1K instructions in 1.6 ms, ensuring responsive control.
STEP 5 Compatibility – Users can program the CPU using the familiar Siemens STEP 5 environment.
Applications
The Siemens 6ES5943-7UA21 performs reliably in manufacturing automation, process control, and material handling systems. It suits industries such as automotive production, chemical processing, and packaging where robust PLC control is essential.
