Bently Nevada 3300/05-23-00-00 8-Slot Rack

3300 Series Eight-Position Mounting Chassis

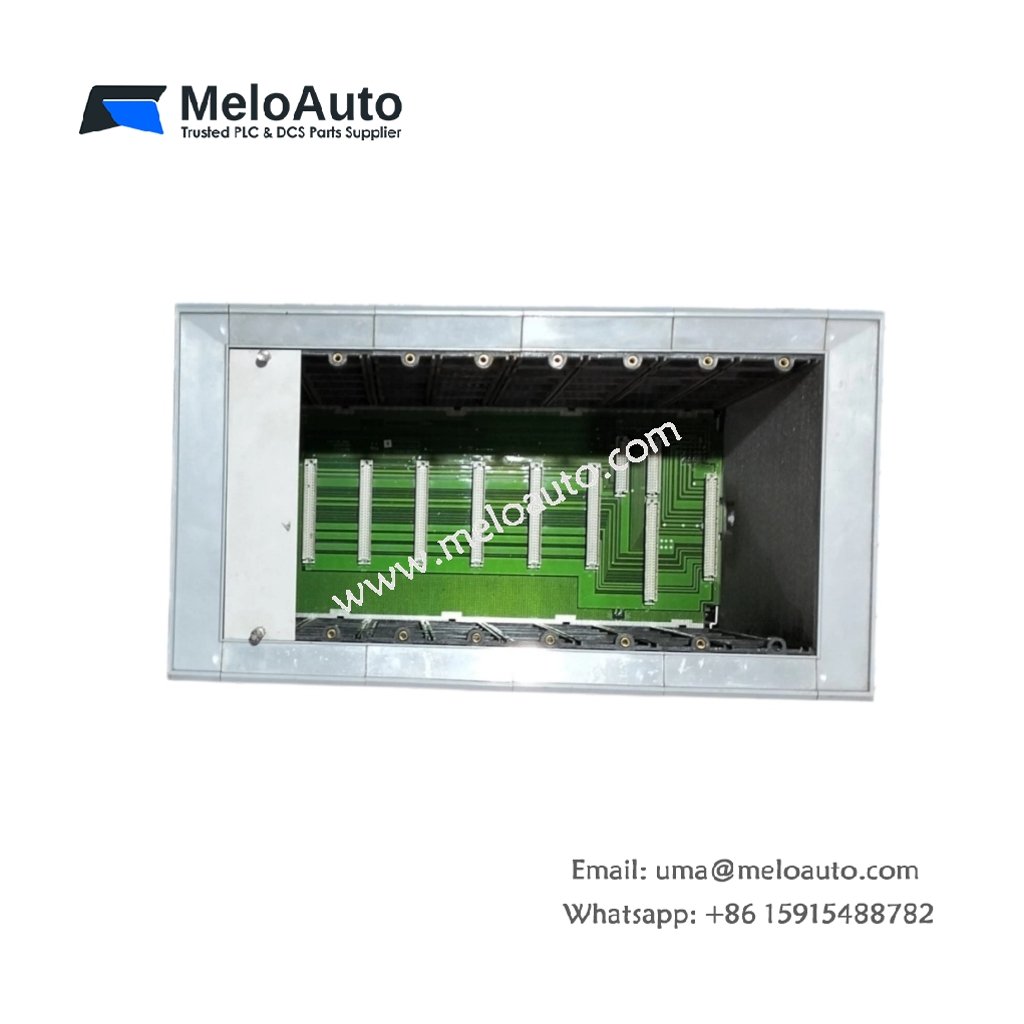

The 3300/05-23-00-00 provides an eight-slot chassis for housing 3300 Series monitoring modules. This rack accepts various vibration monitors, position transducers, and signal conditioners. It establishes a common backplane for power distribution and signal routing among all installed modules. The chassis also includes built-in termination facilities for field wiring connections.

Key Technical Specifications

Parameter	Specification
Model	3300/05-23-00-00
Series	3300 Series
Slot Capacity	Accommodates up to eight monitoring modules
Power Supply Input	Requires +24 Vdc at 2.5 A maximum
Backplane	Provides common data and power distribution bus
Field Connections	Includes screw-type terminal blocks
Fusing	Incorporates modular fuses per power rail
Mechanical Keying	Prevents incorrect module insertion
Operating Temperature	Functions from -20°C to +65°C
Storage Temperature	Withstands -40°C to +85°C
Dimensions	Measures 482.6 mm x 133.4 mm x 300.0 mm
Weight	Weighs approximately 4.5 kg
Mounting	Supports 19-inch rack or panel mounting
Material	Constructed from zinc-plated steel
Cooling	Uses natural convection design
Compliance	Meets CE and CSA safety standards

Chassis Architecture and Features

This chassis supplies power and signal connectivity to each inserted module. It maintains isolation between analog and digital circuits for noise reduction. The rack also supports redundancy by allowing dual power supply installations. Additionally, it provides a protective ground connection for the entire monitoring system. Each slot includes mechanical keying to prevent incorrect module placement.

Installation Guidelines

Mount the 3300/05-23-00-00 securely in the designated equipment cabinet first. Next, connect the primary power source to the input terminals. After that, install the modules one by one into the available slots. You must observe proper grounding procedures to maintain signal integrity. Subsequently, route all field wiring through the designated cable entry points.

Maintenance and System Integrity

This chassis requires minimal maintenance under normal operating conditions. However, you should periodically inspect the power supply connections for tightness. You must also verify that all module locks remain securely engaged. The rack provides clear LED indication for power and module status. We recommend you keep spare fuses available for quick replacement if needed.
