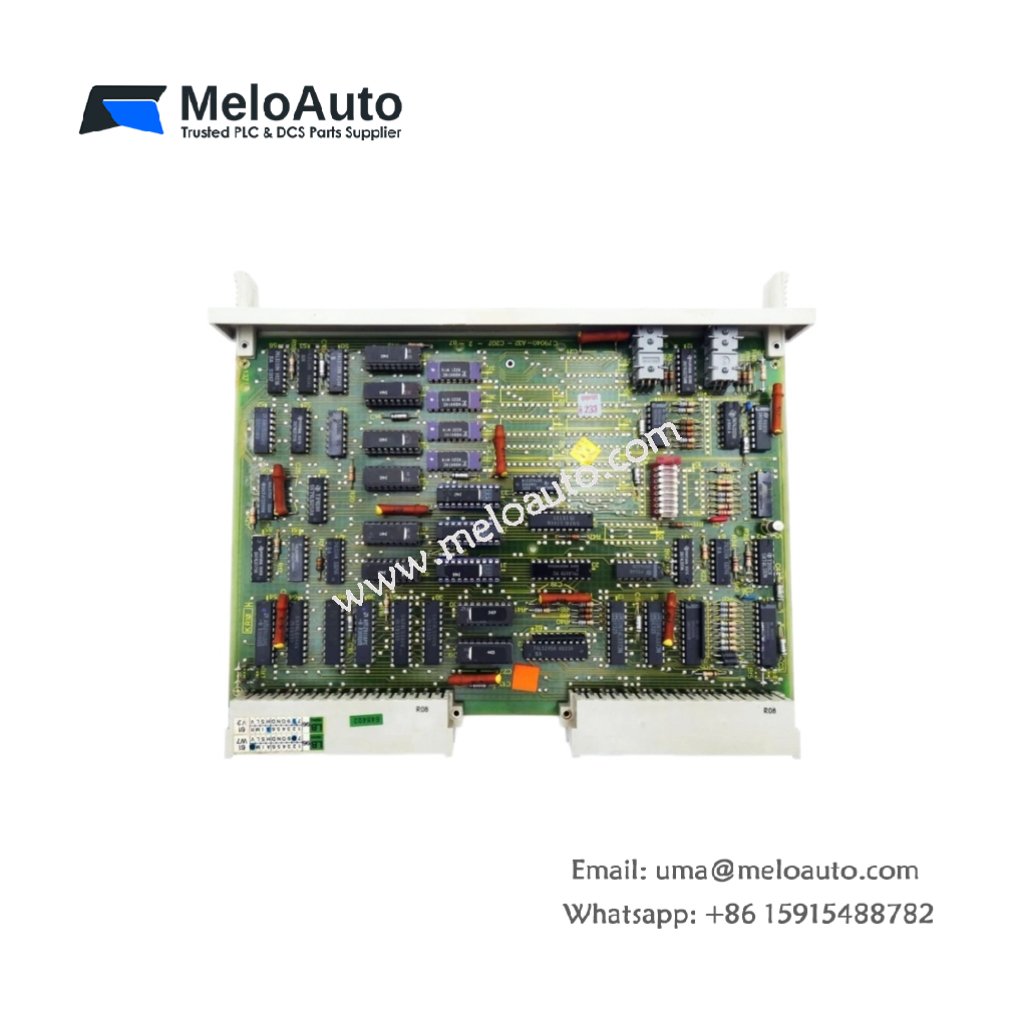

Siemens 6ES5926-3KA12 Control Board

Technical Overview

The Siemens 6ES5926-3KA12 is a control board designed for the SIMATIC S5 programmable controller series, specifically functioning as a connection module between the PLC and field devices. This unit serves as an interface for analog and digital signals, enabling data exchange and system expansion. It features two independent communication channels with integrated driver modules and output controllers.

The board supports variable signal processing and direct connection to the central controller’s bus. It includes built-in protection circuits against overvoltage and short circuits, ensuring reliable operation in industrial environments. The Siemens 6ES5926-3KA12 enhances system flexibility by providing additional connectivity options.

Technical Specifications

Key Features

Dual-Channel Design – The board provides two independent channels, enabling simultaneous signal processing for multiple field devices.

Integrated Output Controllers – Built-in drivers allow direct connection to actuators without additional interface modules.

Overvoltage Protection – The board protects itself and connected devices from voltage spikes and short circuits.

Bus Interface – The module connects directly to the S5 backplane bus for data exchange with the central controller.

Wide Compatibility – The board supports both analog and digital signal types for flexible system integration.

Compact Form Factor – The board fits seamlessly into the S5 chassis, optimizing space utilization.

Applications

The Siemens 6ES5926-3KA12 suits industrial automation systems requiring reliable signal conversion and field device connection. It is commonly used in manufacturing, process control, and material handling systems.
