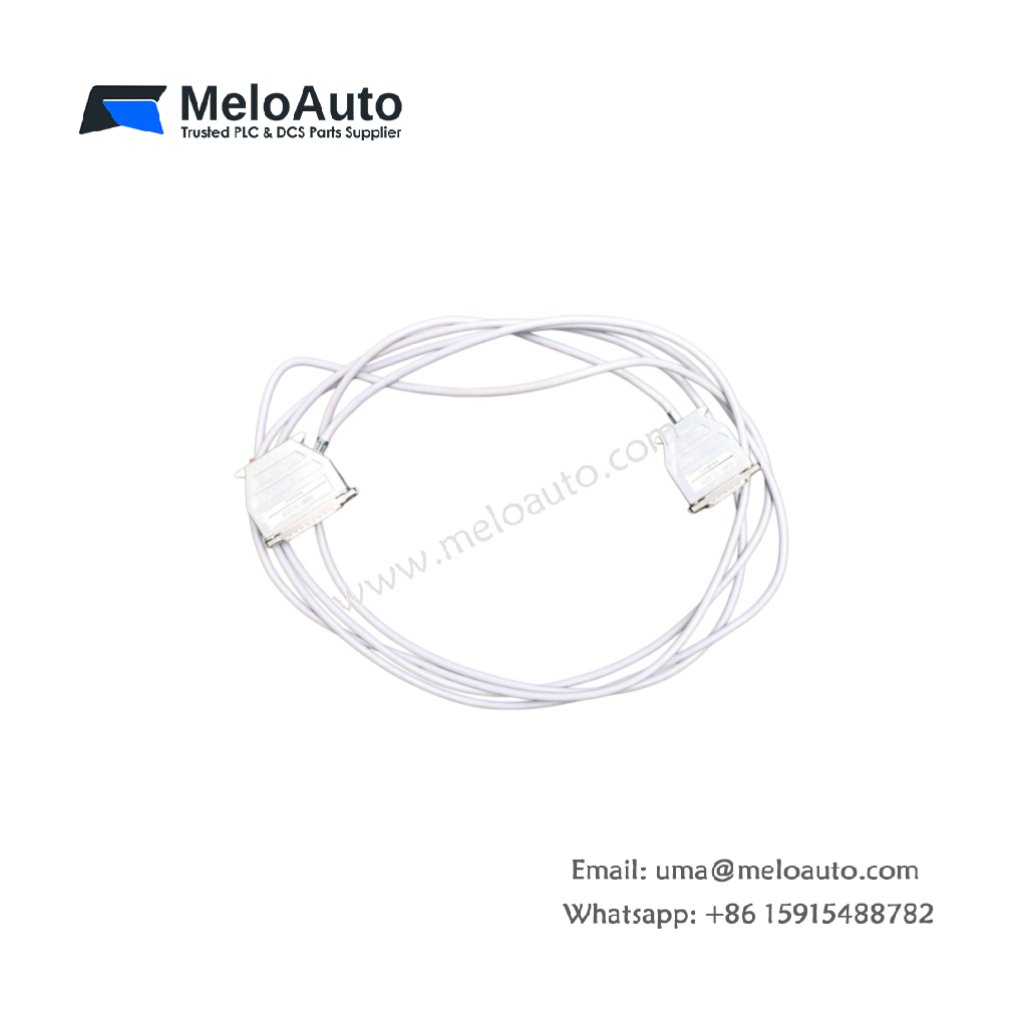

Siemens 6ES5777-0BB01 Bus Terminal

Technical Overview

The Siemens 6ES5777-0BB01 is a bus terminal module designed for the SIMATIC S5 programmable controller series. This unit acts as a termination element for the S5 bus system, ensuring proper signal reflection and data integrity across the network . It belongs to the BT 777-0 family and provides a reliable connection point for the S5 bus communication backbone . The module plays a crucial role in maintaining stable data transmission between the CPU, I/O modules, and other peripheral devices .

This bus terminal features a robust construction that withstands typical industrial environments. It includes standard Siemens connectors for easy integration into existing S5 systems. The module supports high-speed data communication within the PLC rack, ensuring minimal signal degradation. An integrated termination resistor prevents signal reflection at the end of the bus line. The unit’s compact design allows installation in space-constrained control cabinets.

Technical Specifications

Key Features

S5 Bus System Compatibility – This module ensures reliable termination and communication within the S5 bus network.

Compact and Lightweight Design – At 0.439 lb, the module saves valuable panel space.

Active Product Status – The module remains in production, ensuring ongoing availability .

RoHS Compliant – The module meets current environmental standards .

High-Speed Data Transmission – The bus terminal supports efficient communication between PLC modules.

Secure Connections – Standard Siemens connectors ensure reliable physical connections.

Applications

The Siemens 6ES5777-0BB01 suits industrial automation systems using the SIMATIC S5 platform. It excels in manufacturing, process control, and legacy system maintenance where reliable bus communication is essential.
