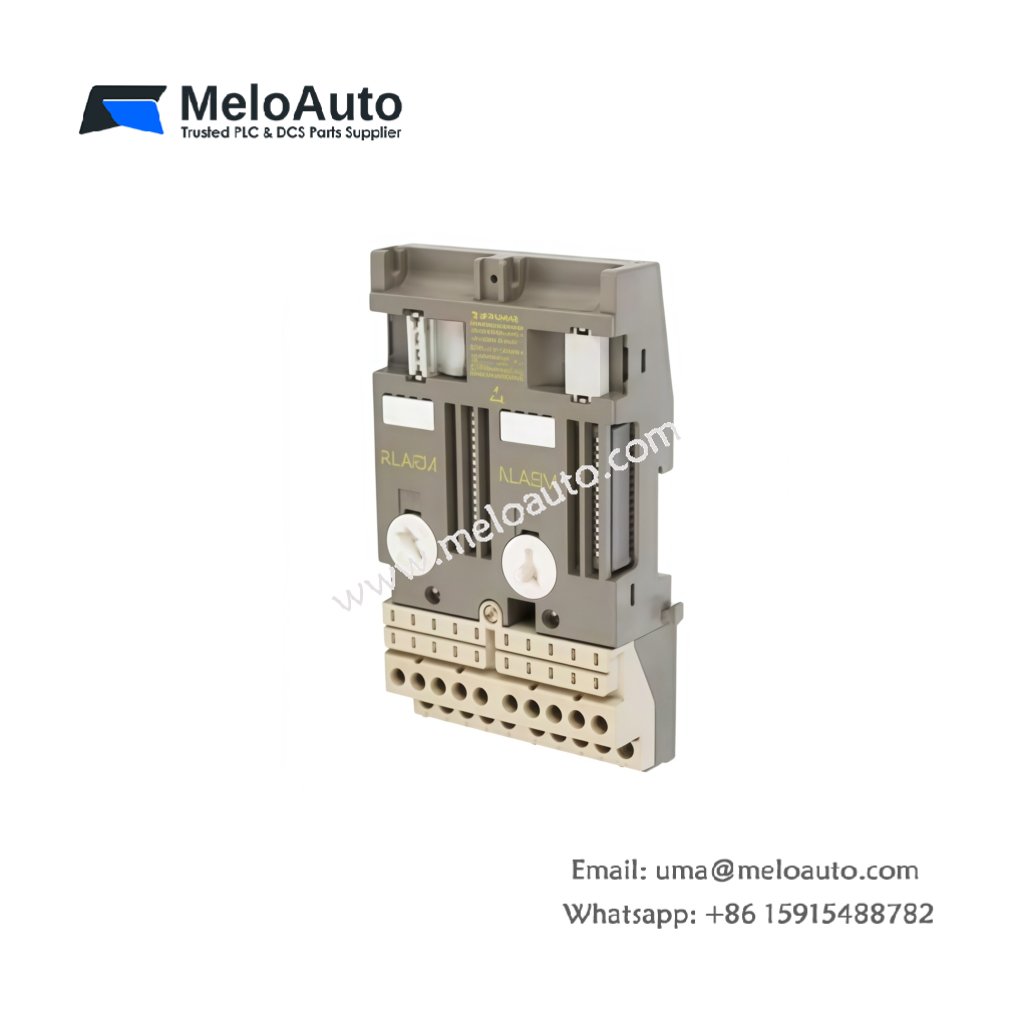

Siemens 6ES5700-8MB21 Bus Module

The Siemens 6ES5700-8MB21 provides a passive backplane connection for SIMATIC S5 systems. This module supports reliable communication between the CPU and I/O cards. It measures 232 mm in width and 17 mm in depth. The unit weighs approximately 0.53 kg for straightforward handling.

Key Technical Specifications

Parameter	Value
Product Model	Siemens 6ES5700-8MB21
Category	Bus Module / Backplane Connector
Dimensions (W x H x D)	232 mm x 74 mm x 17 mm
Weight	0.53 kg (530 g)
Bus Interface	1 x 16-pin DIN 41612 male connector
PCB Layers	Single-layer printed circuit board
Guide Rails	2 x metal rails for module fixing
Energy Storage	None (fully passive component)
Mounting Method	Screw fixation on S5 mounting rail
Operating Voltage	5 V DC (supplied via backplane bus)

Mechanical Layout and Passive Design

The Siemens 6ES5700-8MB21 uses a single-layer PCB for signal routing. Two metal guide rails secure each connected I/O module in place. You will find one 16-pin DIN 41612 male connector on this board. This connector creates a direct electrical path without active components. Consequently, the module introduces no signal delay or energy loss. The passive design also eliminates any need for firmware updates.

Installation Steps for the Rack System

First, place this bus module onto a standard S5 mounting rail. Second, use four M4 screws to fix the board firmly. Third, slide your I/O modules carefully into the metal guide rails. Finally, connect each module to the 16-pin DIN connector. This module requires no external power supply for its operation. Always verify compatibility with your specific S5 central controller.
