User Interface for Machine-Level Control

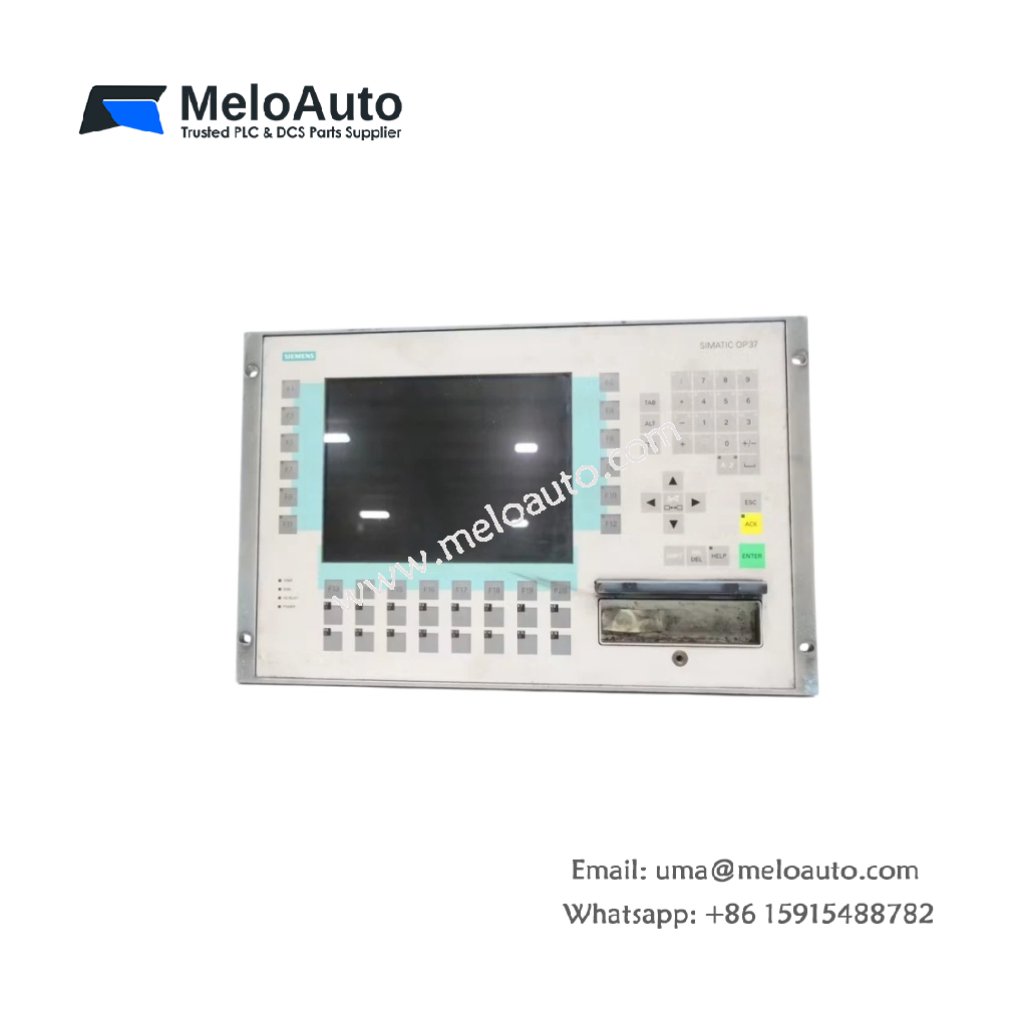

This operator panel provides a graphical interface for your industrial automation system. The Siemens 6AV3637-1ML00-0FX0 connects directly to SIMATIC S5 or S7 controllers via serial communication. A monochrome LCD screen displays process values and alarm messages clearly. Twenty-four tactile keys allow operators to navigate menus and enter data efficiently. Consequently, this HMI unit enhances machine operability without requiring a full PC.
Display & Input Specifications
The Siemens 6AV3637-1ML00-0FX0 features a 10-inch monochrome screen with backlighting. You can adjust the contrast using a dedicated potentiometer on the rear panel. Eight soft keys support user-defined functions for specific machine operations. Additionally, twelve function keys provide direct access to frequently used screens. A built‑in real‑time clock time‑stamps alarms and events accurately.
| Parameter | Detailed Specification |
|---|---|
| Dimensions (H x W x D) | 15.0 cm x 33.0 cm x 7.0 cm |
| Weight | 1.8 kg (3.97 lbs) |
| Display Type | 10-inch monochrome LCD |
| Resolution | 640 x 480 pixels (VGA) |
| Backlight | CCFL (replaceable) |
| Number of Keys | 24 tactile membrane keys |
| Soft Keys | 8 (user-programmable) |
| Function Keys | 12 (direct access) |
| Communication Ports | 1 x RS232, 1 x RS485 (TTY) |
| Real-Time Clock | Built-in with battery backup |
| Energy Storage | Lithium battery for clock and RAM |
| Protection Rating | IP65 (front panel) |
Connectivity & System Integration
You connect the Siemens 6AV3637-1ML00-0FX0 to your PLC using the RS232 or RS485 port. The panel supports the AS511 protocol for SIMATIC S5 controllers. For S7 systems, it uses the MPI interface without additional converters. You configure all screen layouts using the ProTool software package. The panel then stores your project in its internal flash memory.
Installation & Field Mounting
You mount this operator panel into a standard control cabinet cutout. The mounting clips secure the unit without special tools. After installation, you connect the 24V DC power supply to the rear terminals. The front panel seals completely against dust and moisture. Therefore, this HMI operates reliably in harsh industrial environments.
