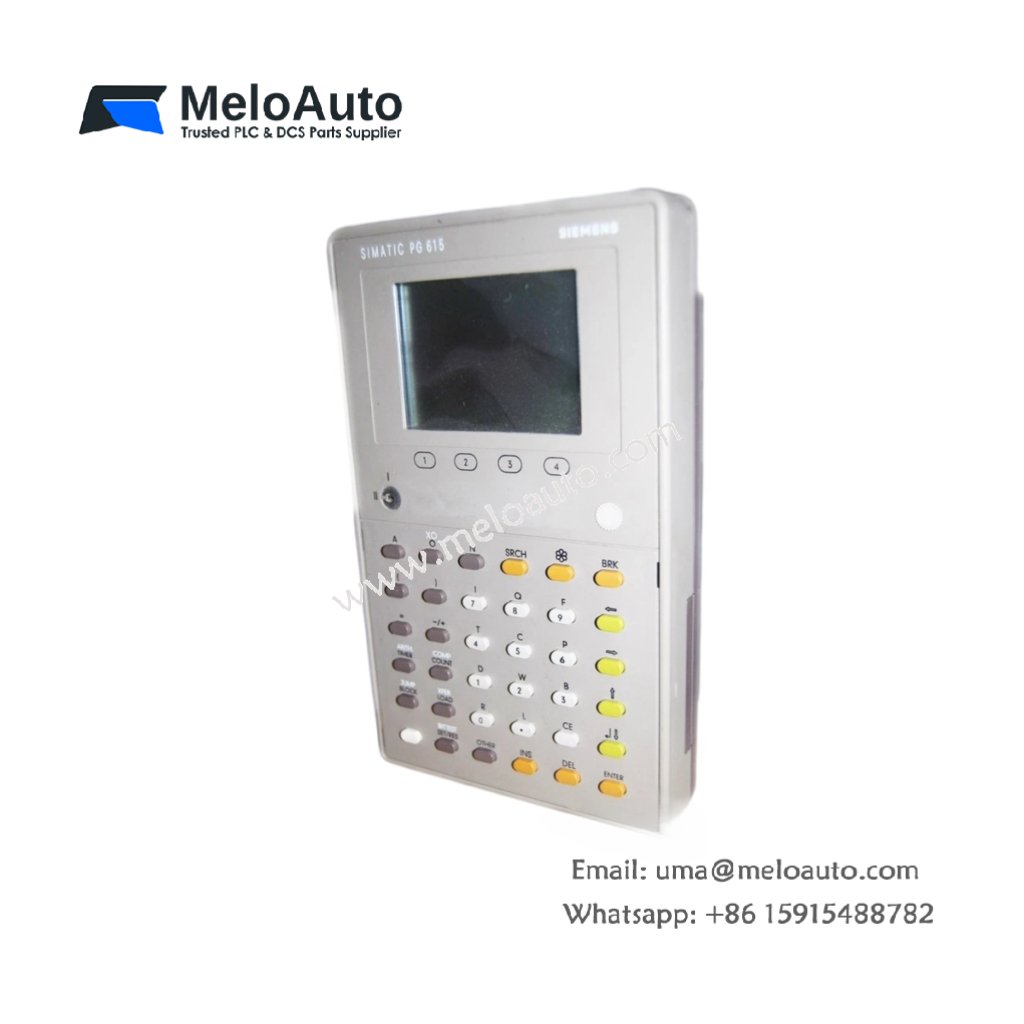

Siemens 6ES5615-0UB11 | SIMATIC S5 Hand Held Programmer

The Siemens 6ES5615-0UB11 provides portable programming access to SIMATIC S5 controllers. This compact device connects directly to the PLC without requiring a computer. You can upload, download, and monitor program logic using the built-in keypad. It serves as an essential tool for field technicians and maintenance engineers. Consequently, you can perform quick edits without carrying a laptop to the machine.

Technical Specifications Overview

Parameter	Detailed Specification
Model	Siemens 6ES5615-0UB11
Category	SIMATIC S5 Hand Held Programmer (PG 615)
Display Type	LCD, 2 lines x 16 characters (backlit)
Keypad	38 membrane keys with tactile feedback
Interface	AS511 (5-pin round DIN connector)
Compatibility	SIMATIC S5 CPUs (115U, 135U, 155U)
Supported Functions	Program upload/download, block search, force, modify
Internal Memory	16 KB RAM (battery-backed)
Power Supply	9V DC (external adapter or PLC connection)
Power Consumption	2 W (typical)
Energy Storage	Replaceable lithium battery for RAM retention
Dimensions (approx.)	220 mm x 110 mm x 35 mm
Weight	0.45 kg (450 grams) with battery
Cable Length	2.5 meters (permanently attached)
Operating Temperature	0°C to 50°C

Functional Features and Programming Capabilities

The Siemens 6ES5615-0UB11 supports statement list (STL) programming for S5 systems. You can navigate through program blocks using the arrow keys and numeric pad. The LCD screen shows rungs, timers, counters, and register values clearly. Furthermore, the device allows online monitoring of I/O status and bit conditions.

This hand held programmer includes a non-volatile buffer for temporary program storage. You can copy entire PLC programs and transfer them to another CPU. The battery backup preserves this data for up to three months. Additionally, the unit supports error diagnostics and system reset functions.

Operation and Usage Guidelines

First, connect the Siemens 6ES5615-0UB11 to the AS511 port on your S5 CPU. Next, power the device using the supplied 9V adapter or bus power. Then, select the desired function from the main menu on the screen. Finally, enter addresses and values using the hexadecimal keypad layout.

You should replace the internal lithium battery every two years. The device shows a low battery warning before data loss occurs. Always disconnect the programmer before performing firmware updates on the PLC. Furthermore, avoid using the device in areas with heavy electromagnetic interference.

This hand held programmer works perfectly for emergency repairs and field adjustments. It cannot handle large program files exceeding the 16 KB memory limit. For bigger projects, you still need a PC-based programming software. The Siemens 6ES5615-0UB11 remains a reliable backup tool for legacy system maintenance.
