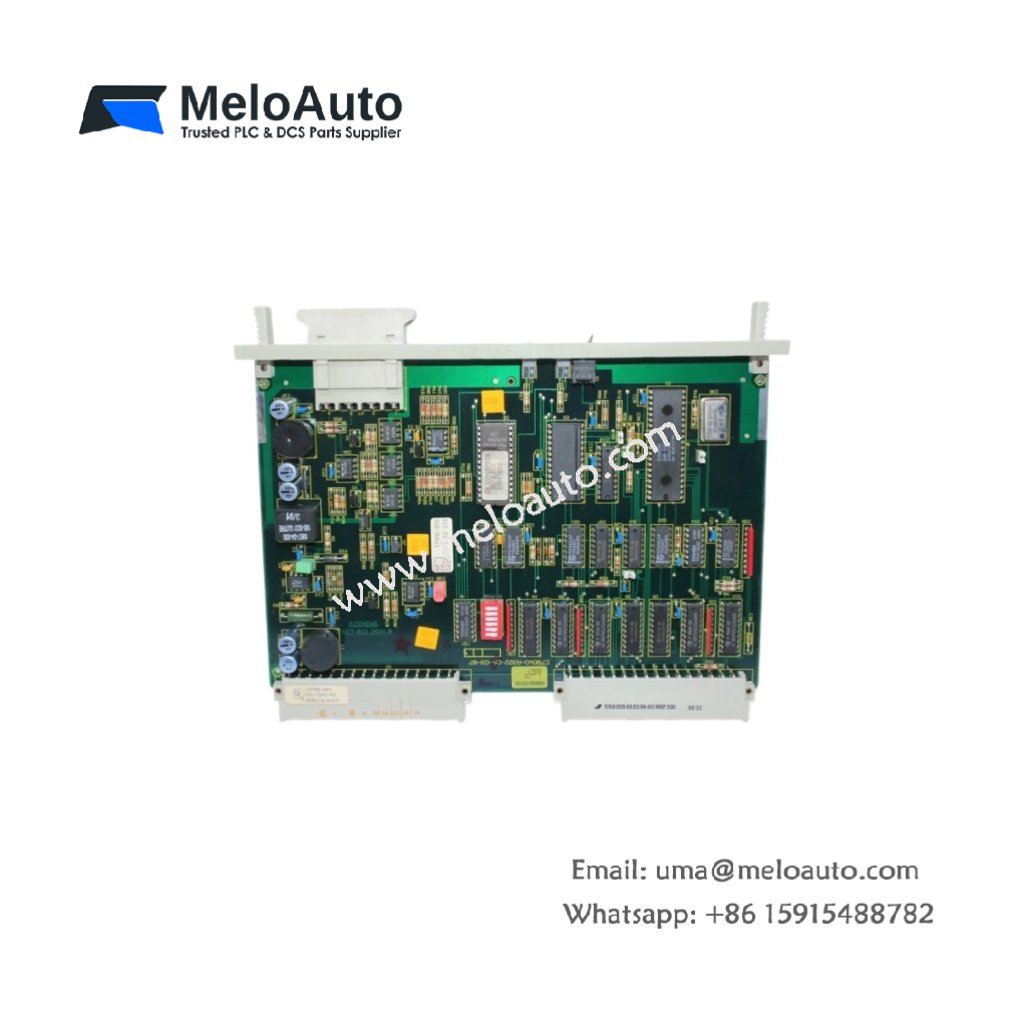

Siemens 6ES5580-3UA11 Interface Module

Reliable Signal Interconnection for SIMATIC S5

The 6ES5580-3UA11 interface module provides reliable signal interconnection between SIMATIC S5 programmable controllers and field devices. This module functions as a universal interface for connecting peripherals to the host control system. It ensures stable data transmission between the CPU and distributed I/O stations. Consequently, this module enhances system scalability and flexibility for complex automation architectures.

Technical Specifications

Signal Transmission and System Integration

The 6ES5580-3UA11 handles signal transmission between the controller and peripheral components. It serves as a reliable interface for connecting I/O modules and other peripherals. The module ensures stable data exchange across the automation system. Furthermore, it supports seamless integration into S5 rack configurations. This interface module also provides isolation between the CPU and field devices, protecting against electrical noise and voltage spikes. Consequently, it enhances system reliability in demanding industrial environments.

Physical Characteristics and Installation

This interface module fits standard S5 rack slots with its compact single-width design. Its robust construction withstands typical industrial environments including vibration and temperature variations. The module’s design allows straightforward installation without special tools. It also provides secure connections for field wiring through screw terminals. The front panel includes LED indicators for operational status and diagnostics. Users can quickly identify module health and signal activity.

Compatibility and Application

The 6ES5580-3UA11 works with SIMATIC S5-115U, S5-135U, and S5-155U PLC systems. It interfaces with a wide range of I/O modules and peripherals. This module suits applications requiring reliable signal distribution and interconnection. It also supports expansion of existing S5 systems with additional I/O points.

Product Status

The 6ES5580-3UA11 forms part of the legacy SIMATIC S5 product line. Siemens has discontinued this module as a current production item. Despite its legacy status, users can still source this module through industrial automation distributors. Many suppliers offer refurbished units with warranty coverage.
