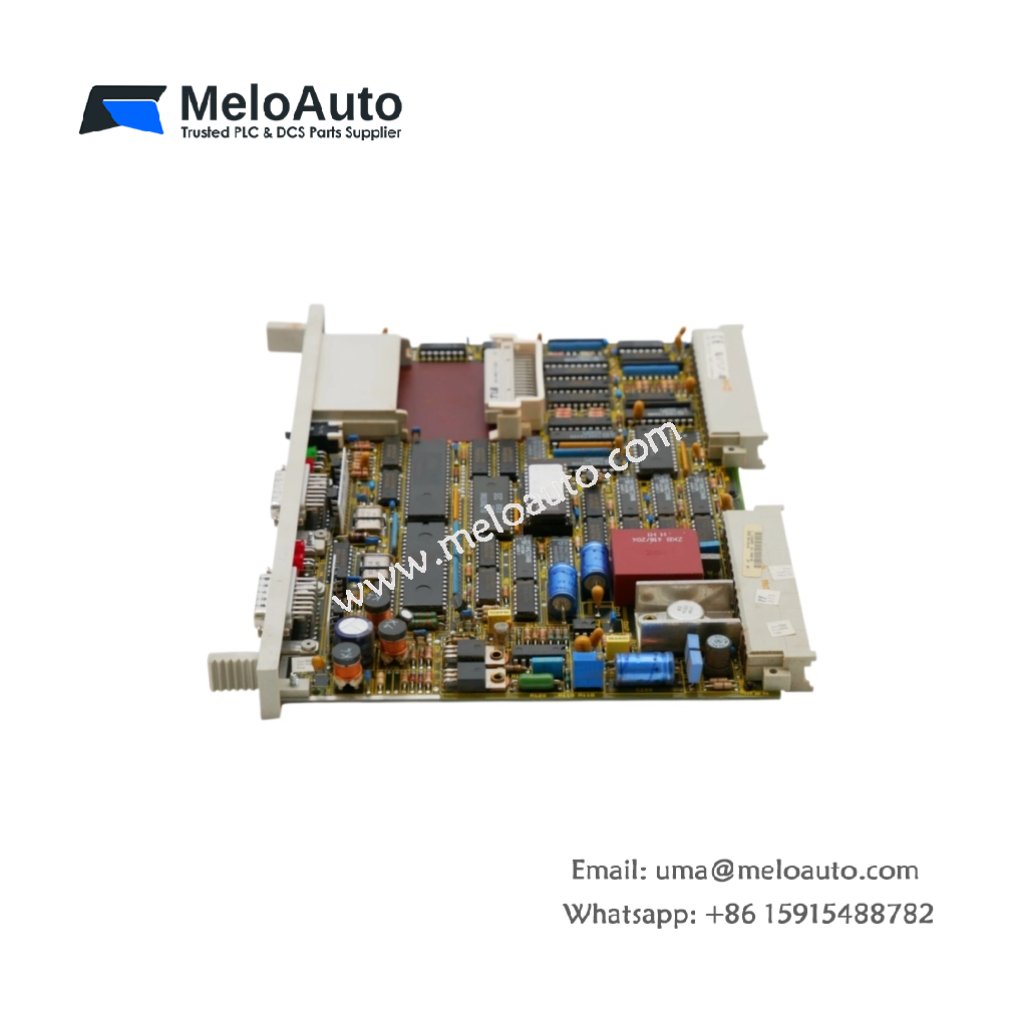

Siemens 6ES5530-3LA12 SIMATIC S5 CP 530 Communications Processor

The 6ES5530-3LA12 acts as a dedicated communications processor for the SIMATIC S5 system. This CP 530 module handles serial data exchange on SINEC L1 networks. It effectively relieves the central CPU from complex communication tasks .

You can deploy this unit as either a master or a slave on the bus. The 6ES5530-3LA12 supports the 3964R and RK512 protocols for secure data transmission . It also connects legacy HMI panels or printers directly to the automation rack.

Hardware Architecture and Memory Storage

This communications processor features a modular memory concept. A single slot on the board accepts a standard 375 submodule . Users can install RAM, EPROM, or EEPROM cartridges here. The 6ES5530-3LA12 supports memory expansion up to 32 KB, which is essential for complex telegrams.

Additionally, the module does not require an external power supply. It draws its operational voltage directly from the S5 backplane. This design reduces wiring clutter inside the control cabinet.

Interface Specifications and Physical Weight

The 6ES5530-3LA12 provides two distinct 15-pin D-sub connectors. One interface connects to a programming device (PG). The second interface supports the SINEC L1 bus loop. Both ports utilize 20 mA TTY current loop technology, ensuring signal integrity over long distances .

Below are the verified physical parameters for this CP.

Integration and Operational Reliability

This processor is built specifically for harsh industrial environments. It operates reliably within a temperature range of 0°C to 60°C. The 6ES5530-3LA12 fits directly into the S5-100U mounting rack.

LED indicators on the front panel provide real-time diagnostics. You can easily monitor transmit (TXD) and receive (RXD) data activity. This feature makes troubleshooting the 6ES5530-3LA12 much faster for maintenance teams.
