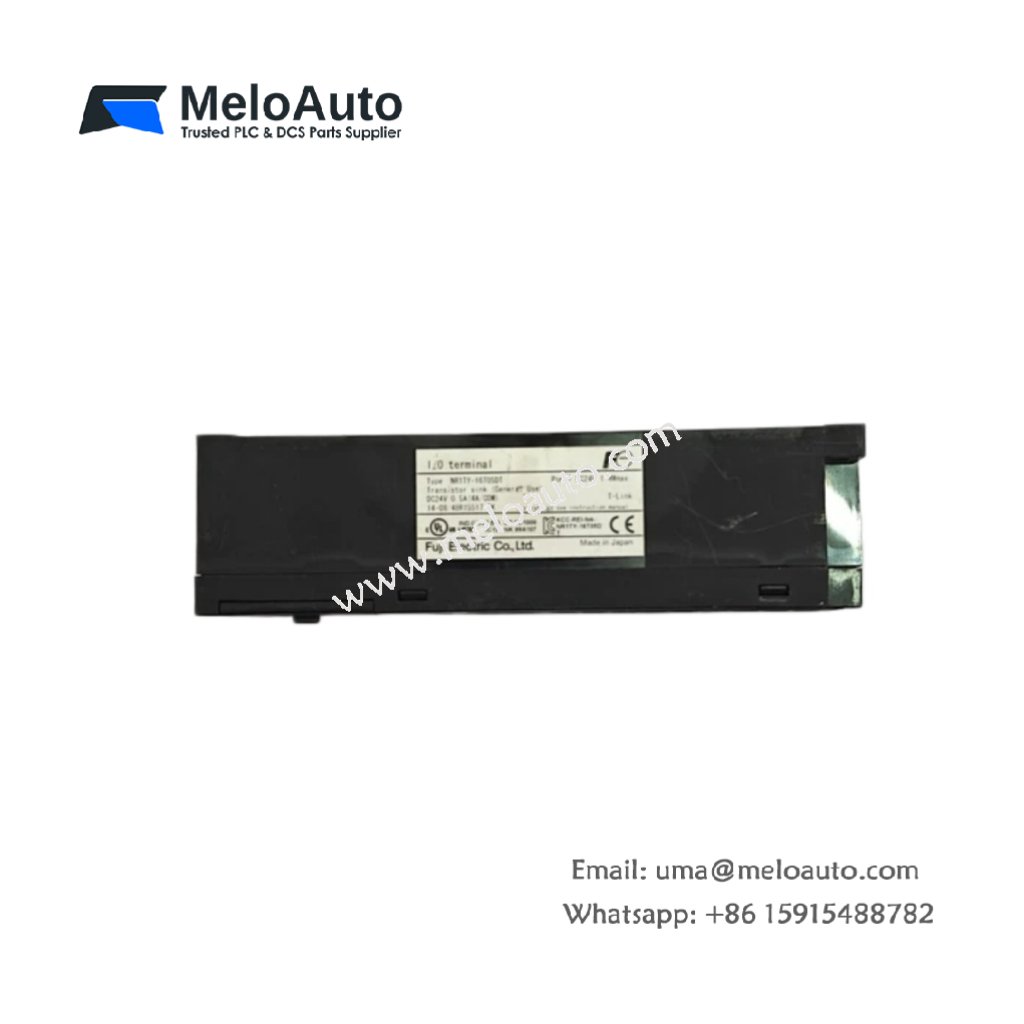

Fuji NR1TY-16T05DT | 16 Output I/O Terminal

The Fuji NR1TY-16T05DT provides sixteen transistor outputs in a compact terminal block. This unit connects directly to field devices without extra wiring. It saves significant cabinet space compared to traditional modules. Many system integrators choose this terminal for distributed I/O applications.

Complete Technical Specifications

Parameter	Specification
Dimensions (W x H x D)	175 mm x 80 mm x 55 mm
Weight	0.38 kg
Number of Output Points	16 channels
Output Type	Transistor, NPN
Output Current per Channel	0.5 A at 24V DC
Total Output Current	8 A maximum
Internal Energy Storage	470 µF capacitor
Operating Voltage	24V DC +20% / -15%
Power Consumption	4 W typical
Isolation Method	Optocoupler per channel
Response Time	0.3 ms maximum
Terminal Type	Spring clamp (0.2–2.5 mm²)

Physical Layout and Connection Design

The Fuji NR1TY-16T05DT weighs only 0.38 kilograms for easy mounting. Its 175 mm width accommodates sixteen distinct output channels. Each channel includes a green status LED for visual feedback. Spring clamp terminals accept solid or stranded wires quickly. A 470 µF capacitor provides short‑term energy buffering. The housing uses flame‑retardant plastic for safety compliance.

Output Characteristics and Performance

This terminal delivers 0.5 amperes per channel continuously. The total combined output reaches 8 amperes across all channels. Therefore, you can drive multiple small solenoids simultaneously. The response time stays under 0.3 milliseconds. Consequently, this unit suits high‑speed sorting and pick‑and‑place machines. Each output includes optocoupler isolation for noise immunity.

Installation and Wiring Guidelines

Mount the Fuji NR1TY-16T05DT on a standard 35 mm DIN rail. First, disconnect the 24V power supply completely. Then strip each wire to 8 mm for the spring clamp. Insert the wire until you feel a positive stop. Connect the common terminal to 0V for NPN configuration. Finally, apply power and test each output individually. Always place a fuse on the common line for protection.

System Integration and Application Notes

This I/O terminal works with any PLC or fieldbus coupler. It requires a 24V DC sink input on the receiving device. Typical applications include conveyor zone control and valve actuation. The unit also suits LED indicator panels or small relays. For larger loads, add external interposing relays. The compact design allows mounting in shallow enclosures.
