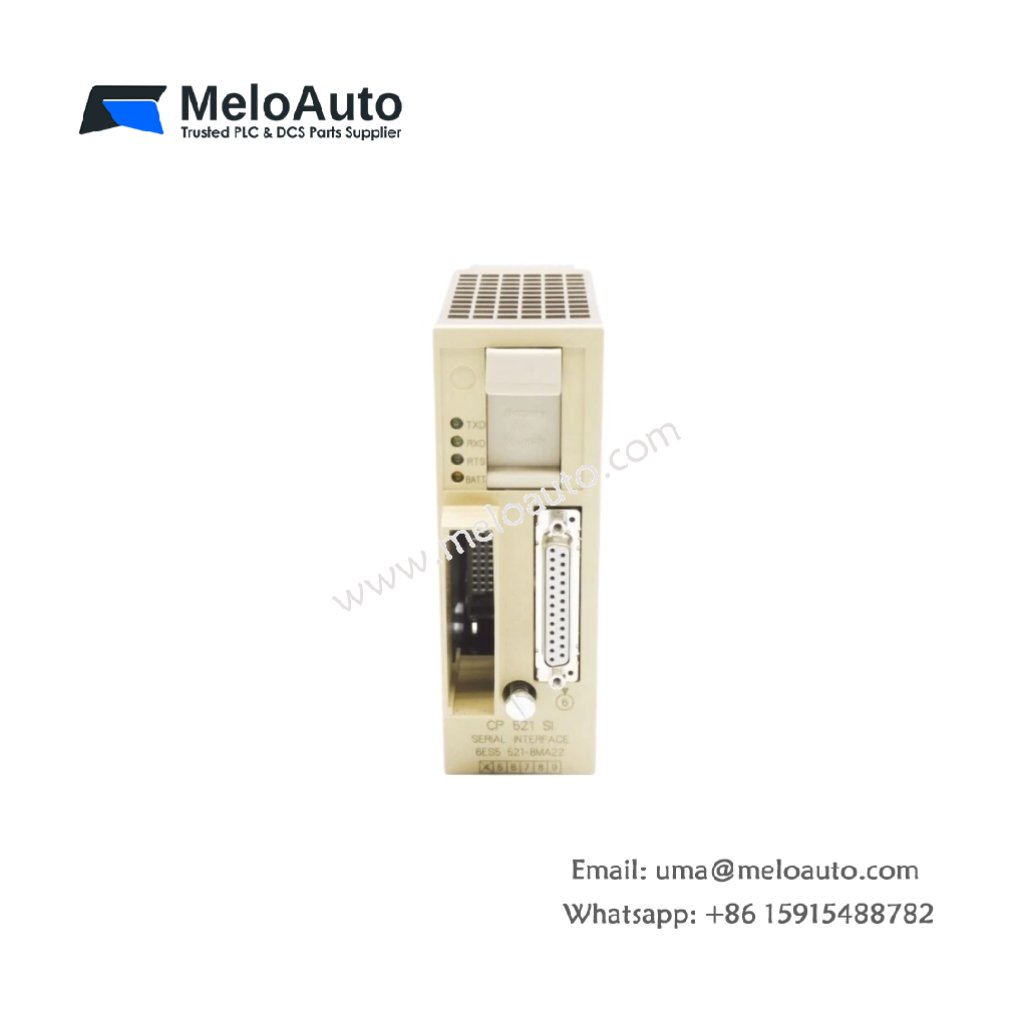

Siemens 6ES5521-8MA22 Communications Processor

Serial Communication for S5-135U/155U Systems

The Siemens 6ES5521-8MA22 communications processor manages serial data exchange between S5-135U/155U controllers and external devices. This module handles all communication tasks, offloading the CPU from protocol processing. Industrial networks with printers, barcode scanners, and operator panels benefit from this dedicated communication engine.

Communication Specifications and Protocol Support

This communications processor features two independent RS-232C ports for flexible device connectivity. Each port supports data rates from 300 bps to 38.4 kbps with software-selectable parameters. An integrated 8 KB buffer stores incoming and outgoing messages for reliable data exchange. Furthermore, the module supports the 3964R and RK512 protocols for Siemens device communication.

Parameter	Specification
Brand	Siemens
Model	6ES5521-8MA22
Number of Ports	2 (independent)
Interface Type	RS-232C
Data Rates	300 bps to 38.4 kbps
Buffer Memory	8 KB
Protocols Supported	3964R, RK512, ASCII
Handshake	Hardware (RTS/CTS)
Dimensions (W x H x D)	50 mm x 125 mm x 118 mm
Weight	0.42 kg
Power Consumption	5 V DC at 300 mA
Compatible CPUs	S5-135U, S5-155U
Operating Temperature	0°C to 55°C

Data Handling and Flow Control

The Siemens 6ES5521-8MA22 utilizes hardware handshake lines for reliable data flow control on each port. The 8 KB buffer prevents data loss during high-speed transmissions. Users can configure data bits, stop bits, and parity through the STEP 5 software. Additionally, the module supports both half-duplex and full-duplex communication modes.

Physical Design and Installation

This communications processor features a 50 mm housing that fits standard S5-135U and S5-155U rack slots. The unit weighs approximately 0.42 kilograms, allowing straightforward installation. Two 9-pin D-sub connectors on the front panel provide the serial interfaces. The module includes LED indicators for power and data transmission status on each port.

System Integration and Configuration

You can install this communications processor in any standard S5-135U or S5-155U rack slot. The module automatically maps to the CPU’s I/O address space for data access. Users configure communication parameters using the STEP 5 programming software. Moreover, the module supports custom protocol definition for specialized equipment integration.

Diagnostic Features and Status Monitoring

Front-panel LEDs indicate power, transmit activity, receive activity, and error conditions for each port. The module stores diagnostic information about communication errors in an internal buffer. A built-in loopback test verifies port functionality during system startup. Furthermore, the module supports remote diagnostics through the backplane bus.
