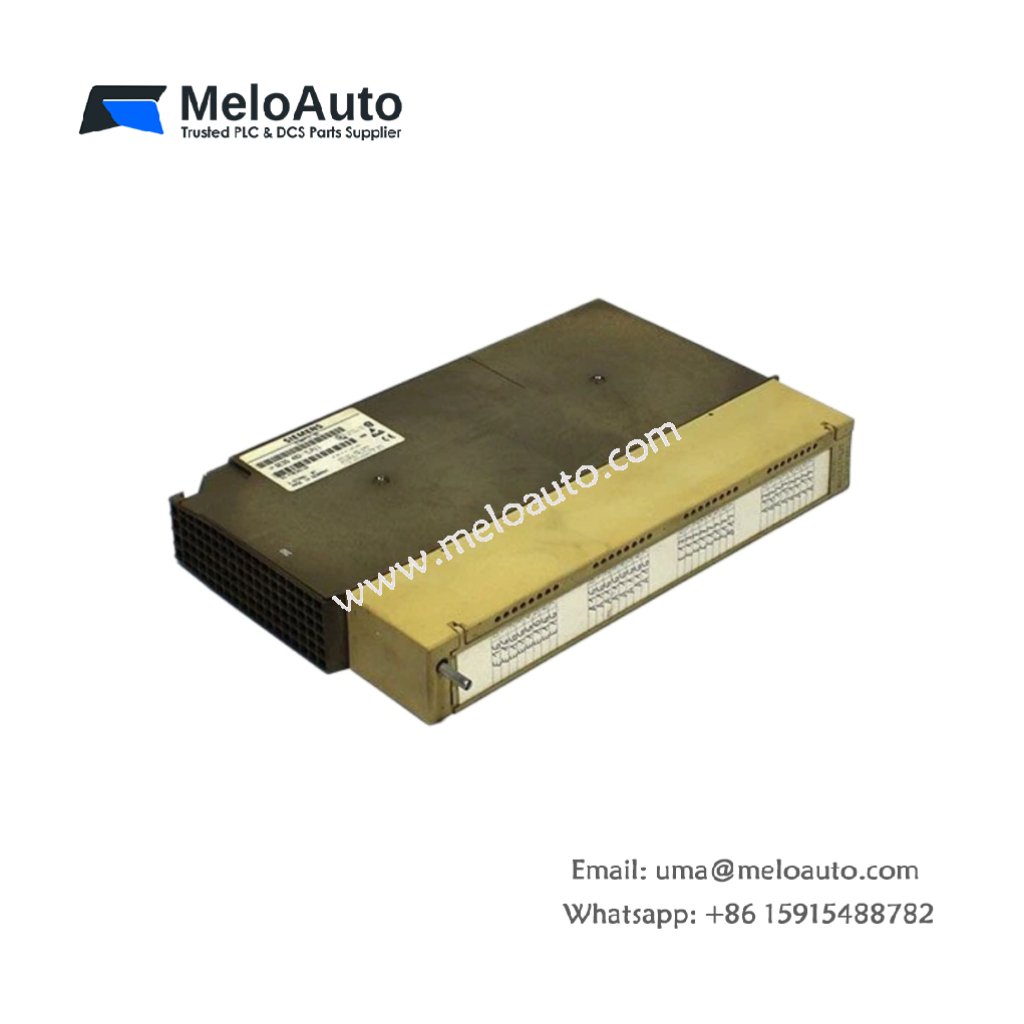

Siemens 6ES5482-7LA11 | 16/16 Digital I/O Module for S5 PLC

32-Channel Mixed I/O Module for SIMATIC S5 Systems

The 6ES5482-7LA11 digital input/output module combines 32 input and output channels within a single unit for the SIMATIC S5 automation platform. This module provides 16 inputs and 16 outputs, offering a balanced solution for applications requiring both sensing and actuation. Consequently, this module saves valuable rack space and simplifies system configuration. It suits a wide range of industrial control tasks, including conveyor systems and packaging machinery.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Line	SIMATIC S5
Model	6ES5482-7LA11
Module Type	Digital Input/Output Module
Input Channels	16
Output Channels	16
Input Voltage	24 V DC
Input Current	8 mA per channel (nominal)
Input Delay	< 5 ms (typical)
Output Voltage	24 V DC
Output Current	0.25 A per channel
Short-Circuit Protection	Yes
Galvanic Isolation	Yes (optoelectrical)
Power Dissipation	4 W (max.)
Weight	0.55 kg
Operating Temperature	0°C to 60°C
Connection Type	Screw terminal
Compatibility	S5-115U, S5-135U, S5-155U
Certifications	CE, UL, CSA

Input Characteristics and Performance

Each input channel on the 6ES5482-7LA11 draws 8 mA nominal current at 24 V DC. The module provides a response time of less than 5 ms for fast signal capture. Furthermore, it features optoelectrical isolation between inputs and the backplane bus. This design protects the controller from electrical noise and voltage spikes. In addition, LED indicators on the front panel display real-time status for each input channel.

Output Characteristics and Protection

The 6ES5482-7LA11 offers 16 output channels with a current capacity of 0.25 A per channel. Each output includes short-circuit protection to prevent damage from wiring faults. Moreover, the module’s protection circuits automatically reset after fault removal. Output status LEDs provide visual confirmation of each channel’s state. Consequently, troubleshooting becomes faster and more efficient.

Physical Characteristics and Installation

Weighing approximately 0.55 kg, this module fits standard S5 rack configurations. Its compact design occupies a single slot within the chassis. The module uses screw terminal connections for secure and straightforward field wiring. The front panel provides clear labeling for easy channel identification. Furthermore, users can install the 6ES5482-7LA11 quickly without special tools.

System Compatibility

This module works with SIMATIC S5-115U, S5-135U, and S5-155U PLC systems. It communicates with the CPU through the S5 backplane bus. Users can connect this module directly to field devices such as pushbuttons, sensors, and solenoid valves. The mixed I/O configuration reduces the number of modules needed for control tasks.
