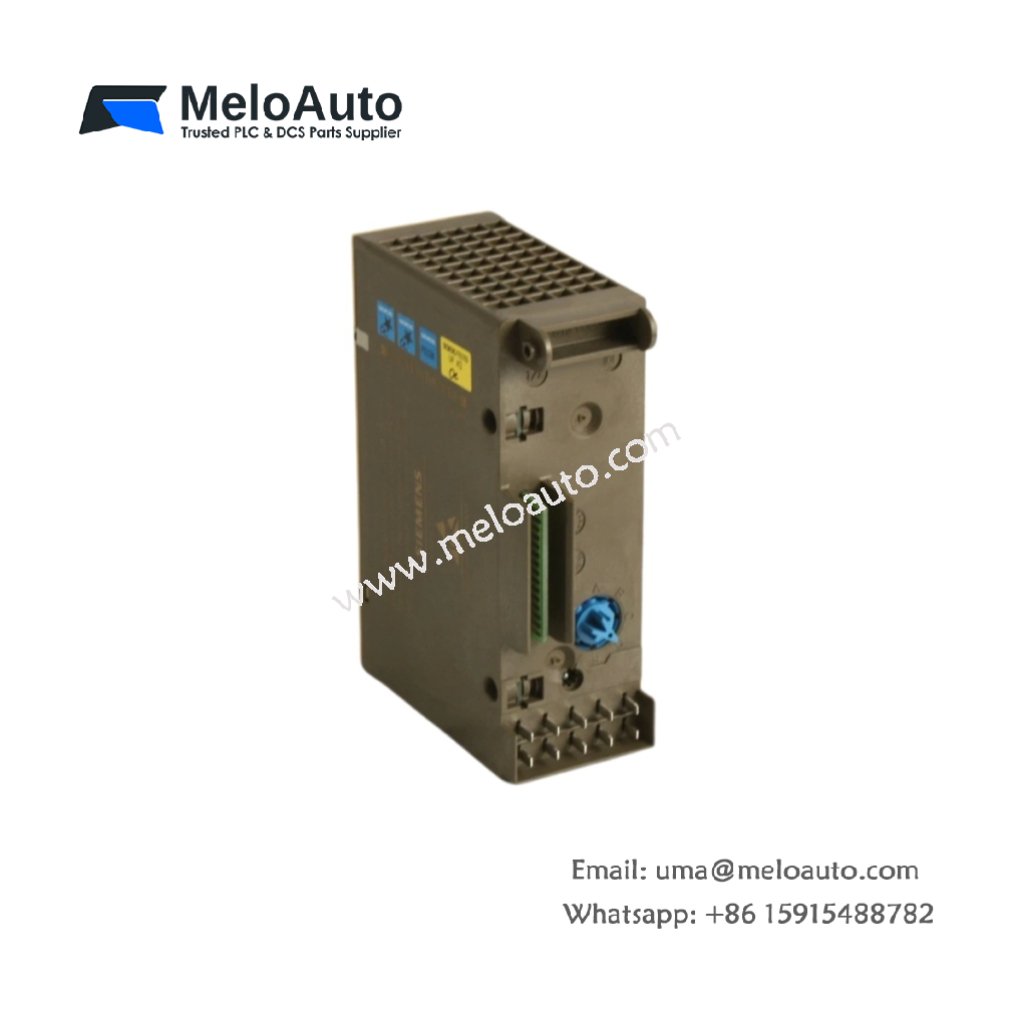

Siemens 6ES5477-8EC11 | SIMATIC S5 Analog Output Module

The Siemens 6ES5477-8EC11 provides four isolated analog output channels for precision control. This module converts digital values from the CPU into standard industrial signals. You can configure each channel independently for voltage or current output. It suits applications like valve positioning, speed control, and actuator regulation. Consequently, this module delivers accurate analog signals for continuous process control.

Technical Specifications Overview

Parameter	Detailed Specification
Model	Siemens 6ES5477-8EC11
Category	SIMATIC S5 Analog Output Module (EX version)
Number of Outputs	4 (galvanically isolated)
Output Voltage Range	0 to 10V DC, ±10V DC (selectable)
Output Current Range	0 to 20 mA, 4 to 20 mA (selectable)
Load Impedance (Voltage)	Minimum 2 kΩ
Load Impedance (Current)	Maximum 500 Ω
Resolution	12 bits (4096 steps)
Conversion Time	Approx. 0.8 ms per channel
Accuracy	±0.5% of full scale (at 25°C)
Operating Voltage	5V DC from backplane (typical 250 mA)
External Supply	24V DC (150 mA for analog circuitry)
Dimensions	250 mm x 25 mm x 130 mm (single-width)
Weight	0.47 kg (470 grams)
Operating Temperature	0°C to 60°C

Functional Features and Output Capabilities

The Siemens 6ES5477-8EC11 provides galvanic isolation between channels and the backplane. You can mix voltage and current outputs freely across the four channels. Each channel includes short-circuit protection and overrange detection circuitry. Furthermore, the module holds the last value or defaults to a substitute value on CPU stop.

The 12-bit resolution ensures fine-grained control for precision applications. You can read back the actual output value for diagnostic purposes. The LED indicators show power status and channel activity at a glance.

Installation and Wiring Guidelines

First, insert the Siemens 6ES5477-8EC11 into any S5 rack slot. Next, connect the external 24V DC supply to the rear terminals. Then, install a compatible frontal connector like Siemens 6ES5497-4UB12. Finally, wire your field devices using shielded twisted-pair cables.

You must connect the shield to ground at one end only. The module does not include any internal energy storage or battery backup. Consequently, all outputs reset to zero after a power cycle unless configured otherwise. Always use separate cables for analog signals and AC power wiring.

This analog output module works perfectly with Siemens 6ES5477-8EC11 for multi-loop control. It pairs well with temperature controllers, proportional valves, and variable frequency drives. You can calibrate each channel individually using software trimming. The EX version provides enhanced isolation for harsh industrial environments.
