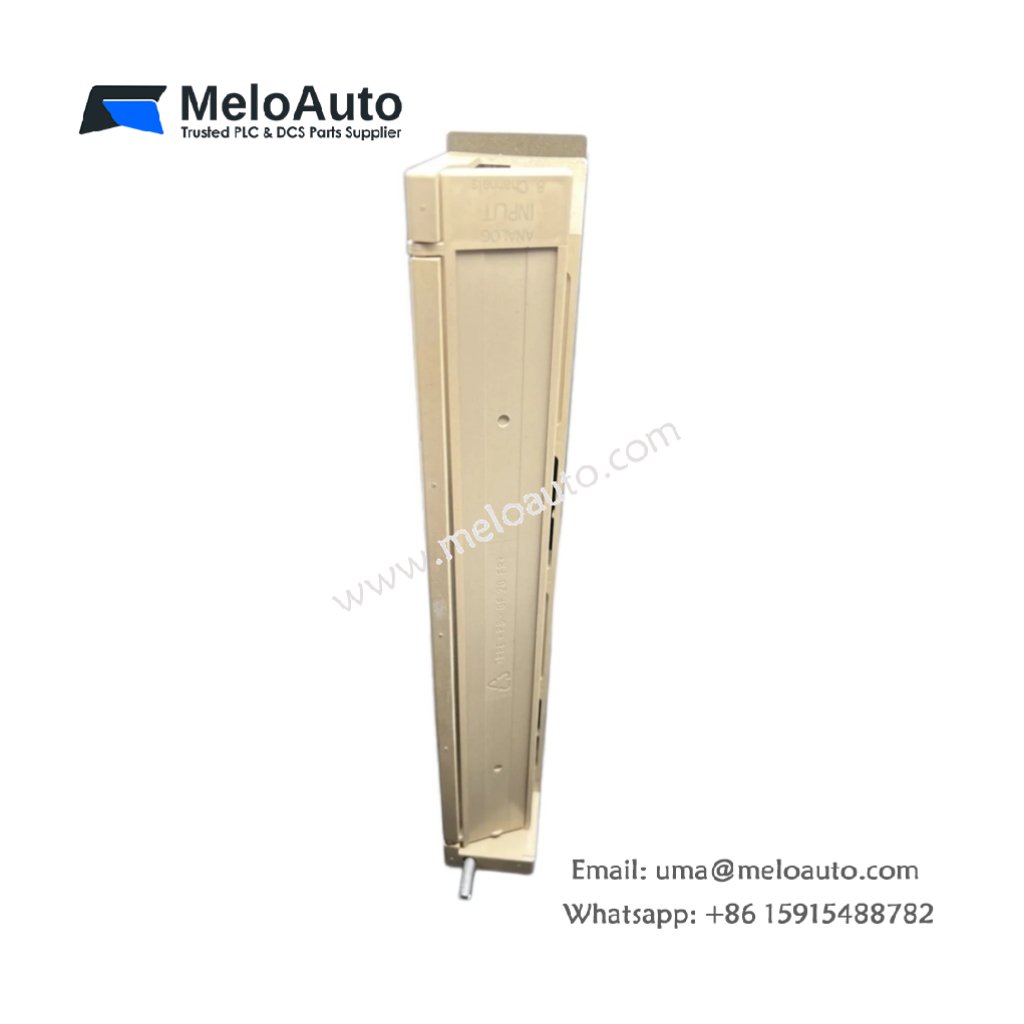

Siemens 6ES5460-7LA13 Analog Input Module

This analog input module captures process signals for SIMATIC S5 automation systems. The Siemens 6ES5460-7LA13 provides precise measurement capabilities for industrial applications. Its robust design ensures accurate data acquisition in demanding environments.

Key Technical Specifications

Precision Analog Acquisition

The Siemens 6ES5460-7LA13 provides eight analog input channels for connecting field sensors. Each channel accepts voltage or current signals for process monitoring applications. Furthermore, the module delivers high-resolution conversion for accurate measurement values. Engineers can configure each channel for specific signal ranges and scaling requirements.

The internal circuitry includes filtering to reject electrical noise from industrial environments. This filtering ensures stable readings without compromising response time. Additionally, the Siemens 6ES5460-7LA13 features isolation between field circuits and the system bus. This isolation protects the controller from ground loops and transient surges.

Robust Physical Construction

This analog input module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.64 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, status indicators provide visual confirmation of power presence and channel activity. Operators can verify proper operation without using diagnostic tools.

System Integration and Application

The Siemens 6ES5460-7LA13 integrates seamlessly with SIMATIC S5 programmable controllers. This module mounts into standard S5 racks alongside CPU, digital, and other analog modules. Its eight-channel configuration suits applications requiring multiple analog monitoring points. Industries such as chemical processing, power generation, water treatment, and manufacturing frequently deploy this analog input module for reliable process signal acquisition.
