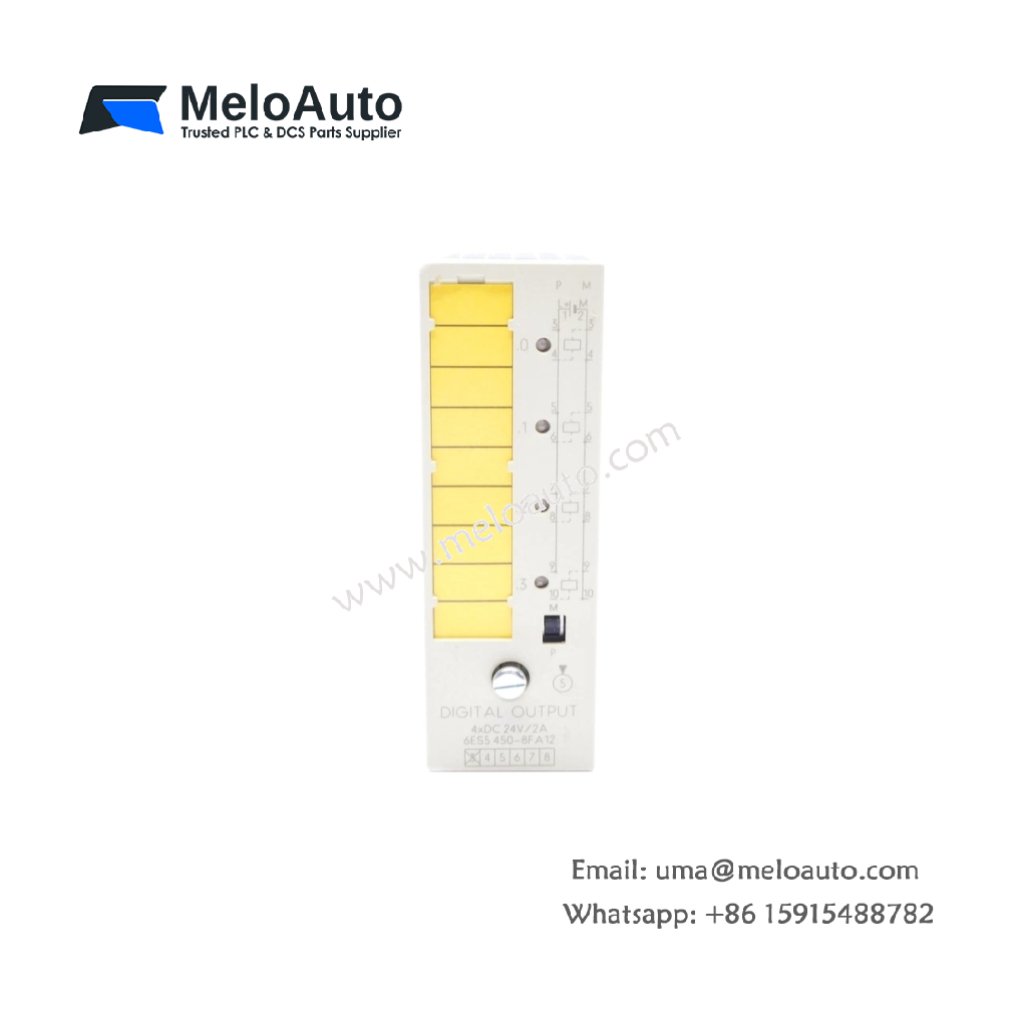

Siemens 6ES5450-8FA12 Digital Output Module

High-Density Discrete Outputs for SIMATIC S5 Systems

The 6ES5450-8FA12 digital output module provides 32 transistor outputs for SIMATIC S5 programmable controllers. This module drives 24 V DC field devices with 0.25 A per channel. Its high-density design saves valuable rack space in control cabinets. Consequently, this module suits applications with many outputs such as conveyor systems and packaging machines.

Technical Specifications

Protection and Diagnostic Features

The 6ES5450-8FA12 includes short-circuit protection on every output channel. This protection prevents module damage during field wiring faults. The module also features overload protection with automatic reactivation. An integrated LED indicates each channel’s status for quick troubleshooting. Furthermore, a group fault LED signals any error condition on the module.

Switching Performance and Application

This output module handles a switching frequency of 100 Hz for resistive loads. For inductive loads such as relays and contactors, the module supports switching up to 10 Hz. The 6ES5450-8FA12 drives solenoid valves, indicator lamps, and motor contactors effectively. Its fast < 1 ms response time enables real-time control in high-speed processes.

Physical Characteristics and Installation

The 6ES5450-8FA12 weighs approximately 0.55 kg and fits standard S5 rack slots. It uses screw terminal connections for secure and straightforward field wiring. The module draws 200 mA from the 5 V backplane bus. Its compact design allows dense I/O configurations within the S5 chassis. The front panel provides clear labeling for easy channel identification.
