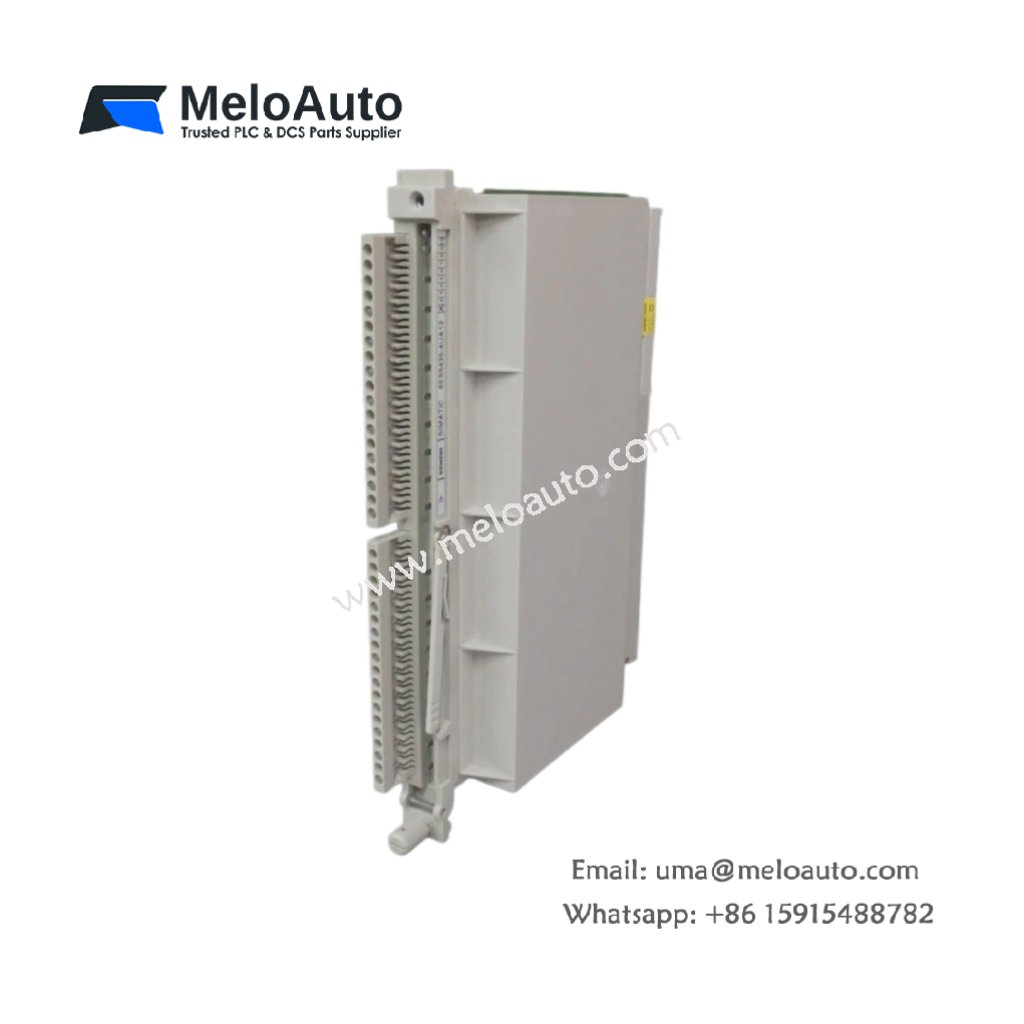

Siemens 6ES5435-4UA12 Digital Input Module Floating for SIMATIC S5

The Siemens 6ES5435-4UA12 captures sixteen floating digital input signals with isolation. You can install this module directly into any SIMATIC S5 rack slot. It suits sensors and switches that require isolated reference potentials. This unit prevents ground loops in complex control systems.

Technical Specifications and Hardware Layout

This digital input module measures 233 mm in height. Its width reaches 54 mm, and the depth equals 182 mm. The Siemens 6ES5435-4UA12 weighs approximately 0.68 kilograms. A single internal PCB holds all input filtering and isolation circuits. The module provides sixteen channels with floating common references. It stores no energy in capacitors or internal batteries. One 48-pin front connector handles all field wiring connections. Sixteen green LEDs display the real-time status of each channel.

Input Specifications and Electrical Performance

The Siemens 6ES5435-4UA12 accepts input voltages from 0 V to 30 V DC. It recognizes a logic “1” at 15 V DC or higher. A logic “0” occurs below 5 V DC reliably. Each channel draws a typical input current of 8 mA at 24 V DC. The module groups the sixteen channels into four isolated groups of four. Consequently, each group can connect to a different reference potential. Optical isolation separates each group from the backplane logic. An internal RC filter debounces input signals with a 5 ms time constant.

Installation and Practical Application Tips

You must snap this module onto a standard S5 rack firmly. Transitioning to wiring, use 0.5 mm² to 1.5 mm² solid or stranded wires. The screw-type terminals require a 3 mm flathead screwdriver for tightening. For floating inputs, connect each group’s common terminal to its isolated reference. The operating temperature range extends from 0°C to 60°C reliably. This module consumes only 60 mA from the backplane bus.
