Core Functionality and Application

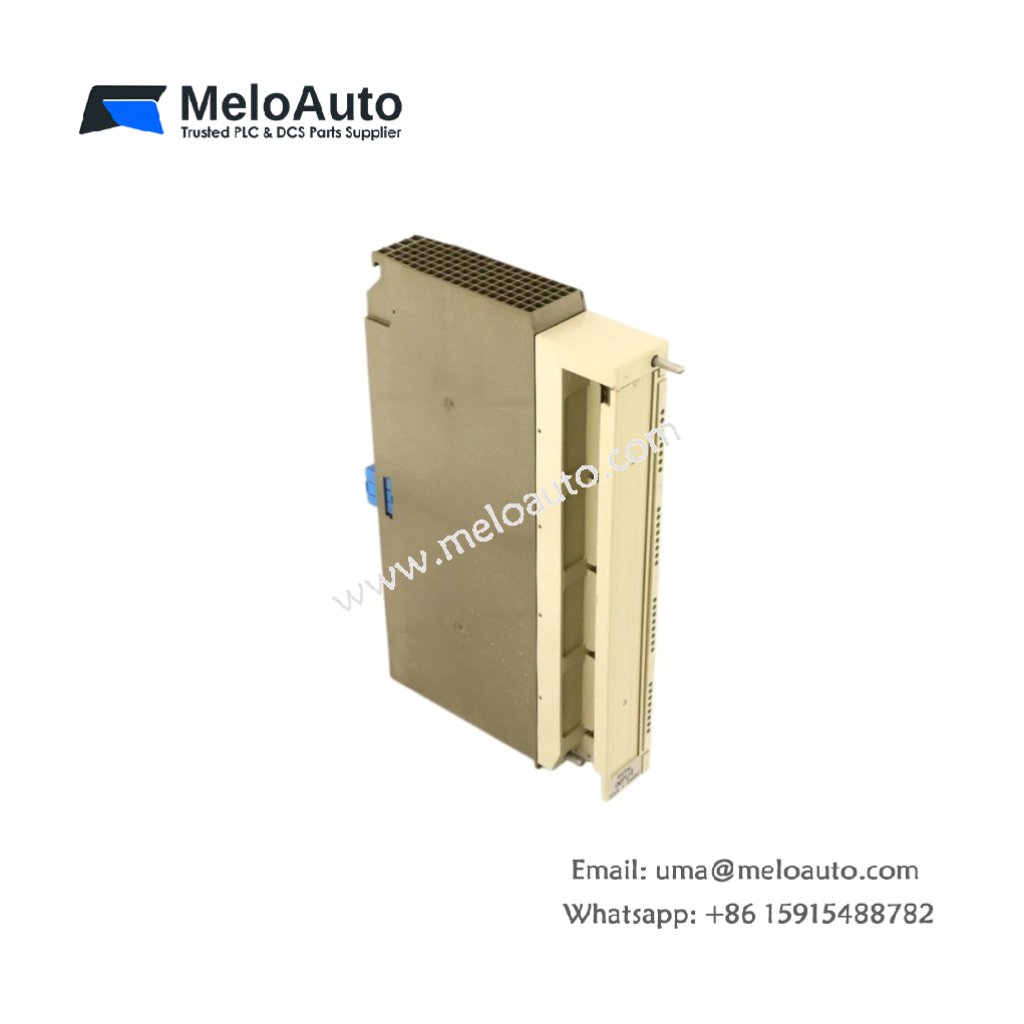

The Siemens 6ES5433-7LA11 robust digital input module interfaces field signals with the SIMATIC S5 automation system. This module provides eight input channels for monitoring contact closures and sensor states reliably. It accepts 24 VDC signals from limit switches, proximity sensors, and pushbuttons. Furthermore, the module includes enhanced filtering for use in electrically noisy industrial environments.
Technical Specifications
The following table details the core technical parameters for the Siemens 6ES5433-7LA11:
| Parameter | Specification |
|---|---|
| Model Number | 6ES5433-7LA11 |
| Product Type | Digital Input Module |
| Number of Inputs | 8 channels (grouped in 2 x 4) |
| Input Voltage | 24 VDC (rated) |
| Input Voltage Range | 20.4 V to 28.8 V |
| Input Current | 10 mA per channel (typical) |
| Switching Threshold (ON) | ≥ 15 V |
| Switching Threshold (OFF) | ≤ 5 V |
| Input Filtering | Integrated, 3 ms nominal (AC/DC) |
| Isolation | Galvanic isolation (1500 V RMS) |
| Dimensions (W × H × D) | 8.0 × 20.0 × 15.0 cm (3.15 × 7.87 × 5.91 in) |
| Weight | 0.55 kg (1.21 lbs) |
| Power Draw (5V) | 150 mA typical |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Compatibility | SIMATIC S5-115U, S5-135U, S5-155U |
Design and Protection Features
The Siemens 6ES5433-7LA11 features enhanced interference suppression circuits for improved noise immunity . The module uses optocouplers to provide 1500 V RMS isolation between the field and logic circuits . Channel groups share a common ground, which simplifies wiring with two or four-wire sensors . LED indicators display the status of each input channel on the front panel . The module also withstands reverse polarity protection on the input connections.
System Compatibility and Use Cases
The Siemens 6ES5433-7LA11 integrates with S5-115U, S5-135U, and S5-155U PLC systems . It connects standard 24 VDC field devices in manufacturing and process automation applications. System integrators use this module for counting, monitoring, and control tasks in challenging electrical environments. The eight-channel configuration suits applications where wiring density is not a primary concern.
