High-Speed Data Exchange for Distributed I/O

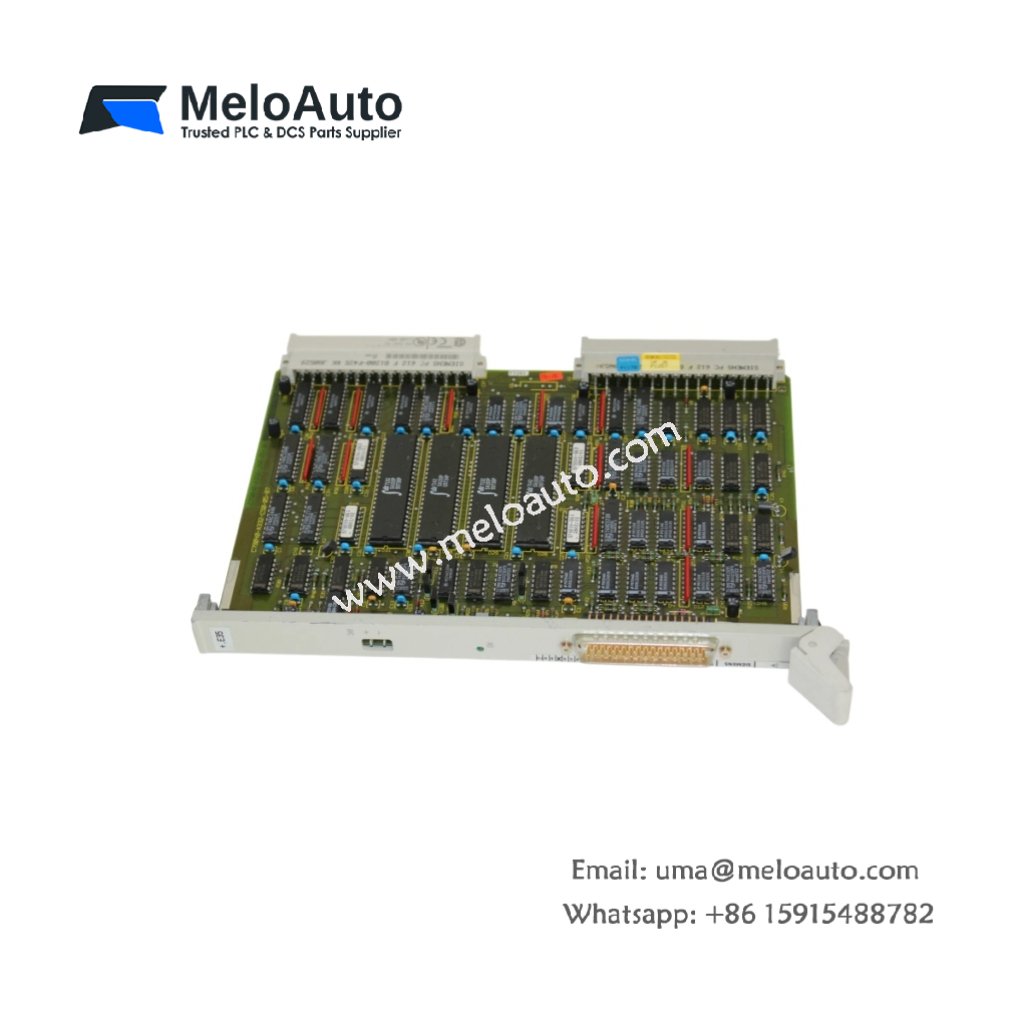

The Siemens 6ES5324-3UR11 interface module enables seamless communication between the central controller and remote I/O stations. This unit handles data transfer with minimal latency, thereby optimizing overall system response times. Large-scale automation networks rely on this interface for consistent and deterministic signal exchange.
Communication Performance and Electrical Ratings
This interface module operates on a 24 V DC supply with a permissible range of 20.4 V to 28.8 V. The unit draws a maximum current of 300 mA from the backplane bus under full load. Total power dissipation measures approximately 6 watts, requiring adequate ventilation in the enclosure. Furthermore, the module stores up to 16 KB of configuration data for fast system initialization.
| Parameter | Specification |
|---|---|
| Model | Siemens 6ES5324-3UR11 |
| Supply Voltage | 24 V DC (20.4–28.8 V) |
| Current Consumption | 300 mA (max) |
| Power Dissipation | 6 W (typical) |
| Configuration Storage | 16 KB |
| Transmission Rate | 1.5 Mbps (max) |
| Interface Type | RS-485 (isolated) |
| Number of Ports | 2 (redundant) |
| Dimensions (W x H x D) | 40 mm x 125 mm x 118 mm |
| Weight | 0.40 kg |
| Isolation Voltage | 1500 V AC |
Connectivity and Network Topology
This interface module provides two independent RS-485 ports for redundant network configurations. The transmission rate reaches up to 1.5 Mbps, supporting fast cycle times in demanding applications. Each port includes built-in termination resistors that you can enable via DIP switches. Additionally, the module supports both linear and star topologies for flexible system design.
Signal Isolation and Protection Features
The Siemens 6ES5324-3UR11 offers 1500 V AC isolation between the fieldbus and internal logic circuits. This isolation guards sensitive control components against voltage surges and ground potential differences. The module also incorporates transient suppression diodes on each communication line. Consequently, this design protects the entire network from electrostatic discharge and inductive spikes.
Mechanical Construction and Mounting Details
This interface module features a compact 40 mm wide housing, fitting neatly into standard S5 racks. The unit weighs approximately 0.40 kilograms, allowing easy installation without additional support brackets. A 15‑pin D‑sub connector provides access to both communication ports and the external power input. The front panel includes LED indicators for power, data activity, and error conditions.
Installation Guidelines and System Compatibility
You can install this module in any slot of the S5‑115U or S5‑135U central rack. The module automatically detects the backplane bus speed and adjusts its internal timing accordingly. For optimal performance, we recommend using shielded twisted‑pair cables with an impedance of 120 ohms. Always terminate the last device on each segment to prevent signal reflections. The module supports up to 32 stations per network segment, expanding your I/O capacity significantly.
