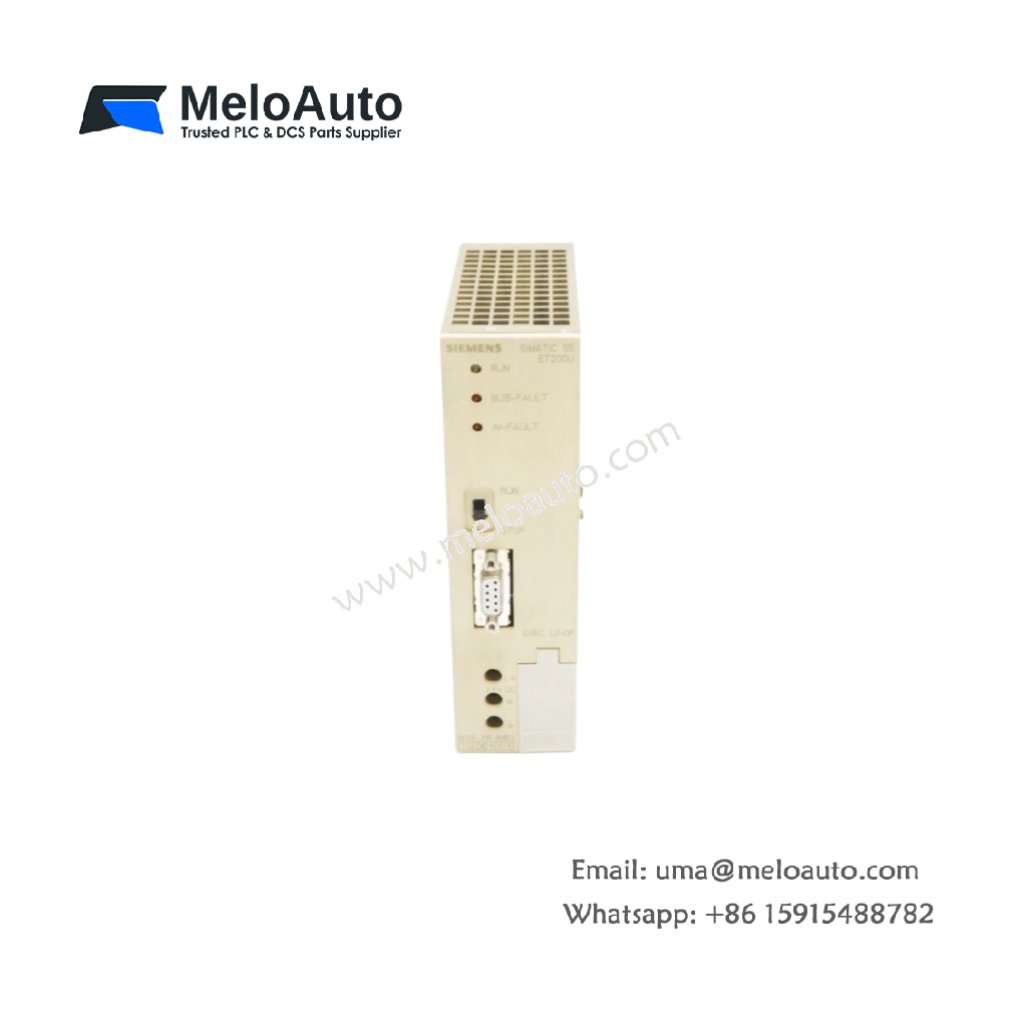

Siemens 6ES5318-8MB11 Interface Module

Communication Bridge for SINEC L1 Networks

The 6ES5318-8MB11 interface module serves as a reliable communication bridge between SIMATIC S5 controllers and SINEC L1 fieldbus networks. This module enables seamless data exchange between PLCs and distributed field devices. It supports a wide range of fieldbus applications in industrial automation environments. Consequently, this module streamlines system integration for distributed control architectures.

Signal Conversion and Protocol Handling

The 6ES5318-8MB11 provides robust signal conversion for reliable network communication. It handles data exchange between the S5 backplane bus and the SINEC L1 network. This module ensures accurate data transmission over extended cable distances . Furthermore, it supports multiple baud rates for flexible network configuration. The module integrates into the S5 rack, connecting to the CPU via the backplane bus.

Physical Characteristics and Environmental Specifications

The 6ES5318-8MB11 weighs approximately 0.55 kg and fits standard S5 rack slots. It operates reliably from 0°C to 60°C and stores safely from -40°C to +70°C. The module also features LED indicators for network status and diagnostics. Consequently, it provides straightforward troubleshooting for maintenance personnel.

Technical Specifications
