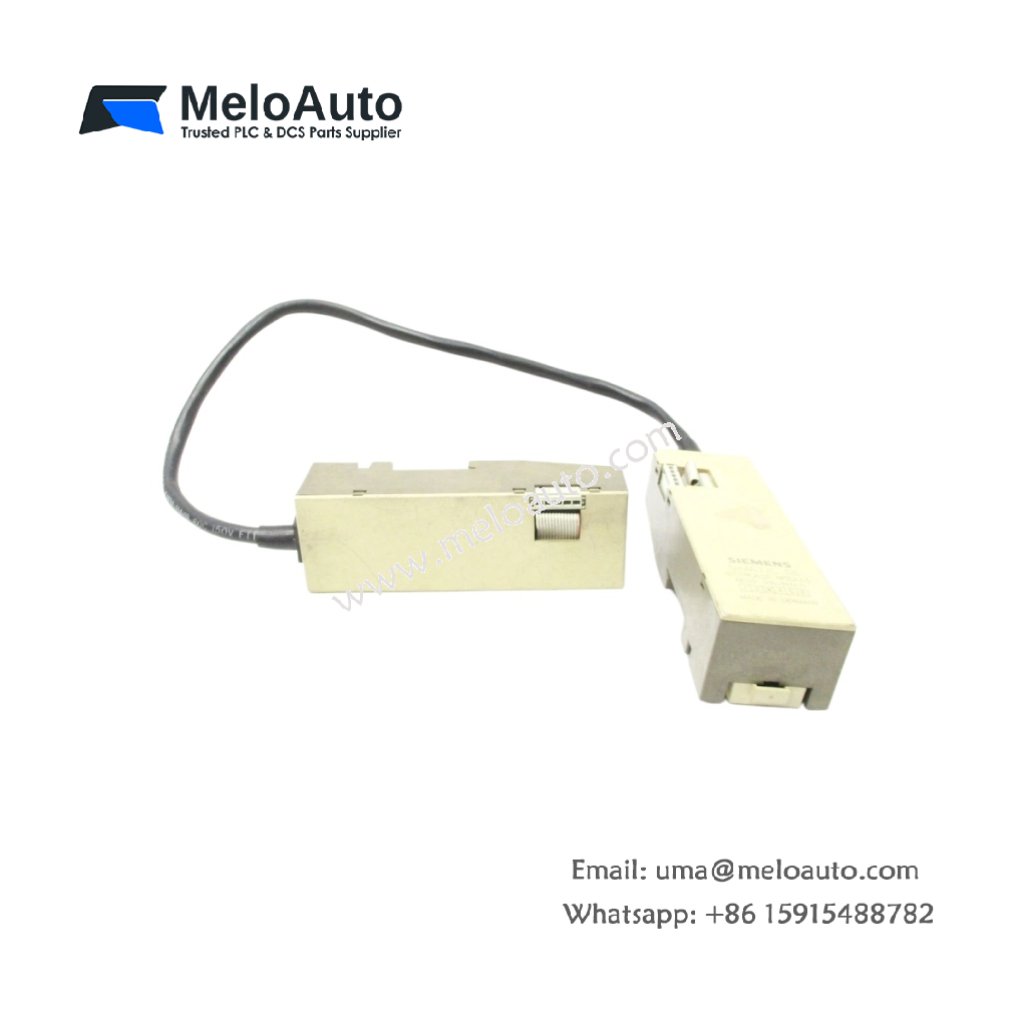

Siemens 6ES5315-8MA11 Interface Module

Core Functionality and Application

The Siemens 6ES5315-8MA11 interface module connects peripheral devices to the SIMATIC S5 automation system. This module manages data exchange between the PLC and external equipment such as drives and operator panels. It supports both point-to-point communication and networked configurations for flexible system design. Furthermore, the module handles protocol conversion for seamless integration of third-party devices .

Technical Specifications

The following table details the core technical parameters for the Siemens 6ES5315-8MA11:

Parameter	Specification
Model Number	6ES5315-8MA11
Product Type	Interface Module
Communication Interfaces	RS-232, RS-422, RS-485 (selectable)
Compatible Protocols	Siemens-specific and standard serial protocols
Data Transfer Rate	Up to 19.2 kbps (configurable)
Number of Ports	1 or 2 (depending on configuration)
Isolation	Galvanic isolation between PLC and field
Dimensions (W × H × D)	8.0 × 20.0 × 15.0 cm (3.15 × 7.87 × 5.91 in)
Weight	0.6 kg (1.32 lbs)
Power Draw (5V)	300 mA typical
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 85°C
Compatibility	SIMATIC S5-115U, S5-135U, S5-155U

Design and Integration Features

The Siemens 6ES5315-8MA11 occupies a single slot in the S5 rack, saving valuable cabinet space . Jumper or software configuration allows users to select between RS-232, RS-422, and RS-485 interfaces . Galvanic isolation protects the PLC from ground loops and electrical noise on field cables . LED indicators display the communication status and error conditions clearly . Users can configure the module with standard S5 programming tools .

System Compatibility and Use Cases

The Siemens 6ES5315-8MA11 integrates seamlessly with S5-115U, S5-135U, and S5-155U PLC systems . It connects to printers, barcode readers, weigh scales, and other serial devices . System integrators use this module for data acquisition and reporting tasks . The module supports both ASCII and binary data formats for maximum flexibility . Users should verify protocol compatibility for third-party devices before installation .
