Technical Overview

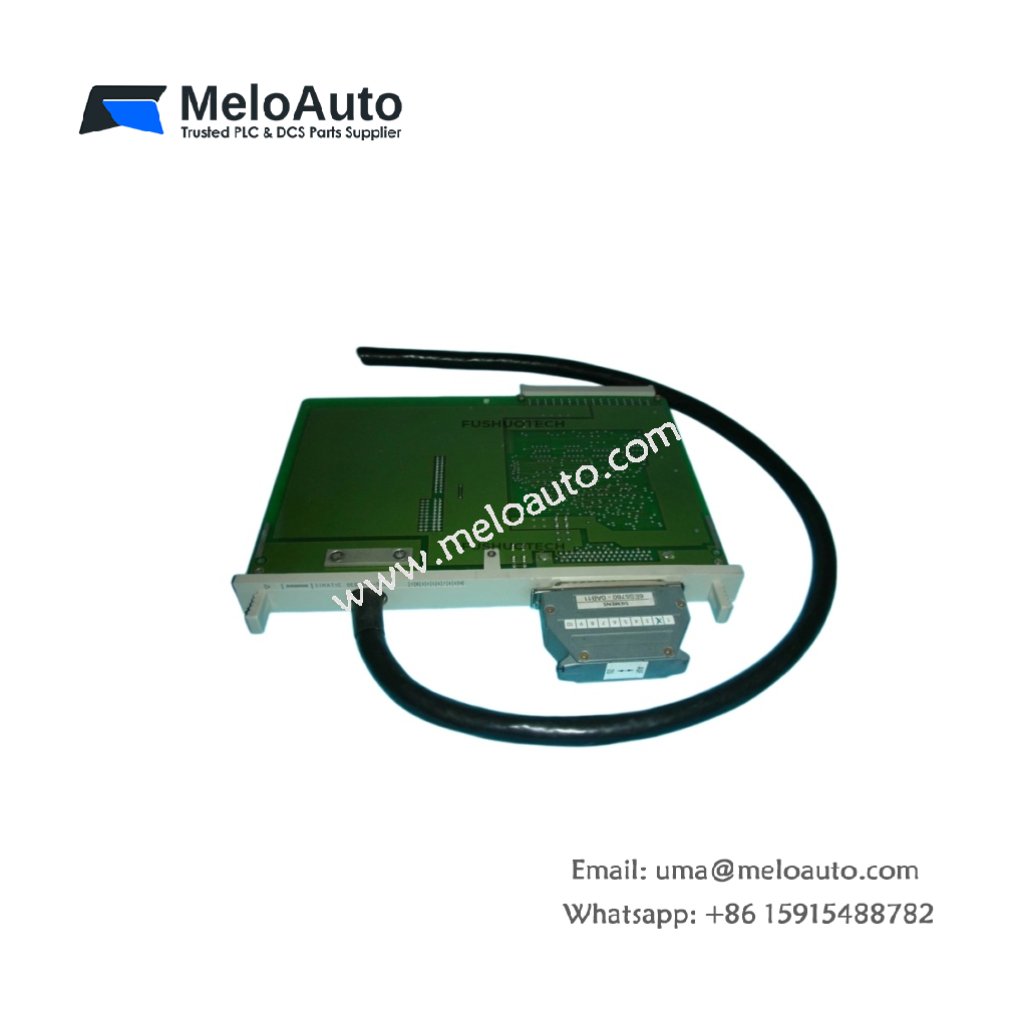

The Siemens 6ES5312-5CA22 is a communication interface module for the SIMATIC S5 programmable controller series. This unit connects the central processor to remote I/O stations and other automation devices. It supports data exchange over the SINEC L2-DP network, ensuring reliable communication in distributed control systems. The module features an RS-485 interface, providing robust data transmission in industrial environments. It includes LED indicators for power, communication, and error status, simplifying diagnostics. The module is specifically designed for S5-135U systems, ensuring seamless integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6ES5312-5CA22 |
| Product Type | Interface Module |
| System Compatibility | SIMATIC S5-135U |
| Network Protocol | SINEC L2-DP |
| Interface | RS-485 |
| Transmission Speed | 9.6 Kbps to 12 Mbps |
| Remote I/O Support | Yes |
| Power Consumption | 3 W (typical) |
| Dimensions | 233 x 37 x 268 mm |
| Weight | 0.38 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, CSA |
| Country of Origin | Germany |
Key Features
SINEC L2-DP Compatibility – This module supports high-speed data exchange over the L2-DP fieldbus.
RS-485 Interface – The robust communication standard ensures reliable performance in industrial environments.
Diagnostic LEDs – Status indicators provide immediate feedback on module health and network activity.
Distributed I/O Connectivity – The module links the central controller to remote stations.
Applications
The Siemens 6ES5312-5CA22 suits distributed control systems, remote I/O applications, and industrial automation networks.
