Siemens 6ES5301-5AA12 – Interface Module for SIMATIC S5 I/O Expansion

The Siemens 6ES5301-5AA12 connects remote I/O stations to the SIMATIC S5 central controller. This interface module measures 250 mm in depth and 25 mm in width. It fits standard SIMATIC S5 rack slots without any modifications. The unit weighs 0.38 kg, making installation quick and straightforward.

Communication Protocol and Data Handling

This interface module uses the SINEC L1 fieldbus protocol for I/O communication. The Siemens 6ES5301-5AA12 handles both cyclic and acyclic data exchanges efficiently. It manages up to 64 digital input and 64 digital output points remotely. The module supports a maximum cable length of 1000 meters between stations. Baud rates are selectable from 9.6 kbit/s up to 93.75 kbit/s.

Internal Architecture and Component Layout

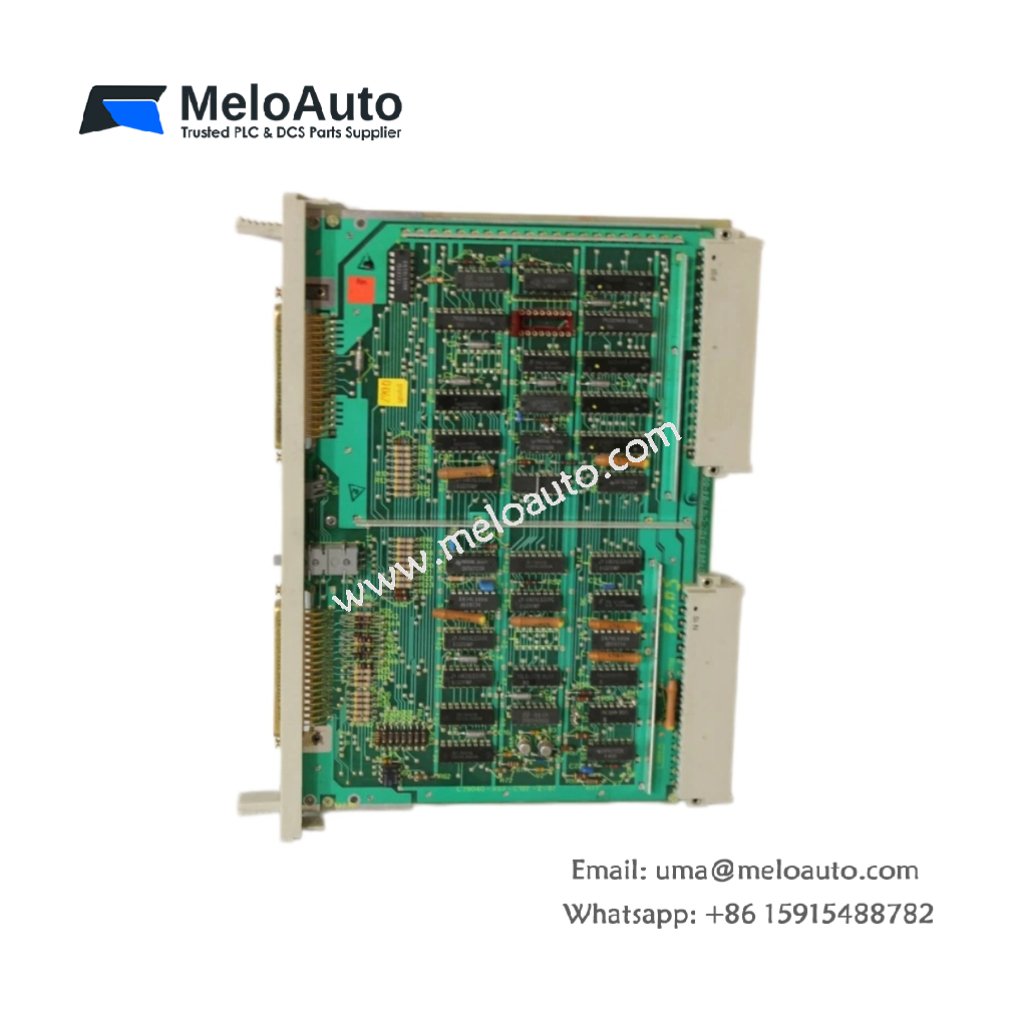

The module contains two separate circuit boards inside its plastic housing. One board handles protocol processing, while the other manages backplane communication. The Siemens 6ES5301-5AA12 includes a dedicated 16-bit microcontroller for message handling. A 48-pin edge connector interfaces with the S5 backplane for power and data. The module stores 68 µF of capacitance for power supply filtering only.

Interface Connections and Diagnostic Features

You will find one 9-pin D-sub connector on the front panel for network connection. The Siemens 6ES5301-5AA12 provides LED indicators for power, communication, and fault status. Six diagnostic LEDs help troubleshoot network and I/O issues quickly. The module automatically retransmits corrupted messages up to three times. It also generates a system fault signal when communication fails completely.

Power Requirements and Environmental Tolerance

The Siemens 6ES5301-5AA12 draws 150 mA at 5V DC from the backplane supply. It requires no external 24V DC power for its internal circuits. The module operates reliably from 0°C to 60°C ambient temperature. It tolerates humidity levels up to 95 percent without any condensation issues. The unit withstands vibration up to 2g from 10 to 500 Hz.

Below is a complete summary of its technical specifications.

The Siemens 6ES5301-5AA12 replaces older interface modules in distributed S5 systems. You do not need any rewiring or configuration changes during replacement. This module also supports mixed I/O configurations for flexible system design. Consequently, it extends central controller reach without adding processor load.
