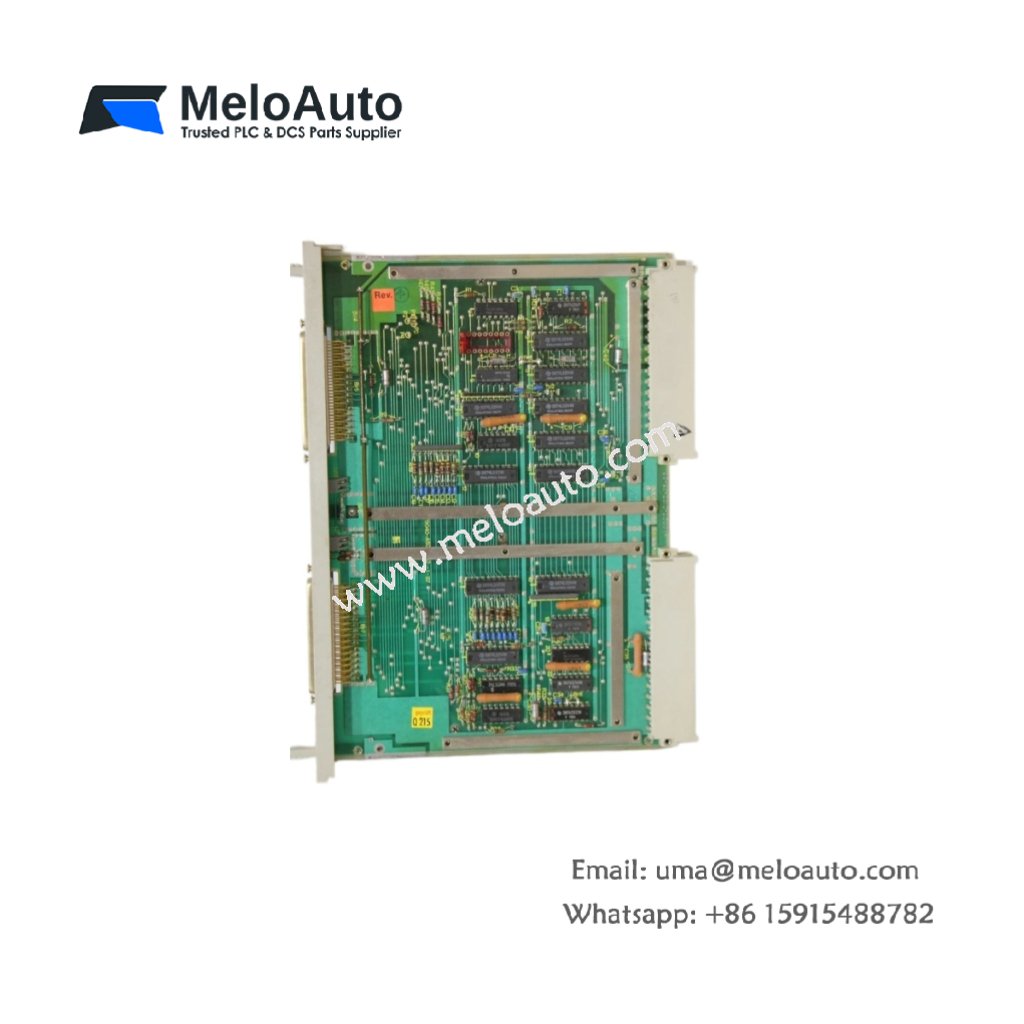

Siemens 6ES5300-5AA11 Interface Module

Technical Overview

The Siemens 6ES5300-5AA11 is an interface module for the SIMATIC S5 programmable controller series. It serves as a connection link between the central processing unit and remote I/O stations. This module supports data exchange over the SINEC L1 network, facilitating communication between the S5 CPU and distributed peripheral devices. It effectively extends the I/O capabilities of the S5 system without requiring additional rack space in the main chassis.

The module connects to the S5 CPU via the backplane bus and communicates with remote stations through a twisted-pair cable. Its design focuses on reliable data transmission in electrically noisy industrial environments. The interface supports both master and slave configurations, thereby providing flexibility for various network topologies. It includes LED indicators for power, communication, and error status.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5300-5AA11
Product Type	Interface Module
System Compatibility	SIMATIC S5
Network Protocol	SINEC L1
Interface	RS-485
Transmission Speed	9.6 Kbps to 187.5 Kbps
Remote I/O Support	Yes
Network Topology	Master/Slave
Cable Type	Twisted-pair
Power Consumption	3 W (typical)
Dimensions	233 x 37 x 268 mm
Weight	0.38 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH (non-condensing)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

Distributed I/O Connectivity – This module links the central CPU to remote I/O stations, thereby extending system reach.

Flexible Transmission Speeds – The interface supports multiple baud rates for network optimization.

SINEC L1 Compatibility – The module integrates with Siemens’ proprietary fieldbus network.

Master/Slave Capability – Users can configure the module for either network role.

Robust Industrial Design – The module withstands demanding conditions with wide temperature tolerance.

Applications

The Siemens 6ES5300-5AA11 suits distributed control systems, remote I/O applications, and factory automation. It is ideal for manufacturing and process control environments requiring decentralized I/O architectures.
