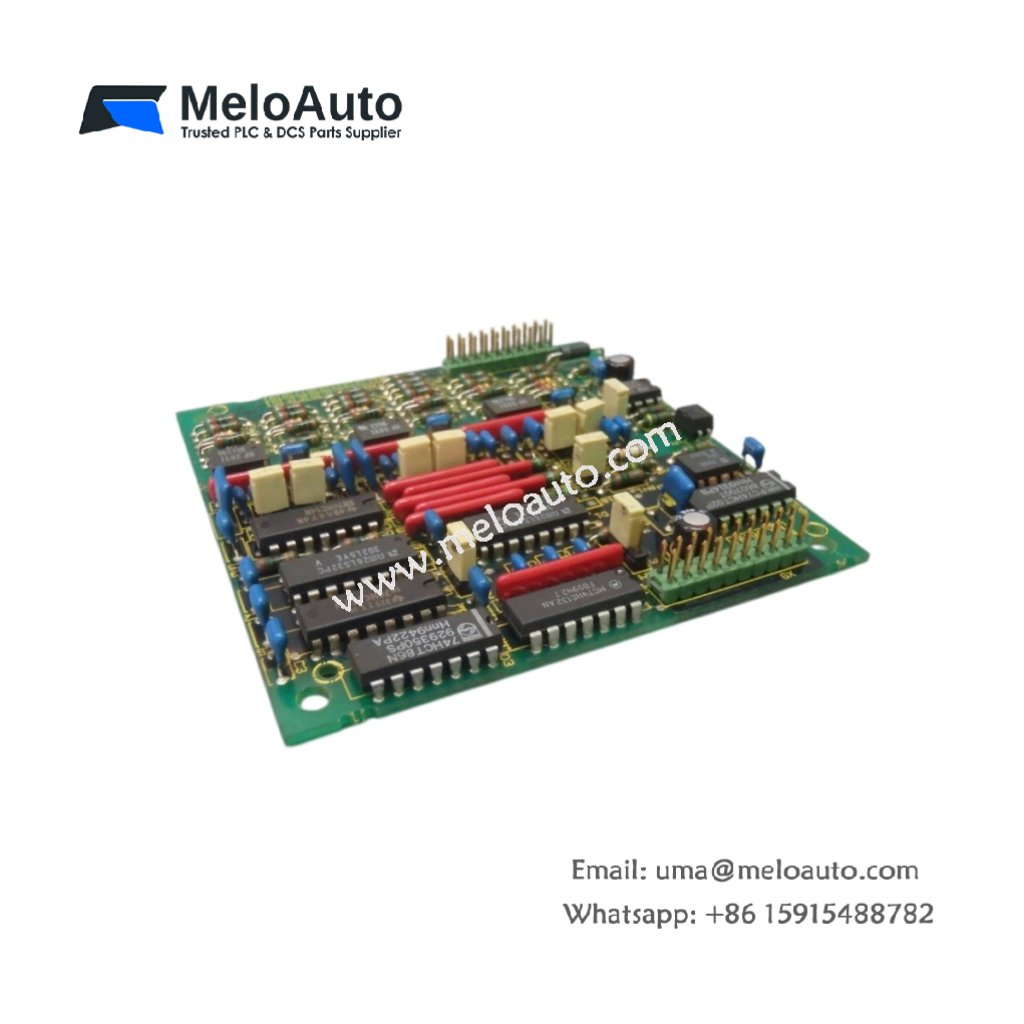

Siemens 6ES5281-4UB11 Plugin Submodule

Why This Plugin Submodule Adds Counter Functions to Your S5

This plugin submodule adds high-speed counter capabilities to your SIMATIC S5 system. You get a specialized Siemens 6ES5281-4UB11 for position tracking and frequency measurement. It counts pulses up to 10 kHz without burdening the main CPU. Therefore, your processor remains free for logic execution while this card handles counting tasks.

Technical Specifications and Physical Details

The Siemens 6ES5281-4UB11 plugs into the base CPU’s submodule slot. It features one counter channel with two digital inputs. This submodule accepts 24V DC signals from incremental encoders or pulse generators. Its dimensions measure approximately 65 mm in length and 40 mm in width. The unit weighs around 0.03 kg for simple handling. This plugin submodule stores no counter values after power loss. Instead, the CPU must read the current value before shutting down. Consequently, you need a save routine for critical position data.

Below is the detailed breakdown of the hardware specifications.

Parameter	Specification
Product Model	6ES5281-4UB11
Product Type	Plugin Submodule
Brand	Siemens
Family	SIMATIC S5
Function	High-speed counter
Max Input Frequency	10 kHz
Number of Channels	1 counter + 2 digital inputs
Input Voltage	24 V DC
Dimensions (L x W)	Approx. 65 x 40 mm
Approx. Weight	0.03 kg
Interface	CPU submodule slot
Energy Storage	None (volatile counter)
Component Count	Single card assembly

Installation and Programming Notes

This submodule inserts into the CPU compartment under the front cover. You must align the guide pins correctly before seating it. The Siemens 6ES5281-4UB11 requires special function blocks in your S5 program. Therefore, call the counter driver in each scan cycle for accurate readings. Always use shielded twisted-pair cables for the pulse input. Electrical noise will cause false counts and positioning errors.
