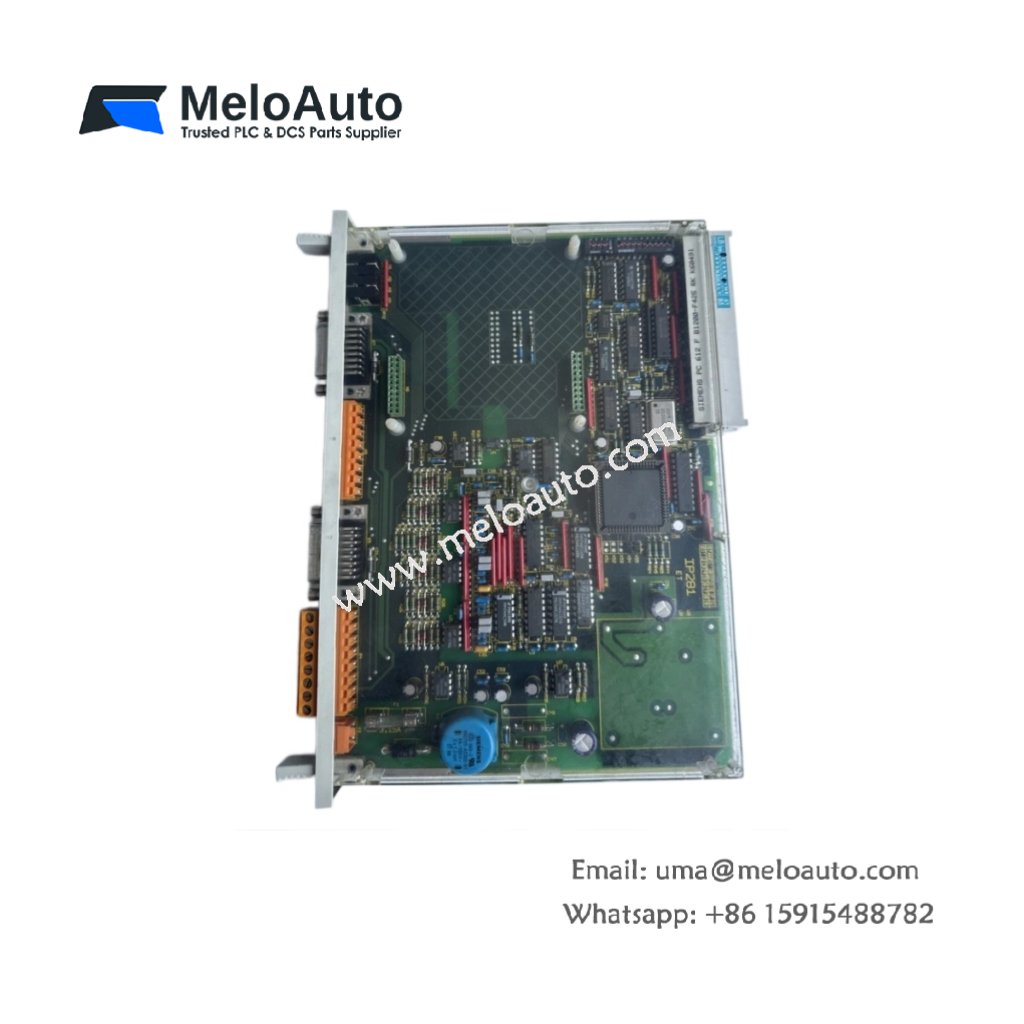

Siemens 6ES5281-4UA12 Counter Module for SIMATIC S5

The 6ES5281-4UA12 functions as a high-speed counter module for the Siemens SIMATIC S5 PLC system. This unit counts pulses from incremental encoders and proximity switches. It provides position feedback for motion control and measuring applications. Therefore, this module enables precise length, speed, and position monitoring in industrial processes.

Technical Specifications

We engineered this counter module for demanding high-speed counting tasks. Its single-slot design fits directly into a standard S5 rack. Moreover, the module includes multiple operating modes for flexible application configurations.

Counter Circuit Design

The 6ES5281-4UA12 uses dedicated counter chips for each of its two channels. Each channel accepts up to 10,000 pulses per second for high-speed applications. The module processes signals from incremental encoders with A/B phase discrimination. Consequently, you can detect both direction and distance from a single encoder.

Operating Modes and Configuration

This counter module supports three primary counting modes for different applications. Up/down mode uses two separate input signals for counting direction. Directional mode uses one pulse input and one direction input. Encoder mode processes 90-degree phase-shifted signals from A/B encoders. Therefore, you can select the optimal mode for your specific sensor type.

Gate Functions and Control Inputs

The 6ES5281-4UA12 provides gate inputs for each counter channel. A start gate enables the counter to begin accumulating pulses. A stop gate freezes the current count value for read operations. A reset gate clears the counter to zero on command. Hence, you can coordinate counting with external machine cycles precisely.

Output Response and Threshold Comparison

This counter module includes two digital outputs per channel for threshold alerts. Each output activates when the count value reaches a preset limit. The module updates output states within 1 ms of threshold crossing. Consequently, you can trigger batching, cutting, or positioning actions without CPU intervention.

Power Requirements and Energy Storage

The 6ES5281-4UA12 draws 150 mA from the 5V DC backplane supply. It also requires external 24V DC for input and output circuits. The module contains no battery for count value retention. All counter values reset to zero during PLC power loss.

Installation and Wiring

Mount the 6ES5281-4UA12 into any SIMATIC S5 rack slot securely. Connect your encoder signals to the screw terminal block with shielded cable. Use a 3.0 mm flat-blade screwdriver for all terminal screw connections. Verify the input voltage matches your sensor output before applying power. Always turn off system power before inserting or removing this module.
