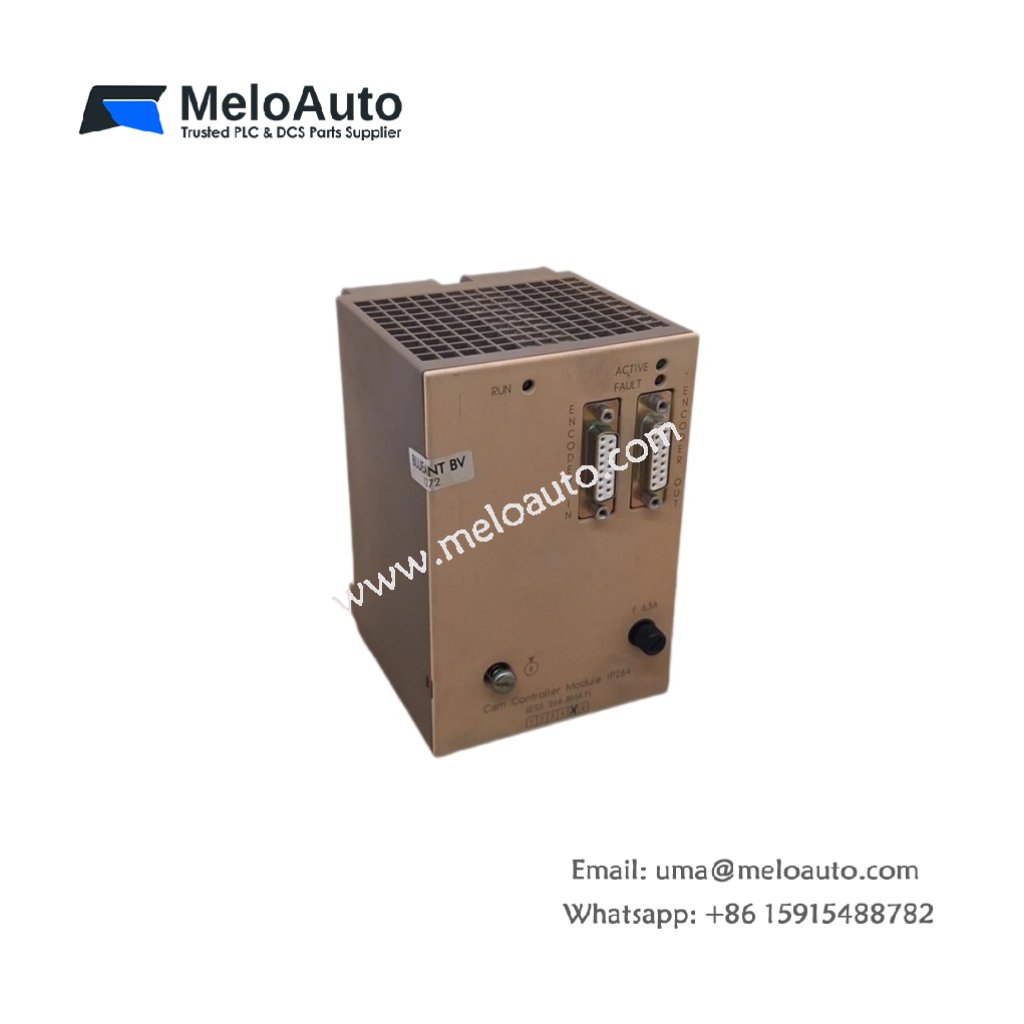

Siemens 6ES5264-8MA11 CAM Controller Module

High-Speed Cam Control for S5-135U/155U Systems

The Siemens 6ES5264-8MA11 CAM controller module provides high-speed cam switching for S5-135U and S5-155U PLC systems. This module generates precision output signals based on encoder position inputs. Automated machinery and packaging systems rely on this module for precise cam timing.

Technical Specifications and Control Features

This CAM controller module features a dedicated 16-bit processor for high-speed cam calculations. The module supports incremental and absolute encoders for position feedback. A built-in 16 KB memory stores up to 32 cam tracks with multiple switching points. Furthermore, the module handles cam outputs with resolution down to 0.1 degrees of encoder rotation.

Cam Programming and Configuration

The Siemens 6ES5264-8MA11 allows users to program cam tracks using the STEP 5 programming software. Each cam track supports multiple switching points with independent on and off angles. Users can modify cam parameters online without stopping the machine. Moreover, the module includes a cam simulation mode for testing without actual motion.

Encoder Interface and Position Acquisition

This CAM controller module supports incremental encoders with TTL or HTL signal levels. The module also accepts absolute encoders with SSI or parallel interfaces. Users can configure the encoder resolution and count direction through software. Furthermore, the module includes a zero-pulse input for reference point acquisition.

Output Switching and Timing Accuracy

The Siemens 6ES5264-8MA11 provides 16 digital output channels for cam switching signals. Each output switches with a timing accuracy better than 100 microseconds. The module includes output enable and inhibit functions for safety applications. Additionally, the outputs feature short-circuit protection for reliable operation.

Physical Design and Installation

This CAM controller module features a 50 mm housing that fits standard S5-135U and S5-155U rack slots. The unit weighs approximately 0.45 kilograms, allowing straightforward installation. A 32-pin front connector provides access to encoder and output terminals. The module uses screw-type terminals for secure field connections.

Diagnostic Features and Status Monitoring

Front-panel LEDs indicate power, encoder status, and output conditions. The module stores diagnostic information about encoder errors and cam switching events. A built-in self-test routine verifies hardware integrity during startup. Furthermore, the module includes a watchdog timer for fail-safe operation.
