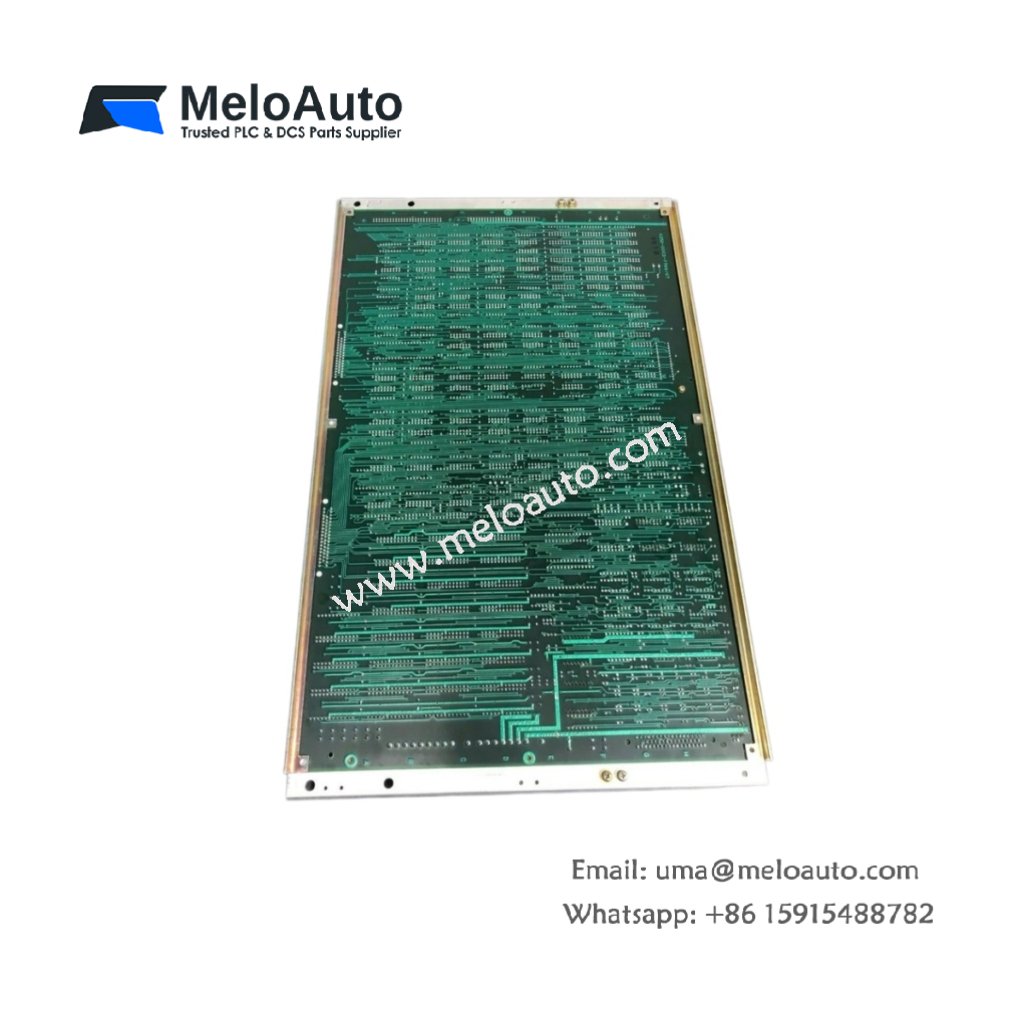

GE A20B-0003-074/12F CPU Board

This CPU board serves as the main processing unit for GE Fanuc CNC systems. The GE A20B-0003-074/12F executes part programs and axis control algorithms with high precision. A 32-bit processor handles all interpolation, servo control, and I/O management tasks. Consequently, machine tool builders can rely on this board for demanding cutting and milling applications.

Technical Specifications of the CPU Board

The GE A20B-0003-074/12F measures 280 mm in width and 220 mm in height. Its depth reaches 35 mm including all connectors and mounting hardware. The board weighs approximately 0.88 kg including all electronic components. Three front panel LEDs indicate power status, processor run, and fault conditions. The board features two 50-pin ribbon cable headers for axis control interfaces. This design stores minimal energy in small decoupling capacitors only. Therefore, the board contains no batteries or large energy storage elements.

Parameter	Specification
Brand	GE Fanuc
Full Model	A20B-0003-074/12F
Category	CPU Board (CNC Main Processor)
Dimensions (W x H x D)	280 mm x 220 mm x 35 mm
Weight	Approximately 0.88 kg
Processor	32-bit CNC-specific
Program Memory	128 KB (part programs)
Controlled Axes	Up to 4 axes
Interpolation Types	Linear, circular, helical
Data Interfaces	RS-232, RS-422, I/O link
Status Indicators	3 front panel LEDs
Energy Storage	Minimal (decoupling only)
Supply Voltage	24V DC and 5V DC external

Functional Features and Motion Control

The GE A20B-0003-074/12F performs real-time interpolation for up to four axes simultaneously. You can store multiple part programs in onboard battery-backed SRAM. The board provides dedicated high-speed inputs for probe and skip signals. An integrated PLC processor handles auxiliary machine functions without extra hardware. Consequently, this CPU board delivers complete CNC control in a single module.

Installation and System Compatibility

You must install this CPU board into a dedicated CNC rack slot. The GE A20B-0003-074/12F requires careful alignment with backplane guide rails. Two ribbon cables connect the board to servo amplifier units for each axis. A front panel RS-232 port allows program uploads from external computers. Always verify firmware revision before replacing an existing board in a working CNC system.

Maintenance and Operational Benefits

Because the GE A20B-0003-074/12F uses a lithium battery for program retention, you must replace it every five years. The board stores all part programs and parameters during battery changes. A front panel battery LED alerts technicians when replacement becomes necessary. Consequently, proper battery maintenance ensures uninterrupted CNC operation for many years.
