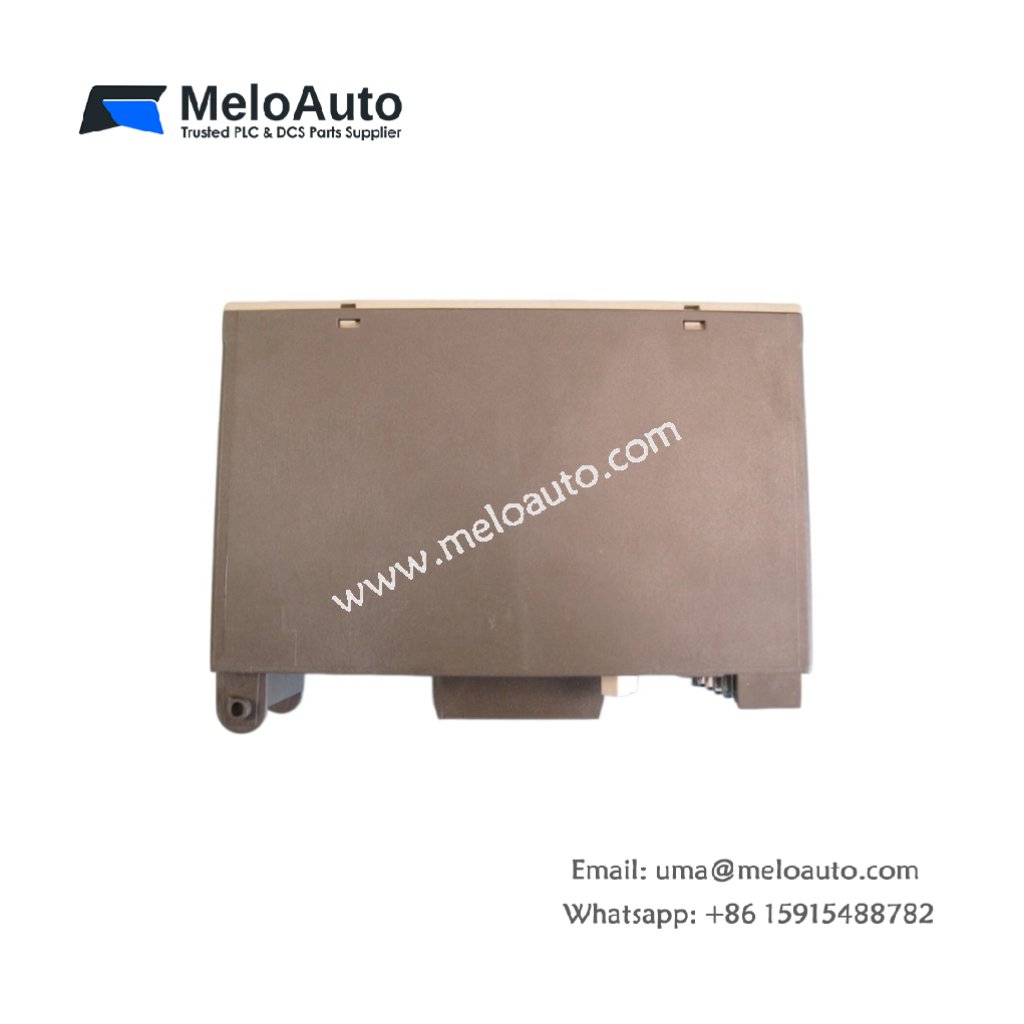

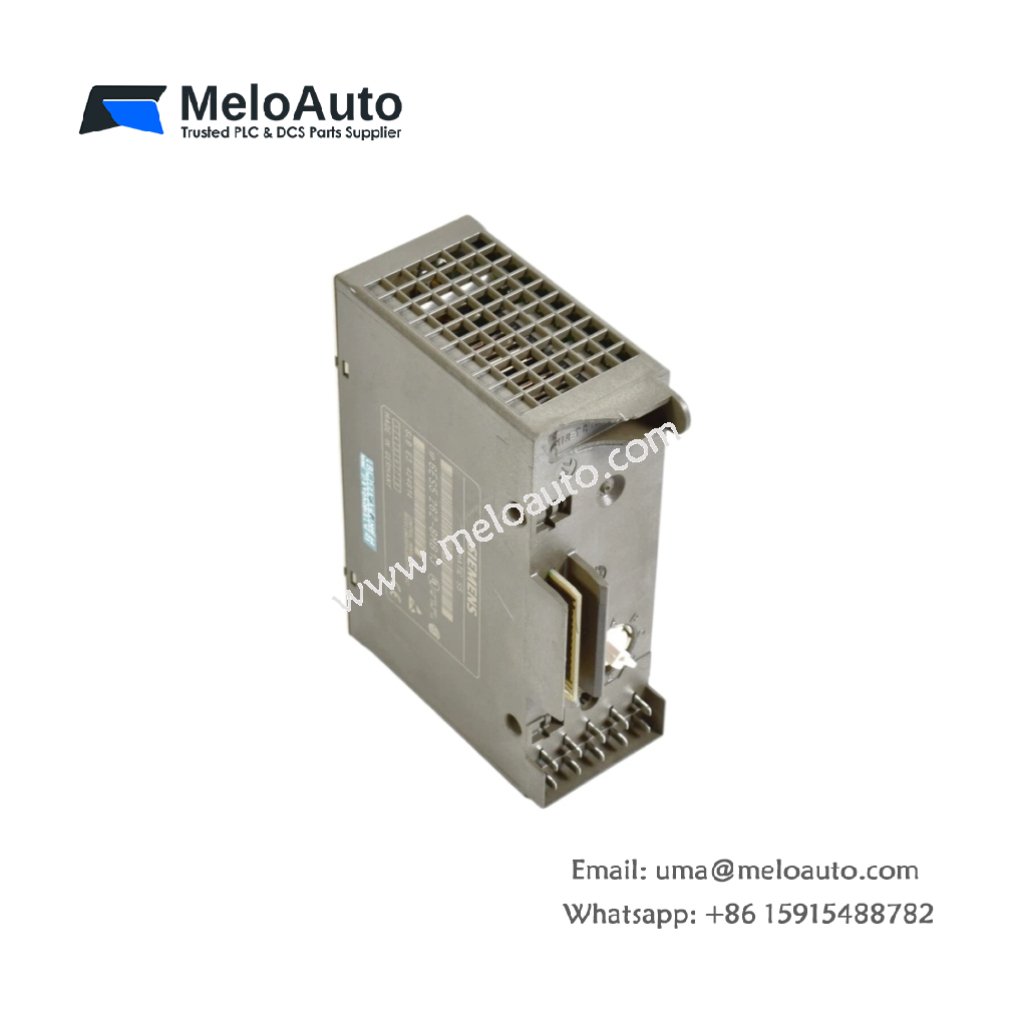

Siemens 6ES5262-8MB13 Closed-Loop Control

The 6ES5262-8MB13 provides closed-loop control for Siemens SIMATIC S5 systems. This module implements PID algorithms for process regulation tasks. Its rectangular frame measures 232 millimeters in width. The module height reaches 210 millimeters exactly. Depth stays at 155 millimeters. You will find this unit weighs approximately 0.95 kilograms. Therefore, installation requires sliding the unit into a standard S5 rack slot. Two 20-pin front connectors handle all field wiring connections.

Physical Layout and Connectors

Each front connector accepts wires up to 16 AWG gauge. The upper connector handles analog input signals. The lower connector provides analog output and status signals. Four status LEDs indicate power, active, and error conditions. Two guide rails secure the module firmly in the rack.

Technical Specifications

Parameter	Specification
Module Width	232 mm
Module Height	210 mm
Module Depth	155 mm
Unit Weight	0.95 kg
Control Loops	4 (independent)
Analog Inputs	4 (0–10V or 4–20mA)
Analog Outputs	4 (0–10V or 4–20mA)
Component Total	412 discrete parts
PID Algorithm	Software configurable
Sample Time	10 ms to 10 seconds
Internal Energy Storage	1200 µF capacitor bank
Control Accuracy	±0.5% of full scale
Resolution	12 bits (input and output)
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The 6ES5262-8MB13 contains exactly 412 discrete components inside. A 1200 microfarad capacitor bank filters noise from the internal power supply. Four independent signal conditioning circuits handle each analog input. Four separate output drivers generate the control signals. A dedicated 16-bit processor executes all PID calculations onboard. The module includes EEPROM for storing tuning parameters persistently.

Operational Performance

This closed-loop control module implements PID algorithms for four independent loops. It reads analog process values and generates control outputs. Moreover, the unit supports auto-tuning for quick loop setup. You can configure each loop for P, PI, PID, or PD control. The module includes bumpless transfer during manual-to-auto switching. Four LEDs provide clear visual indication of loop status. Consequently, you achieve precise process control for demanding applications. Siemens designed this module for SIMATIC S5 platform compatibility. Its rugged construction suits chemical and thermal processes.

In summary, the 6ES5262-8MB13 delivers reliable closed-loop control. Use this module for temperature, pressure, or flow regulation. It reduces CPU workload by handling PID calculations locally. Order this closed-loop control module for your Siemens S5 system.
