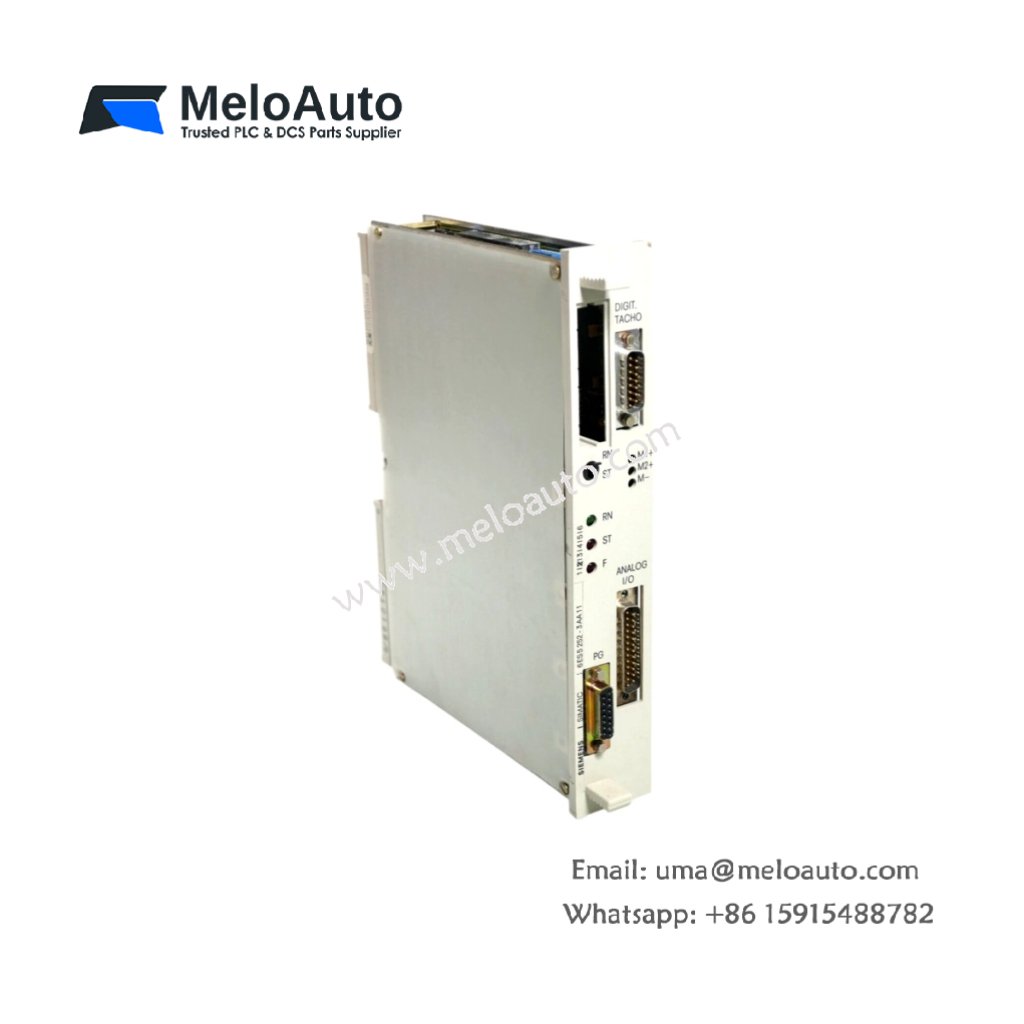

Siemens 6ES5252-3AA11 Closed-Loop Control Module

Technical Overview

The 6ES5252-3AA11 closed-loop control module provides precise PID regulation for SIMATIC S5 automation systems. This module handles single-loop control tasks, including temperature, pressure, and flow regulation. It features configurable setpoints, proportional gain, integral time, and derivative actions. The module accepts analog inputs from sensors and generates analog outputs to final control elements.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5252-3AA11
Product Type	Closed-Loop Control Module
Series	SIMATIC S5
Control Algorithm	PID with configurable parameters
Input Channels	Analog inputs (voltage/current)
Output Channels	Analog output for setpoint signal
Configuration	Parameterization via STEP 5 software
Approx. Weight	0.5 kg

PID Algorithm and Tuning Flexibility

The module executes a standard PID algorithm with adjustable P, I, and D parameters. Users can configure the control response to match the process dynamics. Furthermore, the module supports both manual and automatic tuning modes for optimal performance.

Process Input and Output Handling

The analog input channel accepts standard signals from transmitters and sensors. It provides a conditioned output signal to control valves, drives, or heaters. The module handles the full 0-10V or 4-20mA range, ensuring compatibility with common industrial process devices.

Integration and Commissioning

Users configure the 6ES5252-3AA11 using the STEP 5 programming environment. The module communicates with the central CPU via the backplane bus. Engineers can monitor and adjust the control parameters online for process optimization.
