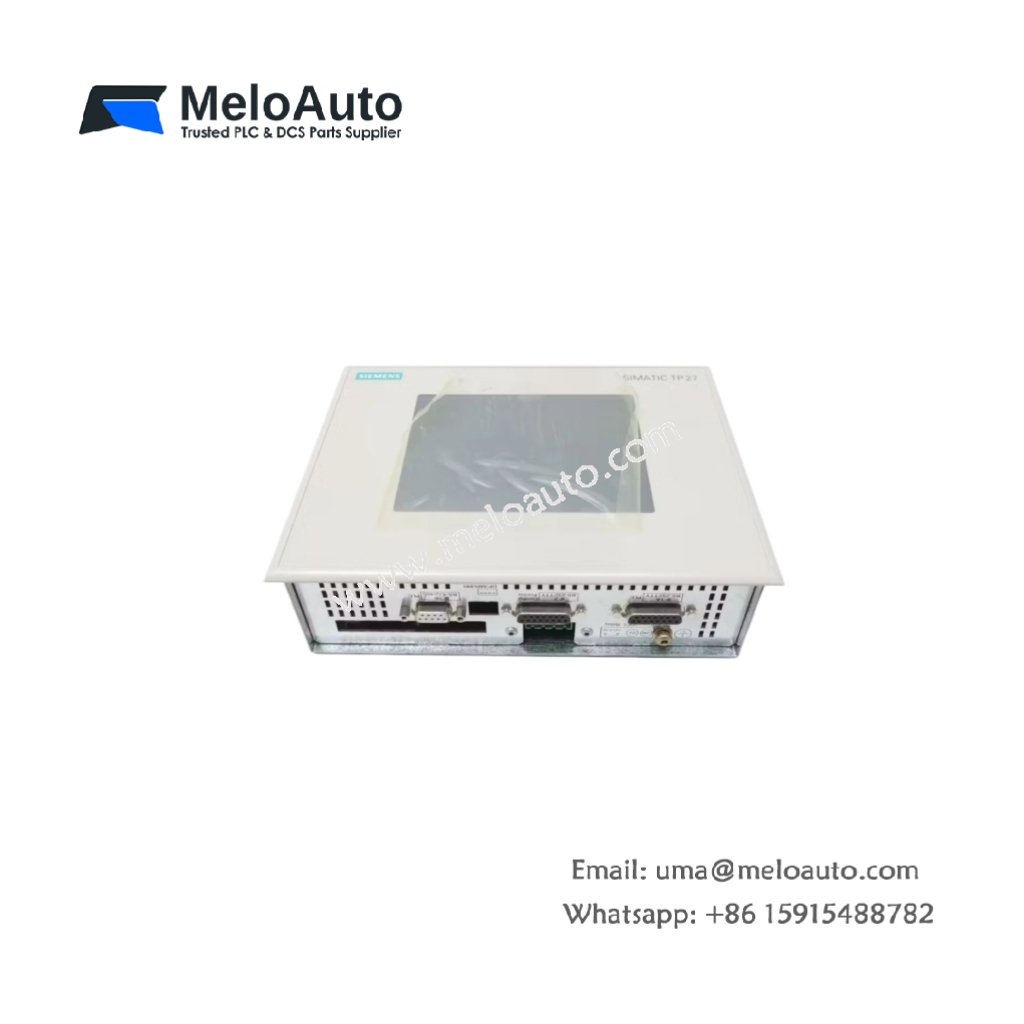

Siemens 6AV3627-1QK00-2AX0 HMI Touch Panel

Technical Overview

The 6AV3627-1QK00-2AX0 HMI touch panel provides a modern operator interface for SIMATIC S5 and S7 control systems. This panel features a color TFT display with resistive touch technology for intuitive user interaction. It supports multiple communication protocols including MPI, PROFIBUS DP, and RS-232 for flexible connectivity. The integrated flash memory stores user applications, recipes, and configuration data locally.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6AV3627-1QK00-2AX0
Product Type	HMI Touch Panel
Series	SIMATIC HMI
Display Type	Color TFT with resistive touch
Communication Interfaces	MPI, PROFIBUS DP, RS-232
Memory	Integrated flash memory for applications and data
Screen Size	12-inch (approx.)
Resolution	800 x 600 pixels (SVGA)
Power Supply	DC 24V
Protection Class	IP65 (front panel)
Approx. Weight	2.0 kg

Touch Interface and User Experience

The resistive touch screen responds reliably to gloved hands or stylus inputs. Users can navigate between screens, enter data, and acknowledge alarms with simple taps. The high-resolution display presents graphics, trends, and process values with clarity.

Connectivity and System Integration

This panel connects to SIMATIC controllers through MPI or PROFIBUS DP. The RS-232 interface provides additional connectivity for printers or barcode scanners. Engineers can configure the panel using Siemens WinCC or ProTool software.

Application Suitability

The 6AV3627-1QK00-2AX0 fits machine-level and process-control applications. It provides operators with real-time visibility into production processes. The IP65 front panel withstands dust, oil, and moisture in factory environments.
