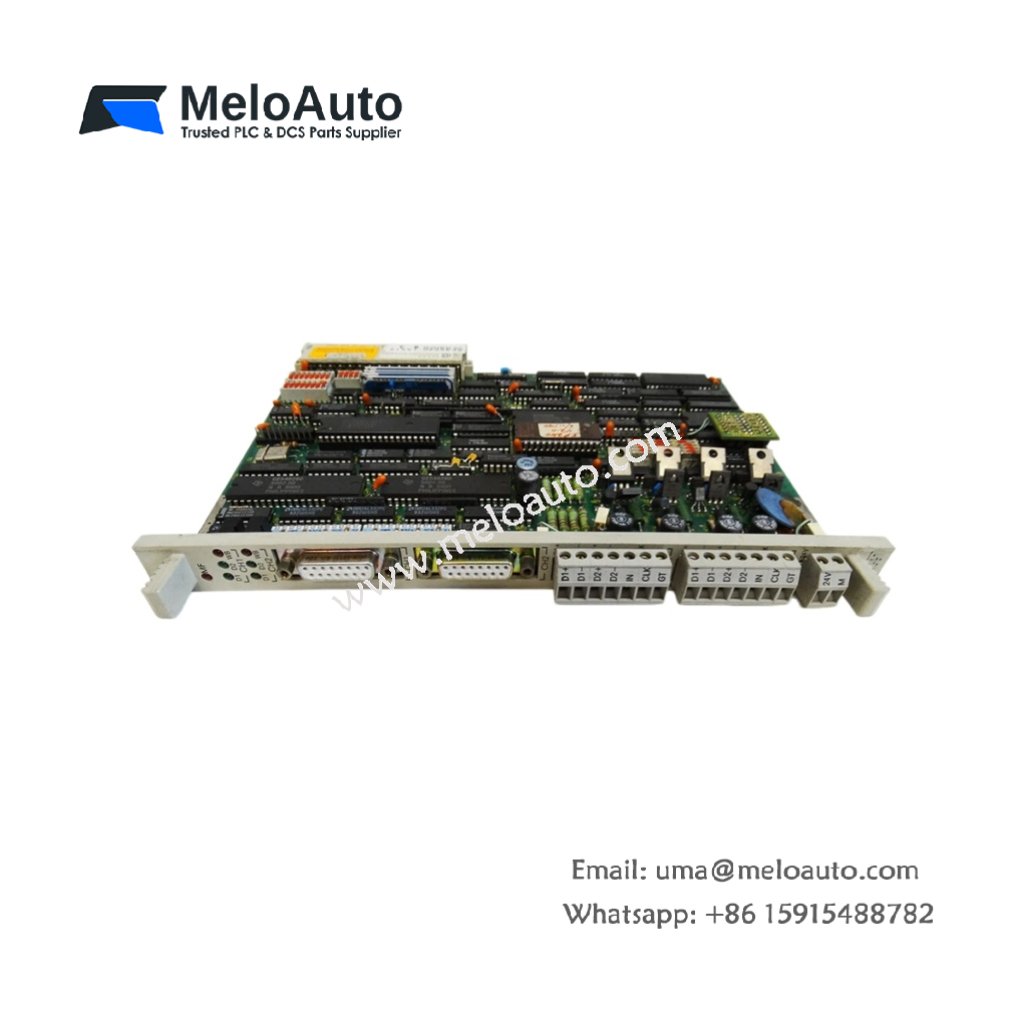

Siemens 6ES5240-1AA11 SIMATIC S5 Counter Module

High-Speed Counting for S5-100U Systems

This counter module handles rapid pulse signals from encoders and proximity switches. The Siemens 6ES5240-1AA11 provides two independent 24V DC up/down counters for your S5-100U rack. It counts input frequencies up to 10 kHz with exceptional accuracy. Each channel stores its current value in a dedicated register for CPU access. Consequently, this module delivers precise position tracking for conveyor systems and rotary encoders.

Input Configuration & Operational Modes

The Siemens 6ES5240-1AA11 accepts 24V DC signals from standard industrial sensors. You can configure each channel for up‑counting, down‑counting, or continuous operation. A built‑in gate function enables or disables counting based on external signals. The module also provides a zero‑tracking feature for repeatable positioning tasks. Two green LEDs indicate counter activity on each channel independently.

Installation & Field Wiring

You insert the Siemens 6ES5240-1AA11 into any available slot of your S5-100U rack. Connect your encoder or proximity switch to the designated input terminals. For bidirectional counting, wire both forward and reverse signal lines accordingly. The module shares no external connections with other counter channels. Therefore, each channel operates independently without signal interference.

Programming & System Integration

You address this counter module like a standard input/output card in your S5 program. The CPU reads the current count value from dedicated memory bytes. You can preset the counter to any starting value using a simple move instruction. An output bit energizes when the counter reaches its programmed limit. Consequently, this Siemens module integrates seamlessly into existing S5‑100U applications.
