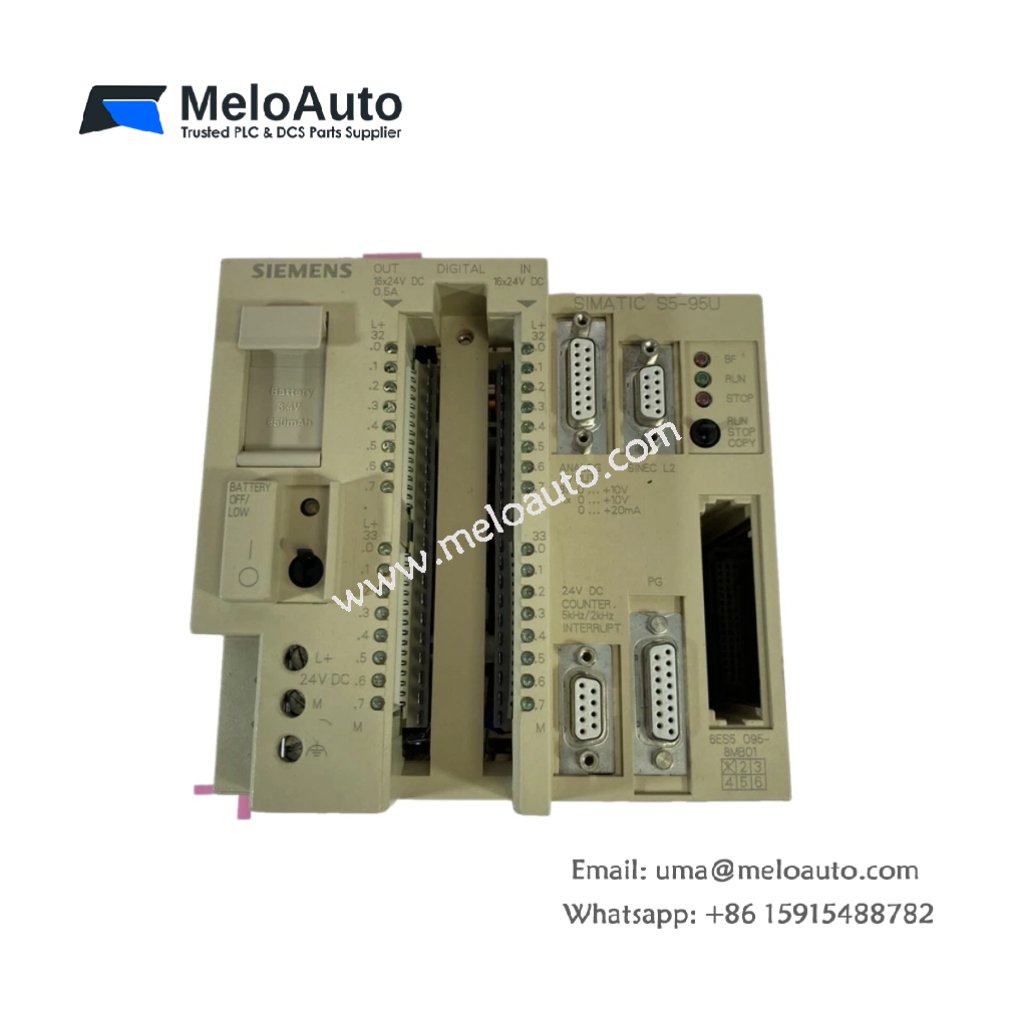

Siemens 6ES5095-8MB01 Compact Unit

Why This Compact Unit Serves as a Complete Small PLC

This compact unit integrates CPU, power supply, and I/O into one housing. You get an all-in-one Siemens 6ES5095-8MB01 for SIMATIC S5 applications. It handles small automation tasks without requiring a separate rack. Therefore, your system saves panel space and reduces component costs.

Technical Specifications and Physical Details

The Siemens 6ES5095-8MB01 includes ten digital inputs and six digital outputs. It features a built-in RS-232 port for programming and monitoring. This unit mounts directly onto a DIN rail. Its dimensions measure approximately 200 mm in width and 110 mm in height. The unit weighs around 0.85 kg for secure installation. This compact controller stores its program in battery-backed RAM. Consequently, your logic remains safe for several months without external power.

Below is the detailed breakdown of the hardware specifications.

Parameter	Specification
Product Model	6ES5095-8MB01
Product Type	Compact Unit
Brand	Siemens
Family	SIMATIC S5
Digital Inputs	10 channels
Digital Outputs	6 channels (24V DC, 0.5A)
Communication Port	1 x RS-232
Mounting Type	DIN rail
Dimensions (W x H)	Approx. 200 x 110 mm
Approx. Weight	0.85 kg
Power Supply	Integrated
Energy Storage	Battery-backed RAM
Component Count	Single integrated unit

Installation and Programming Notes

This compact unit connects directly to field sensors and actuators. You must supply external 24V DC power to the terminal block. The Siemens 6ES5095-8MB01 accepts STEP 5 programming language. Therefore, existing S5 logic transfers without major changes. Always replace the backup battery every two years. A depleted battery will cause complete program loss during a power outage.
