Space-Saving Control Solution

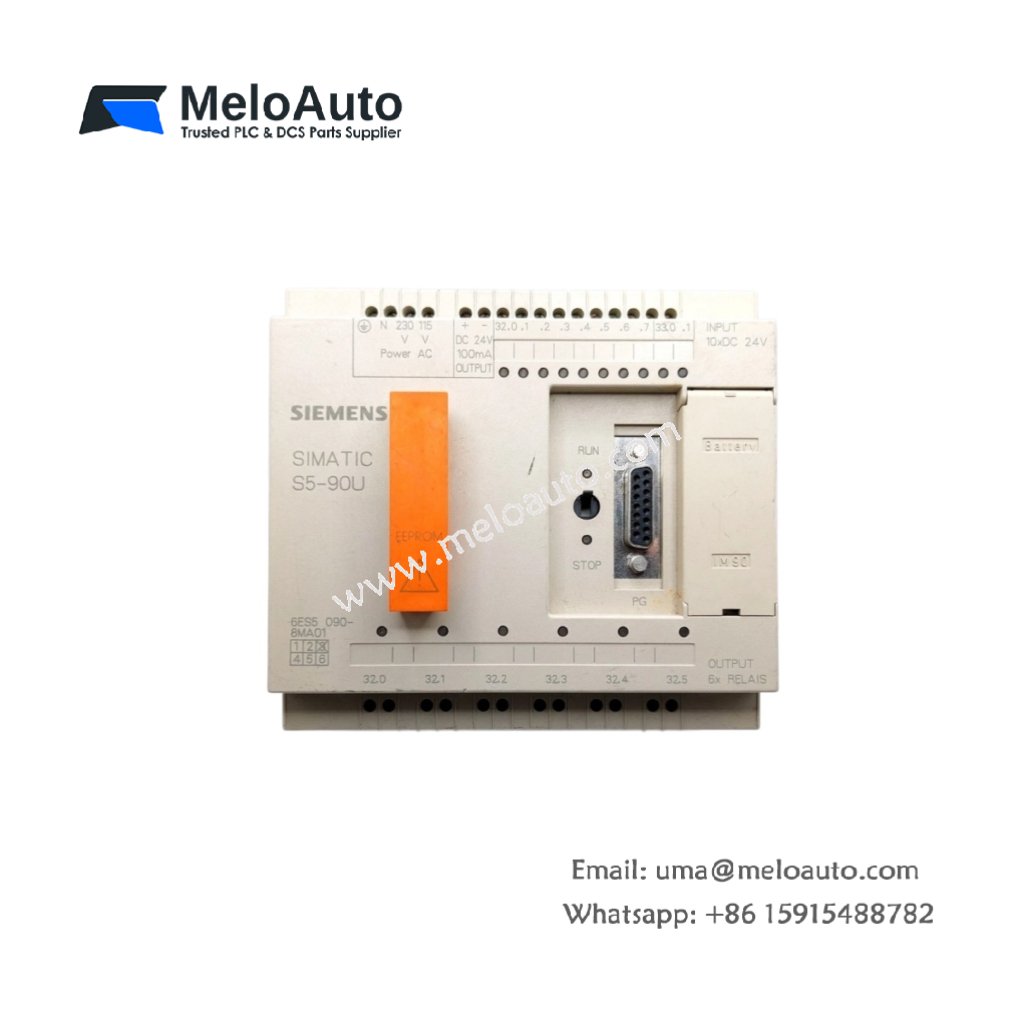

The 6ES5090-8MA01 functions as a compact programmable logic controller for the Siemens SIMATIC S5 series. This unit integrates CPU, power supply, and I/O into a single housing. It serves as a complete control solution for smaller automation applications. The PLC handles both discrete and analog signals effectively. Consequently, it offers an economical alternative to modular PLC systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Compact PLC |
| Part Number | 6ES5090-8MA01 |
| Integrated CPU | Yes (dedicated) |
| Program Memory | 4 KB RAM (battery-backed) |
| Data Memory | 1 KB RAM (battery-backed) |
| Digital Inputs | 8 (24 VDC) |
| Digital Outputs | 8 (24 VDC, 0.5 A) |
| Analog Inputs | 2 (0-10 VDC or 4-20 mA) |
| Communication | RS-232 (programming port) |
| Power Supply | 115/230 VAC (selectable) |
| Power Consumption | 50 VA (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 18.0 cm x 10.0 cm x 8.0 cm |
| Weight | 1.2 kg |
| Status Indicators | LEDs (power, run, fault) |
| Mounting | DIN rail or panel |
Functional Integration and Features
The 6ES5090-8MA01 combines basic control functions within a compact form factor. It provides sufficient I/O for small machines and simple processes. The PLC includes a built-in programming interface for easy configuration. Its limited expansion capability suits standalone applications. The unit features a battery-backed real-time clock for time-stamping events. Additionally, the PLC supports online program modification without stopping the process.
Application Suitability
This compact PLC suits small machines, simple conveyor controls, and basic process monitoring. The 6ES5090-8MA01 also applies to packaging equipment and small test stands. Its compact size fits tight spaces. Users can program the unit using the STEP 5 software environment. The PLC’s robust design ensures reliable operation in industrial conditions.
